SERVICESERVICE

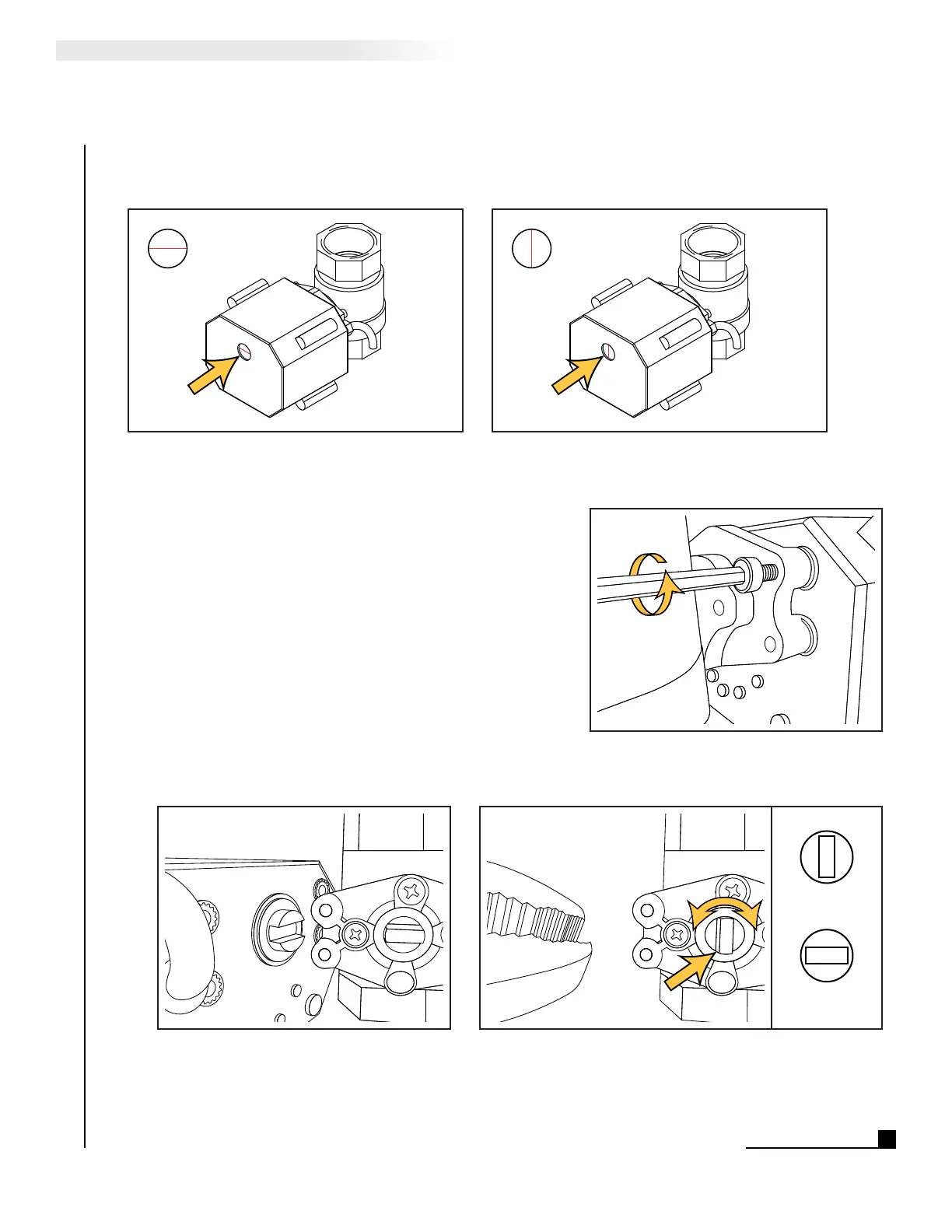

ELECTRIC DRAIN VALVE MANUAL OPERATION (P/N 117014)
(section end)
1. Remove four 2.5mm coil retaining allen screws (see Fig. 64).
2. Remove the coil from the valve body (see Fig. 65).
3. Using pliers, turn valve body key to adjust valve (see Fig. 66).
4. Reassemble in reverse order.
VALVE POSITION SIGHT WINDOW
STEPS TO ADJUST VALVE POSITION
Valve Closed Valve Open
Fig. 62 - Valve position sight window closed Fig. 63 - Valve position sight window open
Fig. 64 - Remove allen screws
OPEN
CLOSED
Fig. 65 - Remove coil from the valve body
Valve Body
Coil
Fig. 66 - Turn valve body key with pliers
Valve Body
48
