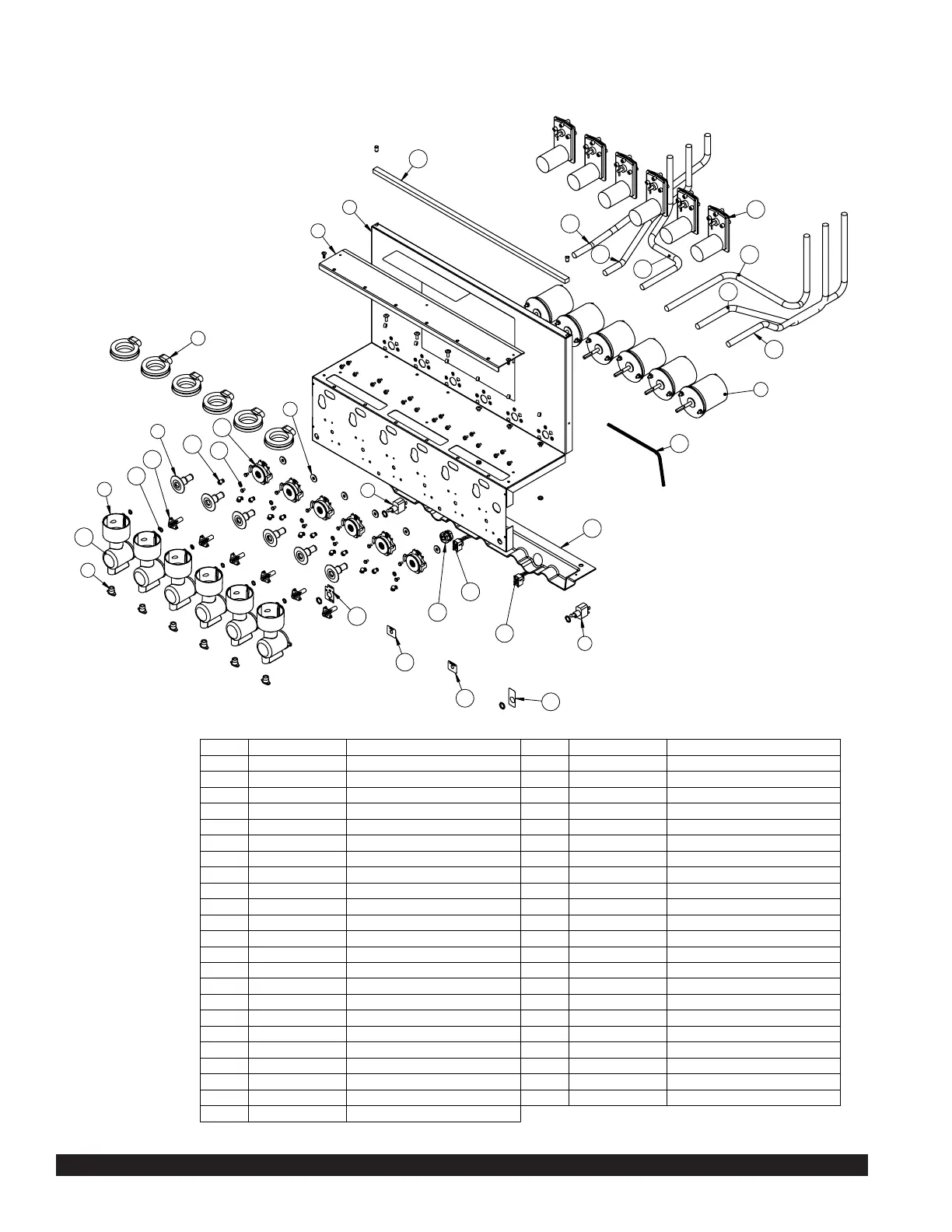

Page 48 Crathco® Powdered Beverage Dispensers
22
21
2
19
32
13
31
10
25
1
26
7
28
11
3
5
14
33
3
18
35
4
29
34
30
6
20
8
PIC6 Manual-3.drw
17
62863, Hopper Brkt Assy PIC6
9
15
36
37
Funnel Whipper
ITEM NO. PART NO. DESCRIPTION
1 62864 Bracket, Hopper PIC6
2 61461 Button, Restrictor
3 61847 Switch,Toggle-Spst
4 61226 FTG, FUNNEL DISCONNECT
5 61221
6 61255 SHROUD
7 62879 Plate, Cover Plenum,
8 61116-01-1 Motor, Whipper 120V
9 61334 Washer, Slinger
10 61523 Whipper Base Assy
11 60741 O-Ring,2-014
12 07023-04 Screw,6-32x1/4 PH BD M/S SS
13 61339 8-32 UNF S.S. ACORN NUT
14 62395 Chamber, Whipper
15 61127 O-RING,.335 ID X .079 CS
16 61847-1 Nut, Switch, for 61847
17 61242 Label, Flush On/Off
18 61247 Label, Power On Light PIC
19 61248 Label, Ready Light PIC
20 61889 Label, PWR ON/OFF PIC
21 63496 Lamp Red w/ Leads
22 63495 Lamp Green w/ Leads
23 60381 Rivnut, 6-32 ALS4-632-80
ITEM NO. PART NO. DESCRIPTION
24 61250 Washer, #8 Split Lock
25 62891 Harness, Hopper Brkt PIC5/6
26 61159-23.5 Seal, Closed Cell Foam 16.5"
27 61848 Decal, Do Not Pour
28 62865 Plenum, Steam PIC6
29 71155-16-PIC6-2 Tubing, Silicone, 5/16x1/2
30 71155-16-PIC6-L Tubing, Silicone 5/16x1/2
31 61618 MOTOR,24VDC, 145RPM
32 61458 Blade, Whipper
33 61480 STRAIN RELIEF,HEYCO
34 71155-16-PIC6-3 Tubing, Silicone, 5/16x1/2
35 71155-16-PIC6-4 Tubing, Silicone, 5/16x1/2
36 71155-16-PIC6-5 Tubing, Silicone, 5/16x1/2
37 71155-16-PIC6-6 Tubing, Silicone, 5/16x1/2
38 86877 SCRW, #8X3/8 PH PN T/B ZNC/GN
39 61353 Screw,8-32 X 1/4" PH PN 18-8 SS
40 61228 Spacer, NYL HEY #334 SPU98
41 61236 SCRW, 10-32X1/2 PH TR SS
42 63068 NUT, 10-32 ESNA SS
43 61847-2 Nut Round for Switch
44 61452 Decal, Cleaning Instr 5# HPR
45 61264
PLUG, 3/16 HOLE FAS
PIC 6 Hopper Bracket Assembly
(Part # 62863)
