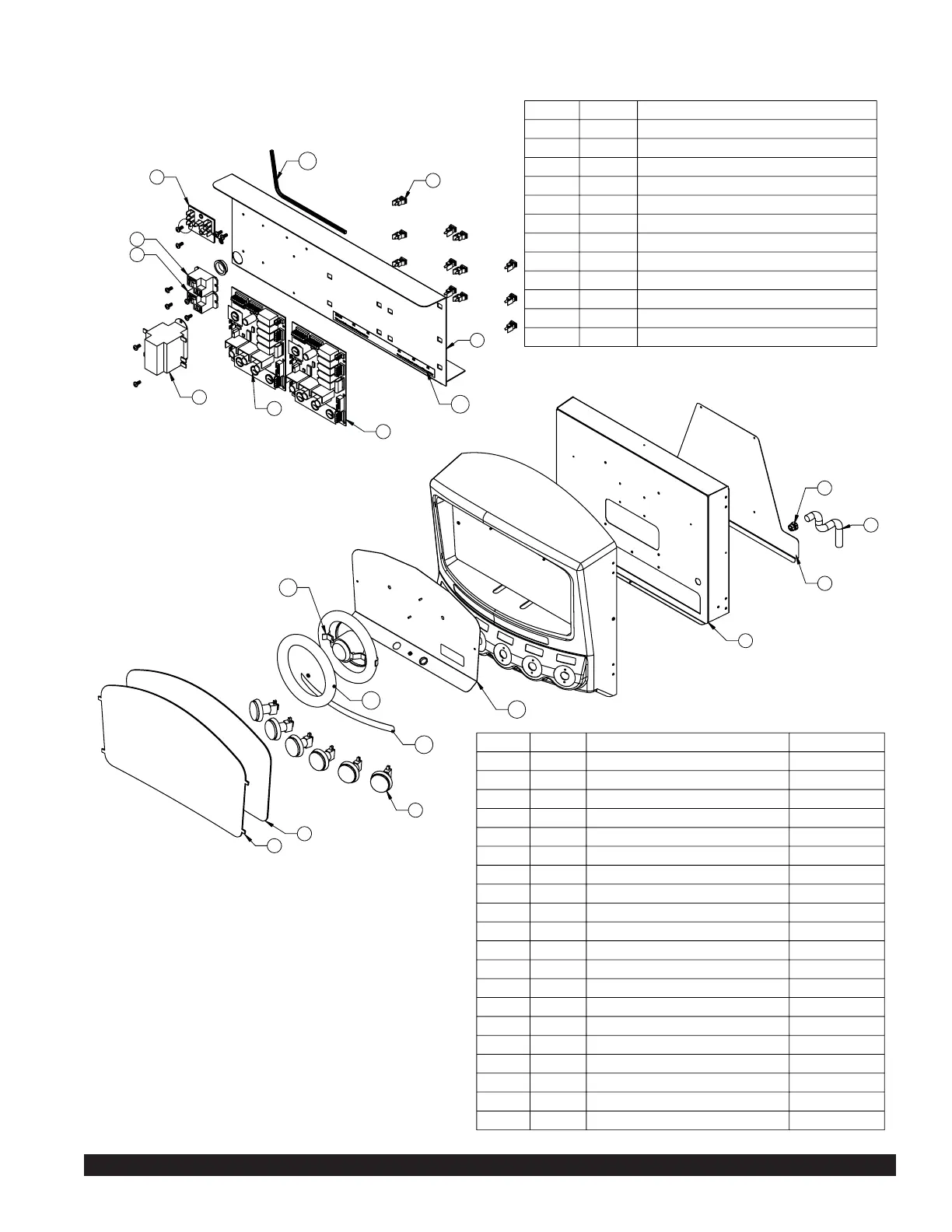

PIC6 Manual-2
rev. REL
MJB, 1/14/04
ECN1888
62875 - Door Assembly PIC6
9
8
4
15
10
11
2
7
3
1
19
ITEM NO. PART NO. DESCRIPTION CONFIG DESCR
1 62888 Door Brkt Wldmt, PIC 6
2 62916 Panel, Rear Door Cvr, PIC6
3 61479 STRAIN RELIEF,HEYCO
4 62915 Switch, Dispns PIC5/6 No Wafer
5 61303 Screw, #8 x 3/8 black trilobe
6 62910 Merchandiser PIC6 Plastic
7 62889 Harness, Door PIC5/6
8 62919 Graphic PIC6
9 62920 Graphic PIC6 Cover
10 62973 Bulb Circle 22W
11 62936 Bracket, Circle Lamp PIC6
12 61272 SCRW, #8X3/8 PH PN T/B ZNC/GN
13 61187 Washer, #8 Star Lock
14 70635 TERMINAL, 1/4-032 X 45DEG TAB
15 62856 Decal, 2/3 Full PIC5/6
16 60394 Bushing,Snap-7/8"OD x 3/4"
17 71129 NUT, 8-32 KEPS SS
18 70426 TERM, 1/4F INS QD 18-22 GA
19 62937 Fixture,Circle Fluor w Lamp 22W
20 61327 Decal, Light Replace
7
6
11
3
3
5
4
4
2
1
12
62848 - Control Bracket Assy PIC6
ITEM NO. PART NO. DESCRIPTION
1 62849 Bracket, Control Mtg PIC5 No Display
2 61338 Terminal Board
3 61800 Controller,Pic 3 Portion
4 61131 Relay,12 vdc Coil
5 61481 Transformer,40VA 24/12S
6 61266 STANDOFF, RVRS EDGEMOUNT
7 10073 Label, Ground Symbol
8 60394 Bushing,Snap-7/8"OD x 3/4"
9 61303 Screw, #8 x 3/8 black trilobe
10 61272 SCRW, #8X3/8 PH PN T/B ZNC/GN
11 62890 Harness, Chassis PIC5/6
12 62928 DECAL, CONTROLLER PIC5/6
Crathco® Powdered Beverage Dispensers Page 47
PIC 5/6 Control Bracket Assembly
(Part # 62848)
PIC 6 Door Assembly
(Part # 62875)
