Instruction Manual |

13

Installation

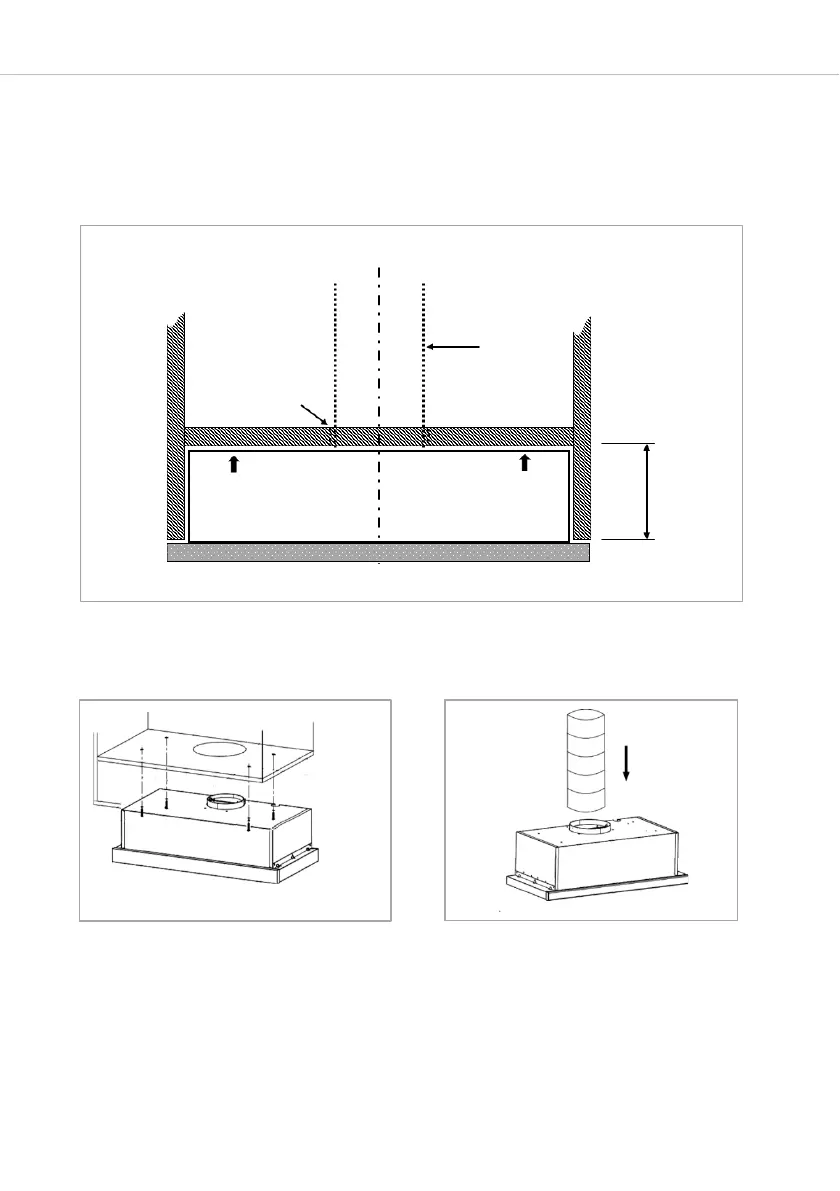

This extractor is designed to be mounted into a bridging unit or similar and

screwed directly to a supporting shelf, with its lower surface sitting 140mm

from the bottom of the unit, as shown in the following image:

Refer to figures 8 and 9 for the positions of the mounting holes on the

extractor.

Important – Ensure that the screws used to secure the unit to the

supporting shelf are suitable for your installation. The length of the screws

used should be less than the thickness of the supporting shelf; We

recommend 15mm length for a shelf thickness of 15mm, and 20mm length

for an 18mm+ shelf.

Fig 10.

Fig 9.

Fig 8.

138 - 140mm

Ducting

Dia. 120mm

Screws x 2

Screws x 2

Hole Diameter

130 - 150 mm
