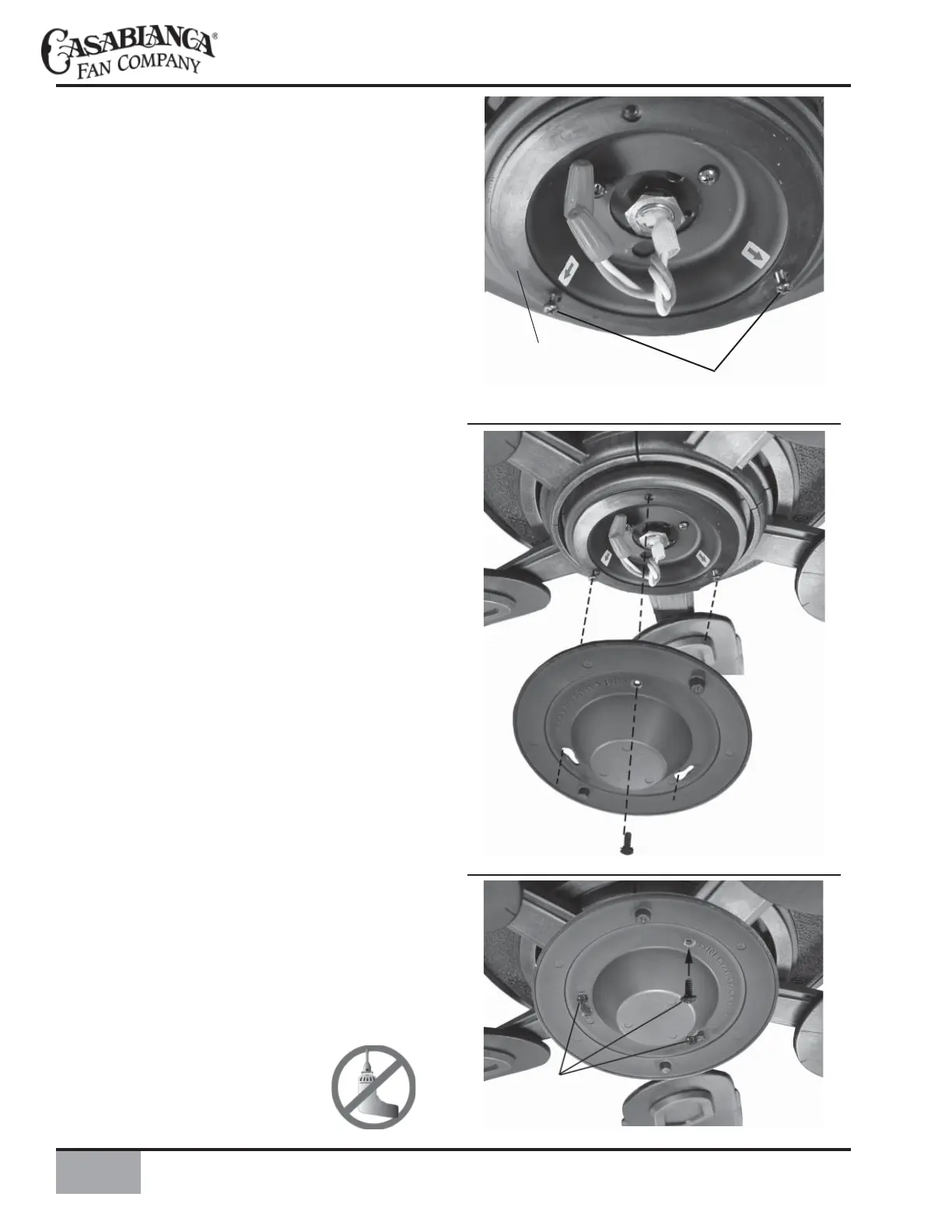

Step 14a. Locate the two RED ARROWS printed
on the WHITE sticker as shown in Figure #4. Using
the screwdriver provided, attach the switch housing
plate gasket to the switch housing plate by screwing
in two of the three screws shown in Figure #4 part
way only.
Step 14b.
Carefully tuck the wires so they do not
get pinched, then align the two key holes on the
adapter plate with the two screws that were installed
onto the switch housing plate as shown in Figure
#5. Place the adapter plate over the two screws and
rotate the adapter plate clockwise so that the two
screws are holding the adapter plate to the bottom
of the fan as shown in Figures #4 and #6.
Step 14c. Screw in the last of the three screws
holding the adapter plate to the bottom of the fan
as shown in Figure #6 and tighten all three screws
with the screwdriver.
Figure #4
Figure #5
2 SCREWS
Figure #6
SWITCH HOUSING
PLATE GASKET
TIGHTEN 3
SCREWS
