44
ENG
iJW +0300103EN rel. 1.1 - 31.03.2025
Index

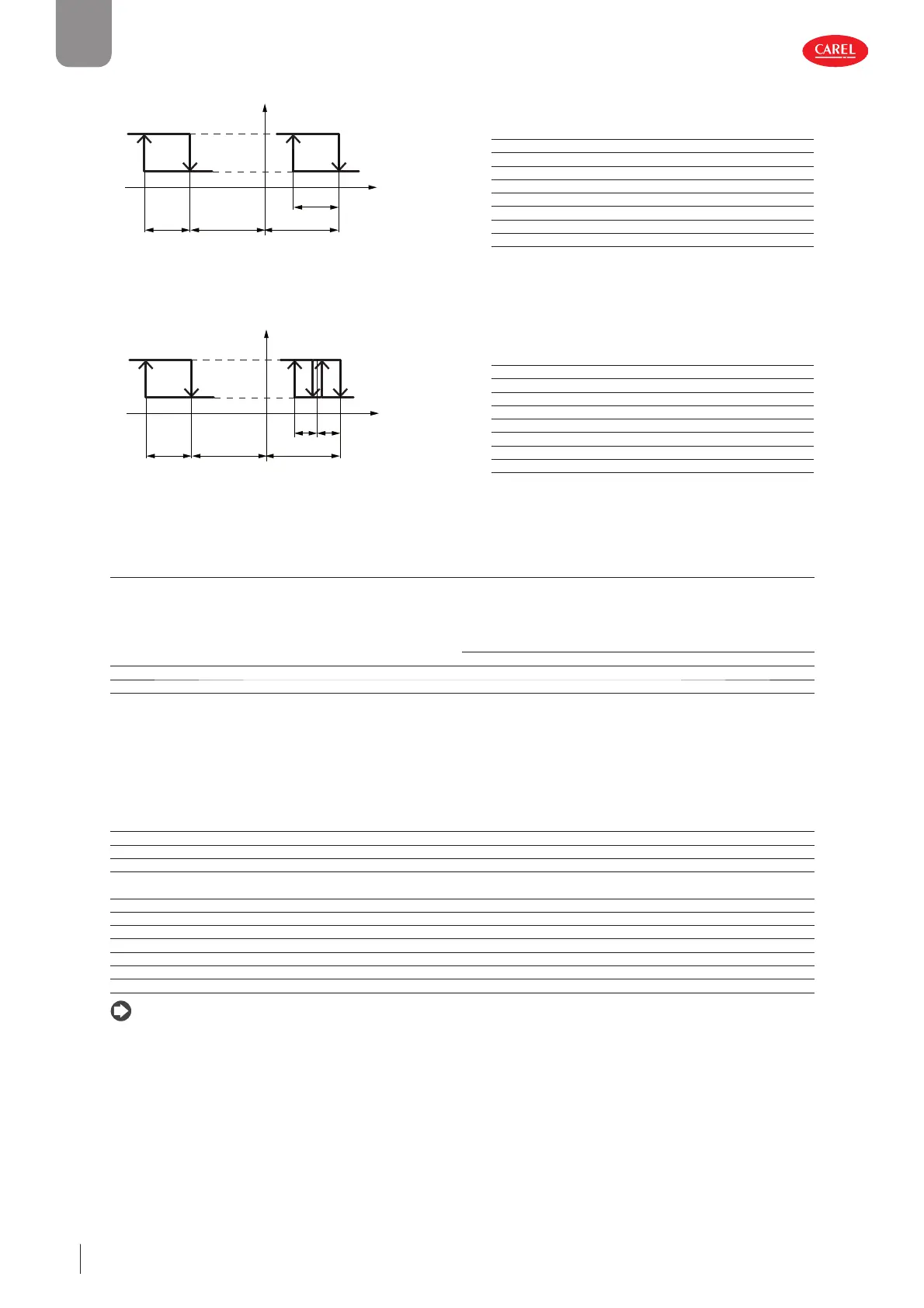

Reverse control in dead band without auxiliary compressor
300100_131_R01
ON
OFF
REV CMP
rr rn/2
St
rd
rn/2
Sreg
Ref. Description
St Set point
rd Diff erential
rn Dead band
rr Reverse output diff erential
Sreg Control probe
CMP Compressor request
REV Reverse output request in dead band
COMP2 Auxiliary compressor request (par. DOk or par. DOy)
Fig. 7.i
Reverse control in dead band with auxiliary compressor
300100_153_R01
ON
OFF
REV CMPCMP2
rr rn/2
St
rd/2 rd/2
rn/2
Sreg
Ref. Description
St Set point
rd Diff erential
rn Dead band
rr Reverse output diff erential
Sreg Control probe
CMP Compressor request
REV Reverse output request in dead band
COMP2 Auxiliary compressor request (par. DOk or par. DOy)
Fig. 7.j
7.7 Night-time operation
During night-time operation there may be a decrease in thermal load. To avoid excessively low temperatures and high energy
consumption, the set point needs to be increased at night by setting parameter r4. Parameter r6a can then be used to select the
virtual probe Sv or air on probe Sr as the control probe.
Daytime operation
Night-time operation
r6a = 0 r6a = 1
Control probe Sv Sv Sr
Set point St St + r4 St + r4
Tab. 7.h
Night-time operation can be activated by a digital input confi gured as a curtain switch, on the user interface, from the supervisor
or time bands, with diff erent priorities. If the digital input has been selected, this has the highest priority and the other actions
are ignored, while if the digital input has not been selected, the other actions have the same priority and the last one controls
the action.
To set the time bands, see “Setting the date/time and time bands”.
Par. Description Def Min Max UOM User User terminal
DIG Assign curtain switch digital input - see DIA ... 0 4 - S NO
H8 Output switched with time bands: 0 = Light; 1 = AUX. 0 0 1 - S NO
r4 Automatic night set point variation 0 -50/-90 50/90 °C/°F S NO
r6a Control probe for night-time operation:
0 = virtual probe Sv; 1 = intake temperature probe Sr
001-SNO
tS1..8-d Start time band 1 to 8 day: day - see (td1...8-d) 0 0 11 day U NO
tS1..8-hh Start time band 1 to 8 day: hours 0 0 23 hours U NO
tS1..8-mm Start time band 1 to 8 day: minutes 0 0 59 minutes U NO
td1..8-time Start time band 1 to 8: type of time data for Applica 00:00:00 00:00:00 23:59:59 - U NO
tE1..8-d End time band 1 to 8 day: day - see (td1...8-d) 0 0 11 day U NO
tE1..8-hh End time band 1 to 8 day: hours 0 0 23 hours U NO
tE1..8-mm End time band 1 to 8 day: minutes 0 0 59 minutes U NO
Notice for HACCP: verify that modifi cation of the night-time set point (parameter /4) is permitted by site HACCP procedures.
If required, obtain the required authorisation and record the changes.
