Instruction manual DI63340
Please keep this instruction manual for future reference
A
Counter
Front
Drainpipe
NOTE
Thet
op of thehose
must be less than
1000mm.
40mm
B
Tension adjustment
of the door spring
Figure5
Tension adjustment of the door spring
●
Connection of drain hoses
●
The door springs are set at the factory to the proper tension for the outer door.
when the aesthetic door panel is installed, you will have to adjust the door spring tension.
Rotate the adjusting screw to drive the adjuster to strain or relax the steel cable
(see figure 5).
Door spring tension is correct when
the door remains horizontal in the
fully opened position,yet rises
to a close with the slight lift of a
finger.
21
Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to
avoid bending or crimping it. The top of the hose must be less than 1000mm.
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
1000mm.
φ 40mm
B

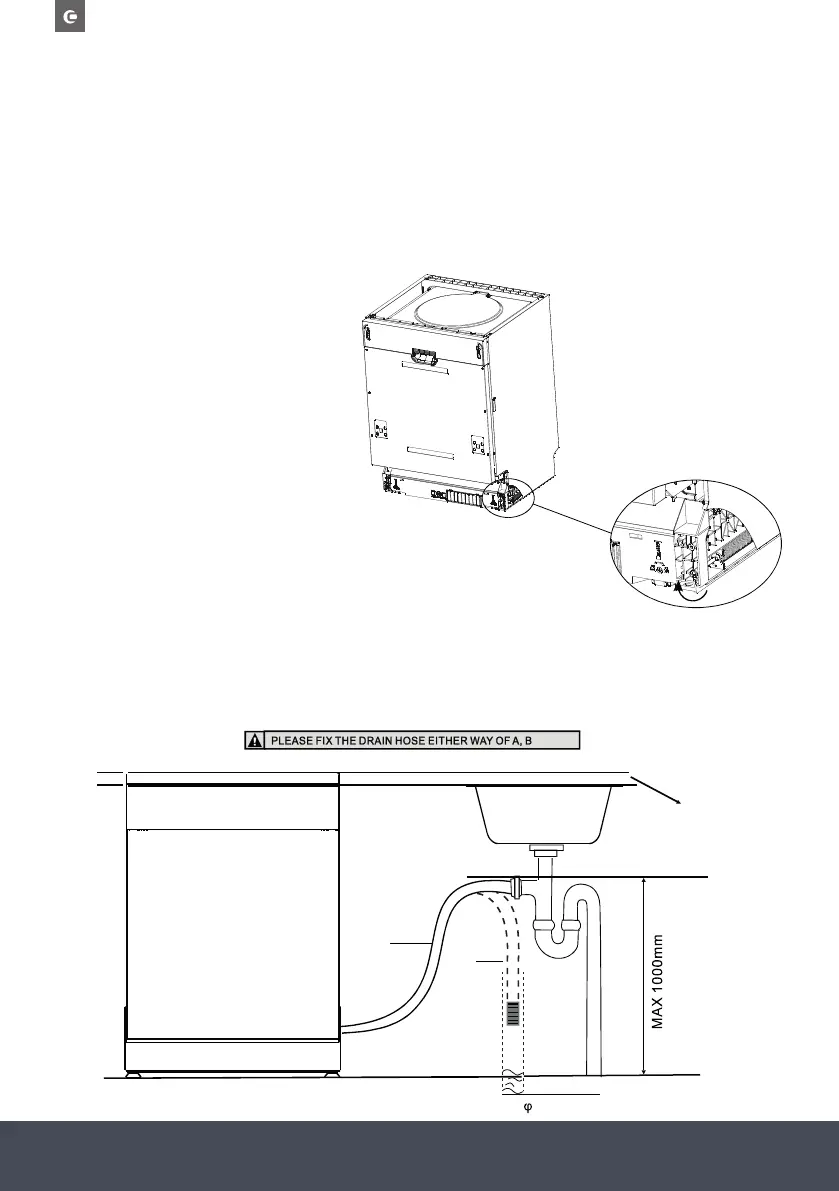

TENSION ADJUSTMENT OF THE DOOR SPRING
The door springs are set at the factory to the proper tension for the outer door. When the aesthetic
door panel is installed, you will have to adjust the door spring tension. Rotate the adjusting screw
todrivetheadjustertostrainorrelaxthesteelcable[seegure5].
Door spring tension is correct when
the door remains horizontal in the fully
opened position, yet rises to a close with
theslightliftofanger.
NOTE:
It is important to correctly adjust the
door tension to ensure the door does
not open too far at the end of the cycle.
CONNECTION OF DRAIN HOSES
Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the
sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.
Tension adjustment
of the door spring
【】Figure5
Tension adjustment of the door spring
●
Connection of drain hoses
●
The door springs are set at the factory to the proper tension for the outer door.
when the aesthetic door panel is installed, you will have to adjust the door spring tension.
Rotate the adjusting screw to drive the adjuster to strain or relax the steel cable
(see figure 5).
Door spring tension is correct when
the door remains horizontal in the
fully opened position,yet rises
to a close with the slight lift of a
finger.
21
Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to
avoid bending or crimping it. The top of the hose must be less than 1000mm.
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
1000mm.
φ 40mm
B
FIGURE 5
Tension adjustment of the door spring
