ORIFICE CHANGE - RANGETOP SECTIONS
(CONTINUED)
4. Using a 9/32” or 7mm socket or a nut-driver, insert something sticky like a piece of tape into the
socket to help prevent the orice from falling out as you extract it. CAREFULLY unscrew and
remove the orice. If the orice should fall through, you may have a very dicult time getting it
out again. (Fig. 3)
5. Installation is the reverse of this procedure. Do not use any pipe dope or sealant on the threads.
Install the new orice slowly to avoid cross-threading and damaging the threads. Consult the
table below for identication of orice sizes.
6. Reinstall the venturi tube, simmer retention ring, and burner cap. Use the alignment notches
and/or pins on the burner base to help with proper alignment. Incorrect alignment will produce
a potentially dangerous ame and poor burner performance.
7. Repeat this procedure for the remaining Sealed Burner orices.
RANGETOP ORIFICES
ALTITUDE
RANGE/RANGETOP
MODEL FAMILY
BURNER LOCATION BURNER TYPE NG LP
NG
ORIFICE
SIZE
LP
ORIFICE
SIZE
BURNER OUTPUT
(BTU/hr.)
ORIFICE INFO
Sea Level - 1999 . [600 m]
2000 - 6000 . [600 - 1800 m]
MCR, GSCR, GRT
FRONT SEALED - Med. 19000 19000 47 55
REAR SEALED - Med. 19000 19000 47 55
FRONT SEALED - Med. 19000 19000 49 56
REAR SEALED - Med. 19000 19000 49 56
BURNER CAP & RING
BASE SHIELD
BURNER BASE
SIMMER RETENTION RING
IGNITER
ORIFICE
(USE 9/32" OR 7mm SOCKET)

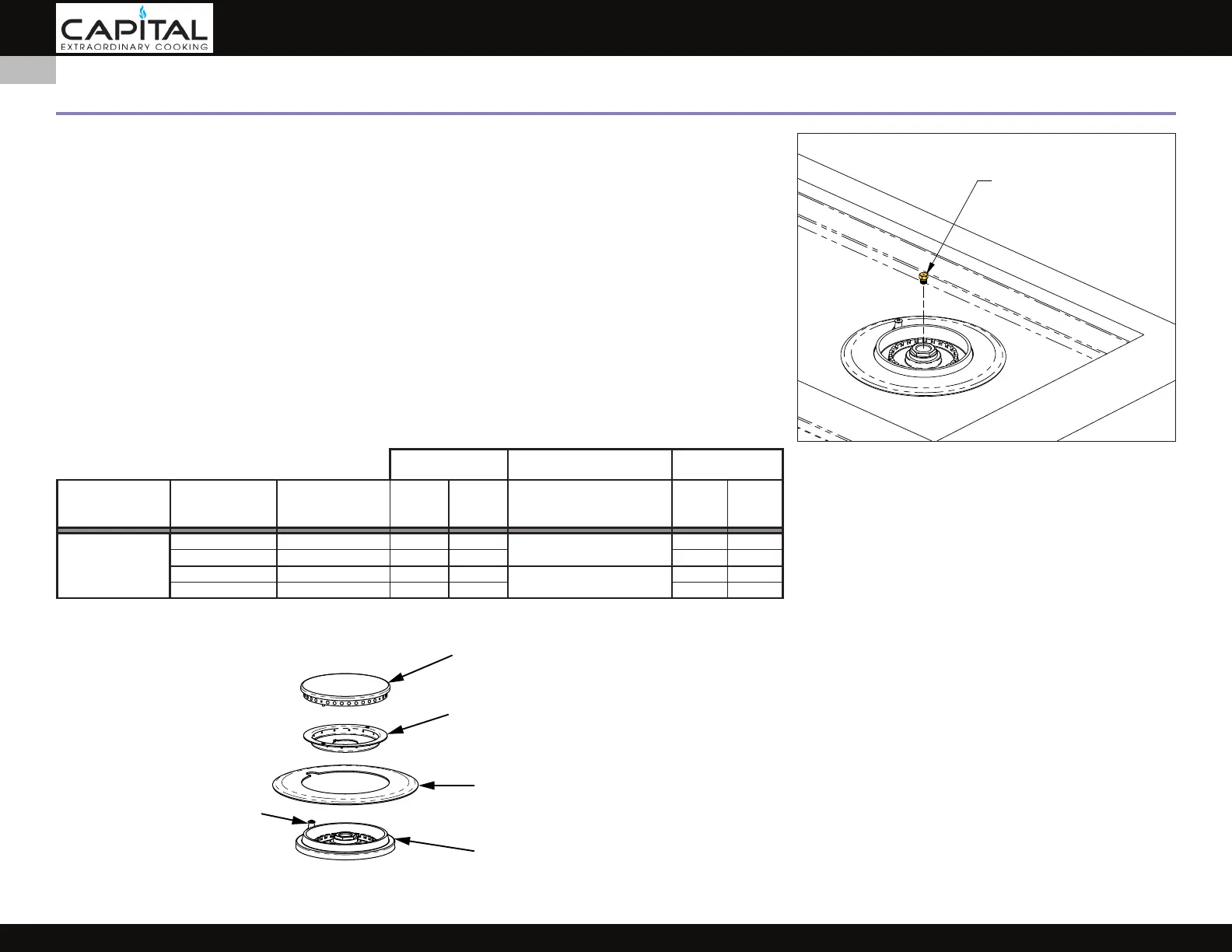

Fig. 3
© 2025 Capital Cooking
6
