19E
IRIS GAIN
M
A
M
A
M
A
F
Z
I
Auto/Manual Iris
Selecting Switch
Auto/Manual Zoom
Selecting Switch
Auto/Manual Focus
Selecting Switch
Before starting remote control operation
Set the Auto/manual selecting switches at the front
of the lens drive unit to "A" position.

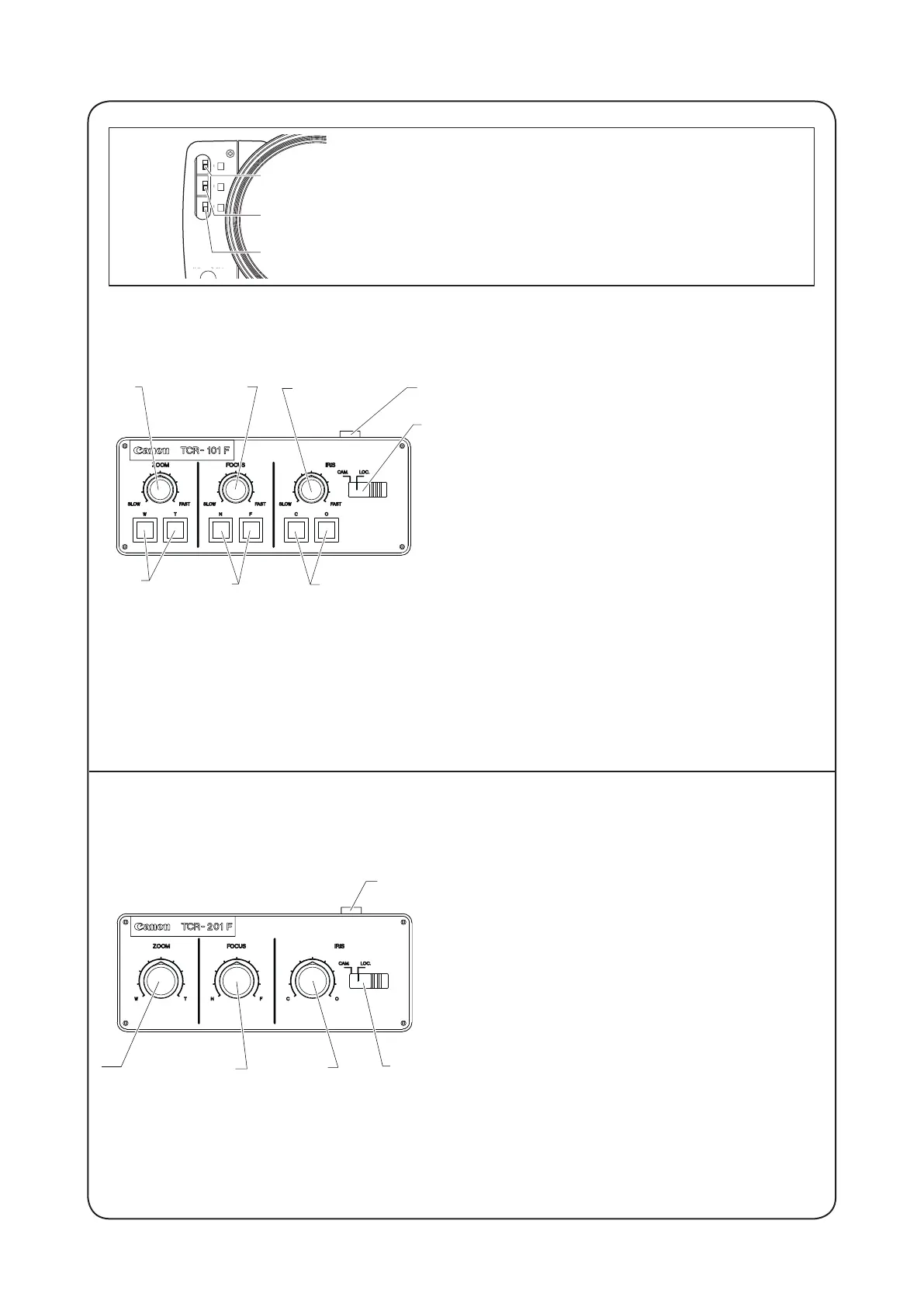

REMOTE CONTROL OPERATION
USING THE TCR-101F
Speed servo control type
① Zoom speed adjusting knob
② Focus speed adjusting knob
③ Iris speed adjusting knob
④ Remote control connector
⑤ Iris Camera/Local change-over switch
⑥ Zoom operation button
⑦ Focus operation button
⑧ Iris operation button
① Remote control connector
② Zoom operation knob
③ Focus operation knob
④ Iris
operation knob
⑤ Iris Camera/Local change-over switch
ZOOM OPERATION
Zoom remote operation is performed by pressing the
⑥
zoom operation button. Press "W" to zoom out; press
"T" to zoom in. Control the zoom speed with the
①
zoom
speed adjusting knob. Turn the knob counterclockwise to
decrease the zoom speed and turn it clockwise to increase.
FOCUS OPERATION
Focus remote operation is performed by pressing the
⑦
focus operation button. Press "N" to near side; press
"F" to far side. Control the focus speed with the
②
focus
speed adjusting knob. Turn the knob counterclockwise to
decrease the focus speed and turn it clockwise to increase.
IRIS OPERATION
The iris is operated by the auto iris from the camera or by
the TCR-101F by setting the
⑤
iris Camera/Local change-
over switch.
When the switch is set to "CAM", the iris is operated from
the camera. When the switch is set to "LOC.", the iris can
be operated from the TCR-101F.
Press "C" to close and press "O" to open. Control the iris
speed with the
③
iris speed adjusting knob. Turn the knob
counterclockwise to decrease the iris speed and turn it
clockwise to increase.
REMOTE CONTROL OPERATION
USING THE TCR-201F
Position servo control type
ZOOM OPERATION
Zoom remote operation is performed by turning the
②
zoom operation knob. Turn the knob counterclockwise to
"W" to set wide angle. Turn the knob clockwise to "T" to set
telephoto. The zoom speed changes in proportion to the
speed at which the
②
zoom opeartion knob is rotated.
FOCUS OPERATION
Focus remote operation is performed by turning the
③
focus operation knob. Turn the knob counterclockwise to
"N" to near side. Turn the knob clockwise to far side. The
focus speed changes in proportion to the speed at which
the
③
focus opeartion knob is rotated.
IRIS OPERATION
The iris is operated by the auto iris from the camera or
by the TCR-201F by setting the
⑤
iris Camera/Local
change-over switch. Set the switch to "CAM." to operate
the iris from the camera; set the switch "LOC." to operate
the iris from the TCR-201F. Turn the iris operation knob
counterclockwise to "C" to close. Turn the knob clockwise
to "O" to open. The iris speed changes in proportion to the
speed at which the
④
iris opeartion knob is rotated.
Ԙ
ԙ
Ԛ
ԛ
Ԝ
ԟ
Ԟ
ԝ
Ԙ
ԙ
Ԛ
Ԝ
ԛ
