16E
Press the macro button to unlock the macro ring.
While holding the button down, turn the macro ring at
the back side of the lens clockwise as viewed from the
camera side to allow macro shooting.
1 Set the lens to the widest angle by manual or
servo zoom operation.
2 Bring the object into focus by turning the macro
ring.
NOTE
Macro operation is also possible at any zoom
position other than the widest angle, but the
object distance increases.ject and bring into
focus by macro operation.
M
F.B
&
8.5
Macro Ring
Zoom Ring
Macro Button

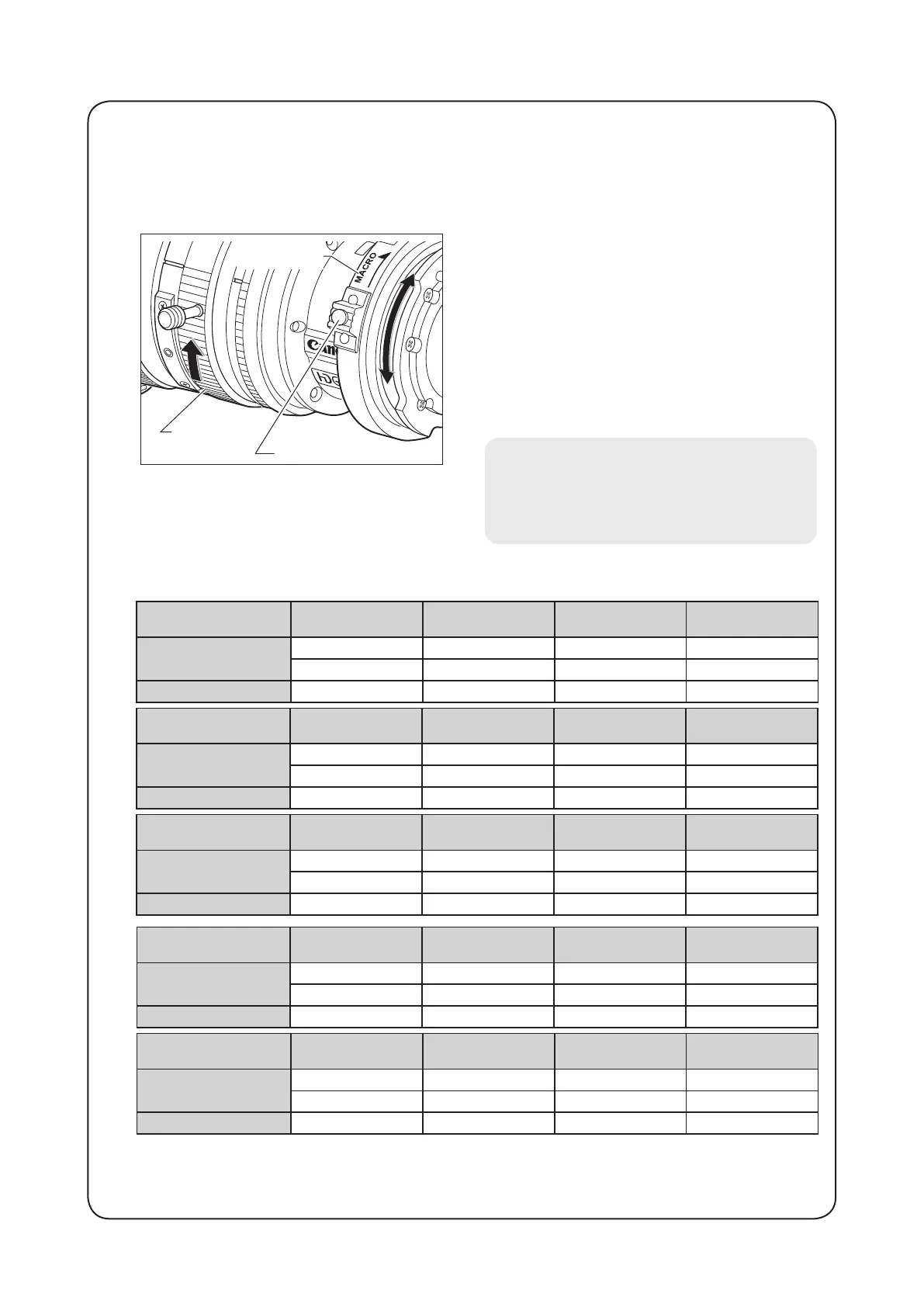

4-4. MACRO OPERATION
When the macro function of the lens is used, macro shooting is enabled. In macro shooting, the
object distance becomes shorter than the normal minimum object distance (M.O.D.).
The minimum object distance by macro operation for this lens is 10mm at widest angle.
↓
Object Distance and Dimensions in Macro Shooting
KJ20x8.5B KRSD A, KTS Zoom Position
Position of Macro
Ring or Button
*1
Minimum
Object Distance
Object Dimensions
Normal Operation
8.5 mm
*2
Locked 0.9m 92.5 x 52.0 cm
170 mm
*2
Locked 0.9m 4.8 x 2.7 cm
Macro Operation 8.5 mm
*2
Macro position 10mm 6.0 x 3.4 cm
KH20x6.4 KRSD, KTS Zoom Position
Position of Macro
Ring or Button
*1
Minimum
Object Distance
Object Dimensions
Normal Operation
6.4 mm
*2
Locked 0.9m 89.8 x 50.5 cm
128 mm
*2
Locked 0.9m 4.6 x 2.6 cm
Macro Operation 6.4 mm
*2
Macro position 10mm 6.3 x 3.4 cm
KT20x5B KRSD A, KTS Zoom Position
Position of Macro
Ring or Button
*1
Minimum
Object Distance
Object Dimensions
Normal Operation
5 mm
*2
Locked 0.9m 82.1 x 46.2 cm
100 mm
*2
Locked 0.9m 4.2 x 2.4 cm
Macro Operation 5 mm
*2
Macro position 10mm 5.8 x 3.3 cm
*1
：
The object distance is measured from the front lens vertex.
*2
：
Macro shooting is possible, regardless of where the macro ring is positioned between the locked position and
maximum macro rotated position. At the intervening positions, the above data vary.
KJ13x6B KRSD, KTS Zoom Position
Position of Macro
Ring or Button
*1
Minimum
Object Distance
Object Dimensions
Normal Operation
6 mm
*2
Locked 0.4m 74.3 x 41.8 cm
78 mm
*2
Locked 0.4m 5.4 x 3.0 cm
Macro Operation 6 mm
*2
Macro position 10mm 8.7 x 4.9 cm
KH13x4.5 KRSD, KTS Zoom Position
Position of Macro
Ring or Button
*1
Minimum
Object Distance
Object Dimensions
Normal Operation
4.5 mm
*2
Locked 0.4m 73.4 x 41.3 cm
59 mm
*2
Locked 0.4m 5.4 x 3.0 cm
Macro Operation 4.5 mm
*2
Macro position 10mm 8.6 x 4.8 cm
