AX & P_EXHAUST FANS_M_M0111 - 03/04/23 Page 4 of 4
200V 230V 460V 200V 230V 460V 200V 230V 460V
1/8 14(18)* 14(18)* 14 14(18)* 12 14(18)* 10 8 14
1/6 14(16)* 14(18)* 12 14(18)* 10 14(18)* 6 6 12
1/4 14 14(18)* 10 14(16)* 6 14 6 4 10
1/3 14 14(18)* 10 14(16)* 8 14 6 4 10
1/2 12 14(18)* 8 14 6 12 4 3 8
3/4 10 14(16)* 6 12 4 10 2 1 6
1 10 14(16)* 6 12 4 10 2 1 6
1 1/2 8 14 6 12 3 8 1 1/0 6
2 6 14 4 10 2 8 1/0 2/0 4
3 6 12 3 8 1/0 6 2/0 4/0 3
Motor HP
25 to 50 Feet 100 Feet 150 to 200 Feet
Table B Minimum Wire Sizes for Single-Phase Motors
NOTE:
• NEC Article 310-5 - *Minimum conductor size for general wiring at 115-440VAC is number 14AWG.
• Above wire sizes based on approximate 5% voltage drop during starting: copper conductors: and 75°C type THHW, THW, THWN, RH, RHW
insulation etc. For aluminum wire, increase two wire size steps minimum. See NEC Article 310 for ampacities of aluminum conductors.
• Type S, SO, SJ, SJO, etc. flexible cable wire sizes. See NEC article 400 for ampacity.
OPERATION
WARNING: VARIABLE SPEED FANS SHOULD HAVE THE MINIMUM SPEED SET TO
OPEN LOUVERS AT LEAST ONE INCH FOR PROPER MOTOR COOLING AND TO
PREVENT MOTOR FAILURE.
All fans are direct drive. Fans with variable speed motors can be operated as an energy efficient single speed fan or in
variable operation with the proper controller. As mentioned above two speed fans require a two speed control or 3 position
toggle switch to change from high speed to low and off.
MAINTENANCE
MOTORS ARE EQUIPPED WITH AUTOMATIC OVERLOAD PROTECTION AND MAY RESTART WITHOUT WARNING. ALWAYS
DISCONNECT FROM POWER BEFORE ATTEMPTING SERVICE. Motor, blade and louvers should be kept clean of any buildup to prevent
premature motor failure and to achieve proper performance. Automatic louvers should be kept operating freely. As with all mechanical equipment
scheduled inspections should include checking that all hardware is secure and blade set screws are tight.
ACCESSORIES
Canarm provides a complete line of manual and thermostatic controls. Canarm also offers wall mount exhaust shutter kits, replacement shutter
sets, and weather protection hoods.

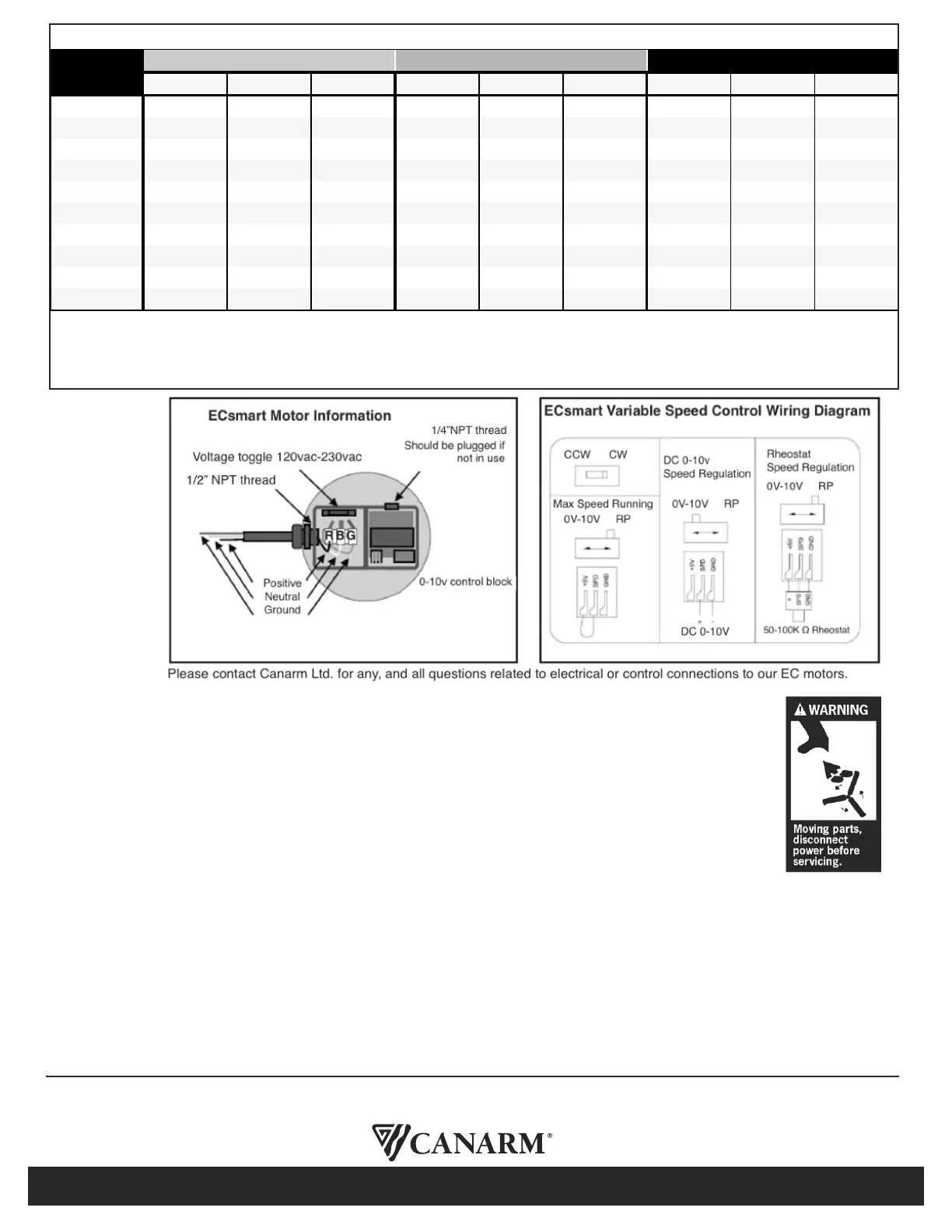

If your unit
contains the
ECsmart Motor
please follow
these wiring
diagrams:
WARNING: GUARDING SHOULD BE USED IF FANS ARE MOUNTED LOWER THAN SEVEN
FEET (2 METRES) OFF FLOOR OR GROUND LEVEL.
