Pg. #8
Pg. #5
2
2
.
.

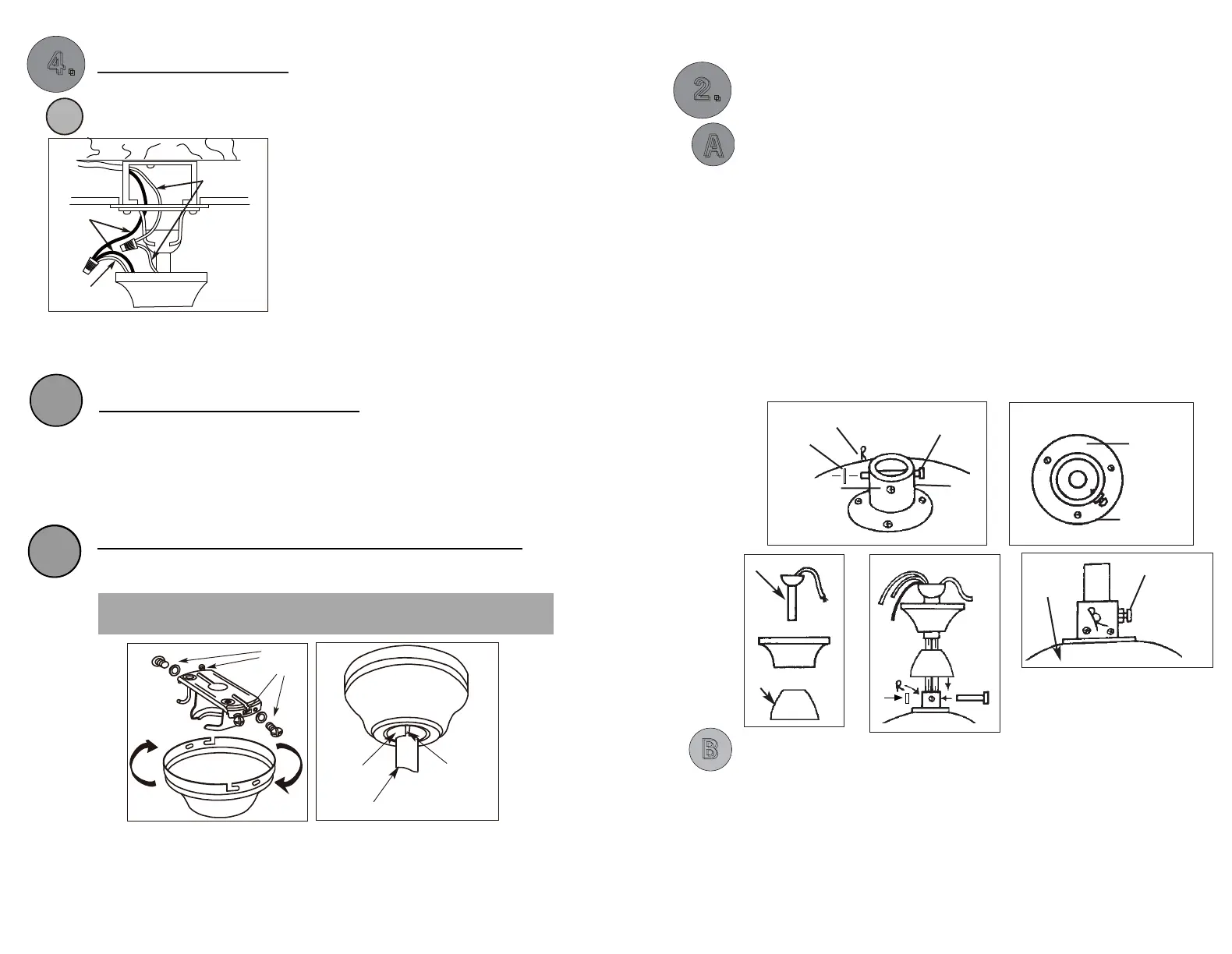

MOUNTING
DOWNROD MOUNT
A
A
FLUSH MOUNT
- Remove rubber ring from canopy.
- Place canopy on fan housing by aligning 3 larger holes of canopy over
3 existing screws on the motor housing.
- Secure canopy to motor housing by placing 3 screws and washers
(supplied in hardware package) in the 3 smaller holes in the canopy.
B
B
- Insert bolt through hole in shaft and downrod. Be careful not to
damage or cut the fan wires.
- Tighten flat washer and bolt. Secure with cotter pin through hole in the
end of the bolt.
- Secure downrod in position by tightening jam screws. Slide yoke cover
down so it is flush with the motor housing.
Motor
Jam Screw
Yoke Cover
Downrod
Canopy
Fig.
3c
Fig. 3d Fig. 3e
Cotter
Pin
Jam Screw
Bolt
Yoke
Yoke
Jam Screw
Flat Washer
Fig. 3a
Fig. 3b
- Take out
fan
motor housing.
-
Remove
cotter pin and bolt from yoke.
- Loosen jam screw in yoke until it is flush with the inside surface.
- Obtain downrod, canopy and yoke cover.
- Place downrod inside canopy and yoke cover.
-
Route
wires
exiting
motor
through
yoke
cover,
canopy
and downrod.
ELECTRICAL HOOK-UP
4
4
.
.
5.
MOUNTING FAN ASSEMBLY
- Place two screws and washers on mounting plate (marked B on diagram)
which correspond with slots in canopy. Screw in two turns.
- Position canopy to mounting plate aligning slots to screws (marked B on
diagram) then turn to lock.
- Position and tighten the two screws and washers (marked A on diagram)
then tighten the two screws (marked B on diagram).
6.
6.
ENGAGE HEMISPHERE (Downrod Mount Only)
- Carefully rotate fan assembly until groove in hemisphere locks over tab of
canopy assembly.
CONNECTING BLACK, WHITE, AND (RED OR BLUE) WIRES
NOTE: Once wires are connected, carefully tuck wires and marrettes into the
outlet box making sure that the wires are clear of the hemisphere
and downrod when positioned in mounting bracket
(Downrod Mount Only).
B
- Connect white wire from outlet box to white
wire from fan using marret (not supplied).
- Connect black wire from outlet box to black
wire from fan plus (red or blue wire) using
a marret.
NOTE: A r
ed or blue wire would be power
for a light kit if applicable.
Black Wire
White Wire
Red or Blue
Wire
NOTE: When installing fan on sloped ceiling, make sure tab on hanger bracket
faces towards the top of the slope. Depending on the slope, a longer
downrod may be required to prevent fan blades from hitting the ceiling.
Groove
(A)
(B)
(B)
Washers
(A)
Downrod
Hemisphere
WARNING: Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
Fig.6
Fig.7a
Fig.7b
