NOTE:
All set screws must be checked and
retightened where necessary, before and
after installation.
1
1
.
.

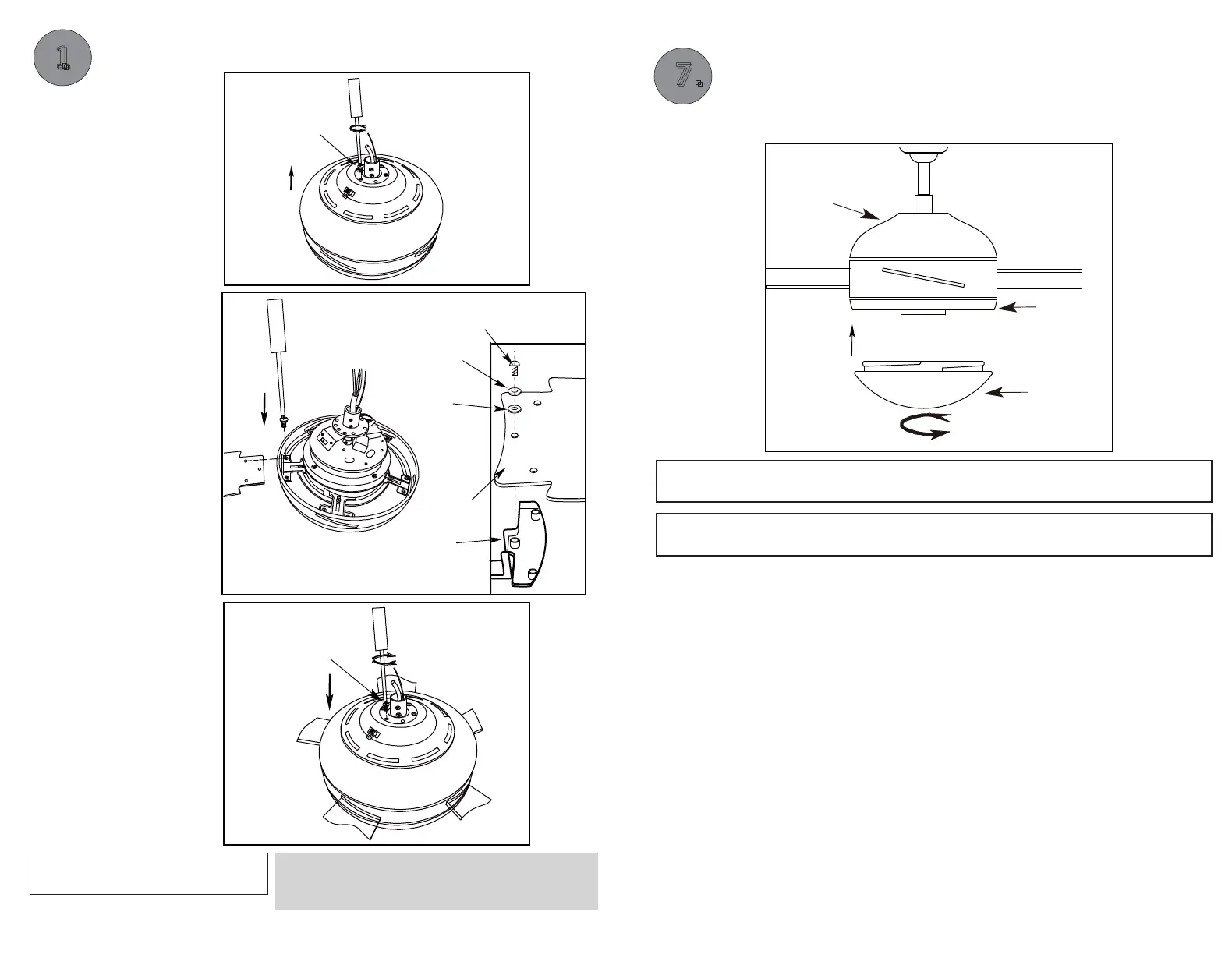

ATTACH THE FAN BLADES
- Remove the cover on
the top housing.
- Attach the blades to the
fan motor assembly using
the screws, metal washer
and fibre washer. Slightly
turn the blade after
installation and repeat the
same step for the other
blades.
- Re-attach the cover to
the top housing.
Fig.2b
Fig.2a
Fig.2c
Metal Washer
Blade Bracket Screw
Blade
Blade Bracket
Screw
Screw
Fibre Washer
WARNING:
BE SURE TO TURN OFF POWER BEFORE INSTALLING
7
7
.
.
LIGHT ASSEMBLY
- Place glass onto the fan and turn to secure.
Motor
Glass
Light
Kit
WARNING: Check all connections, set screws and screws a resecu rely tightened
before the next step.
To clean the fixture, turn off the power, wait for it to cool, and wipe the fixture
with a clean, soft cloth.
Fig.8
