CP SERIES
ULTRA QUIET HIGH PERFORMANCE EXHAUST FANS

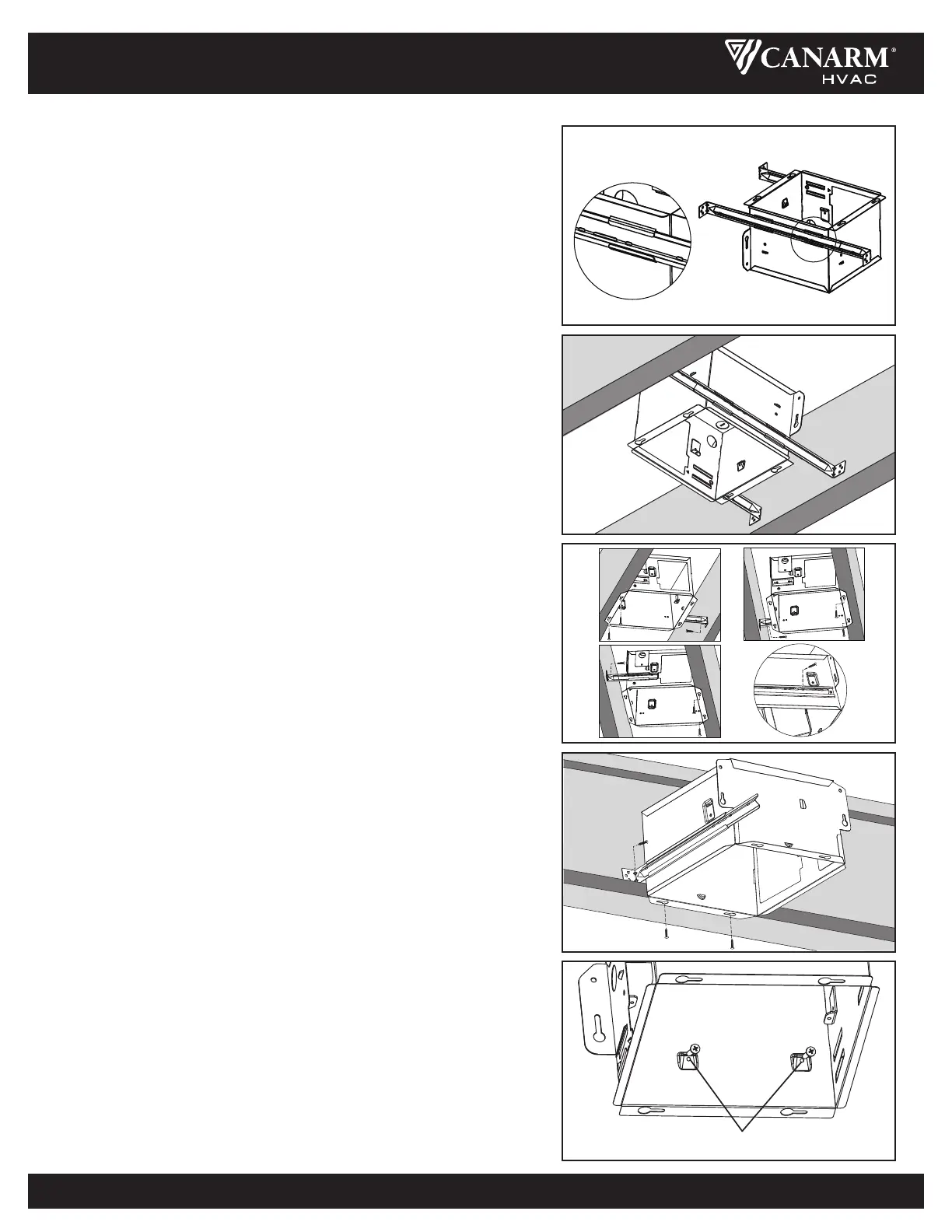

ASSEMBLY INSTRUCTIONS CONTINUED
4. Mount to I-joist.
a. Slide one hanger bar into channel on the housing and adjust as needed.
b. Hold housing in place so that the housing contacts the bottom of the
joist.
c. Screw housing to joist through the hole of the housing.
d. Screw the hanger bar onto the joist through the hole.
e. Screw hanger bar to housing with screw.
5. Mount with additional mounting holes.
The interior of the fan housing contains additional mounting holes in case
exterior mounting is not possible.
Screw or nail the fan housing directly to the framing or joists.
Remove the blower assembly as directed in the service parts section of this
manual to gain access to the additional mounting holes.
additional mounting holes
3. Mount with mounting holes and hanger bar.
a. Slide one hanger bar into the channel on the housing and adjust as
needed to fit between framing.
b. Hold housing in place so that the housing contact the bottom of the joist,
Screw housing to joist through the hole of the housing .
c. Screw the hanger bar onto the other side of joist through the hole.
d. Screw hanger bar to housing with screw.
e. Refer to the right diagram.
2. Mount with hanger bars.
a. Sliding hanger bars have been provided, which allow the housing to be
positioned accurately anywhere between the framing. The bars span up
to 24 in. and can be used on all types of framing: I-joist, standard
joist,and truss construction. Slide hanger bars onto housing and adjust
as needed to fit between framing.
b. Position the ventilator with the housing is contact with the bottom of the
joist, holding the ventilator in place. Secure hanger bars to framing using
one screw on each end of hanger bar.
c. Select a proper hole and secure the hanger bars together using flange
screws.
