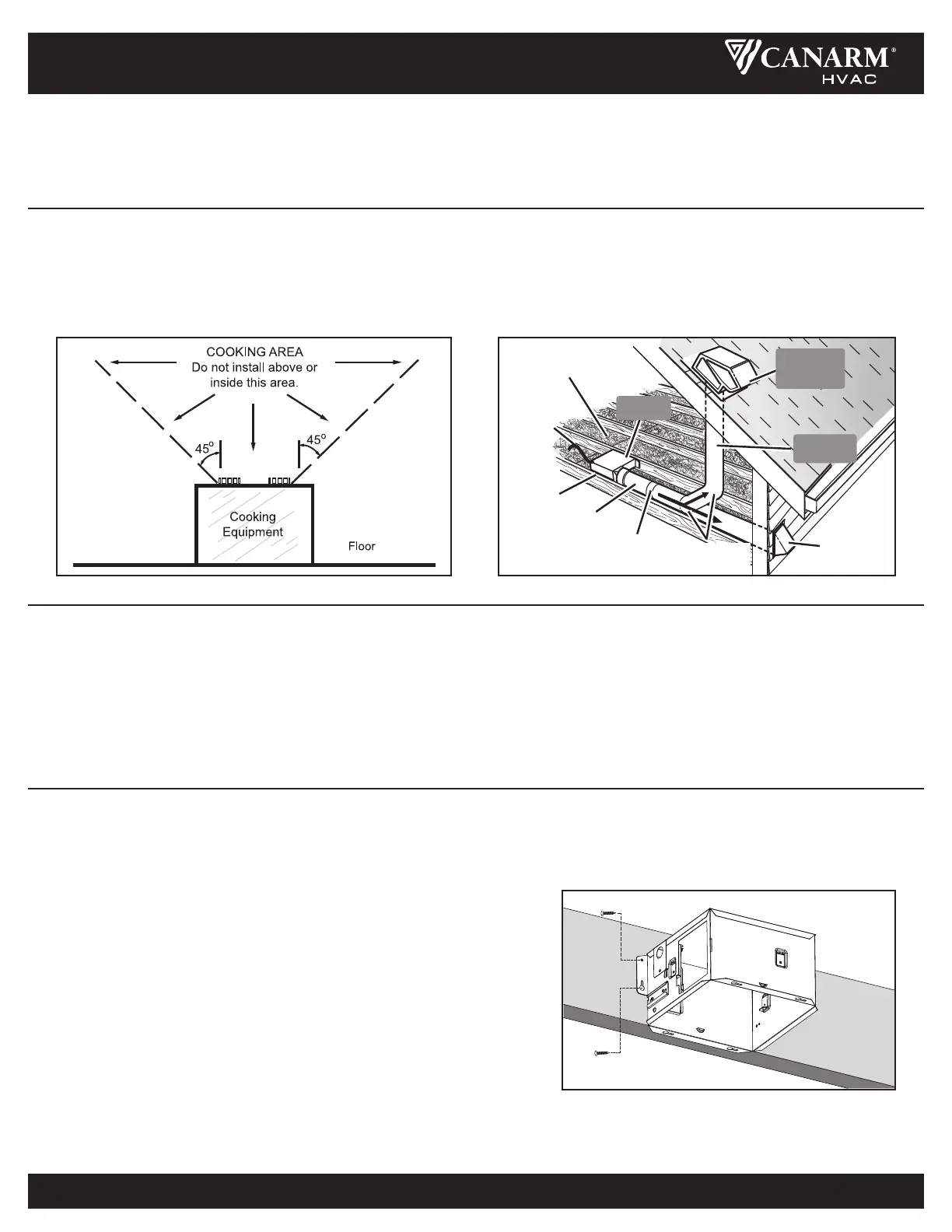

CP SERIES
ULTRA QUIET HIGH PERFORMANCE EXHAUST FANS
Use an on/off switch to operate this fan. See Electrical Wiring Connection section for details.
OPERATION
ASSEMBLY INSTRUCTIONS
1. Do not use in a cooking area.
2. Two ways to connect ductwork to a factory-shipped unit.
PLAN THE INSTALLATION
1. Housing mounted to I-joists - start at Assembly Instructions 1.
2. Housing mounted to joists - start at Assembly Instructions 1.
3. Housing mounted to truss - start at Assembly Instructions 2.
TYPES OF TYPICAL INSTALLATIONS
ROUND
DUCT*
WALL CAP*
(with built-in
damper)
* Purchase
separately
POWER
CABLE*
INSULATION*
(Place around and
over Fan Housing.)
Seal gaps
around
Housing.
ROUND
ELBOW(S) *
Seal duct
joints with
tape.
ROOF CAP*
(with built-in
damper)
Keep duct
runs short
FAN
HOUSING
1. Mount housing to joist or I-joist.
a. Hold the housing so that it is in contact with the bottom of the joist.
b. Attach the housing with four (4) screws to the joist through the holes in
each mounting flange.
