CNP SERIES
ULTRA QUIET COMPACT EXHAUST FANS

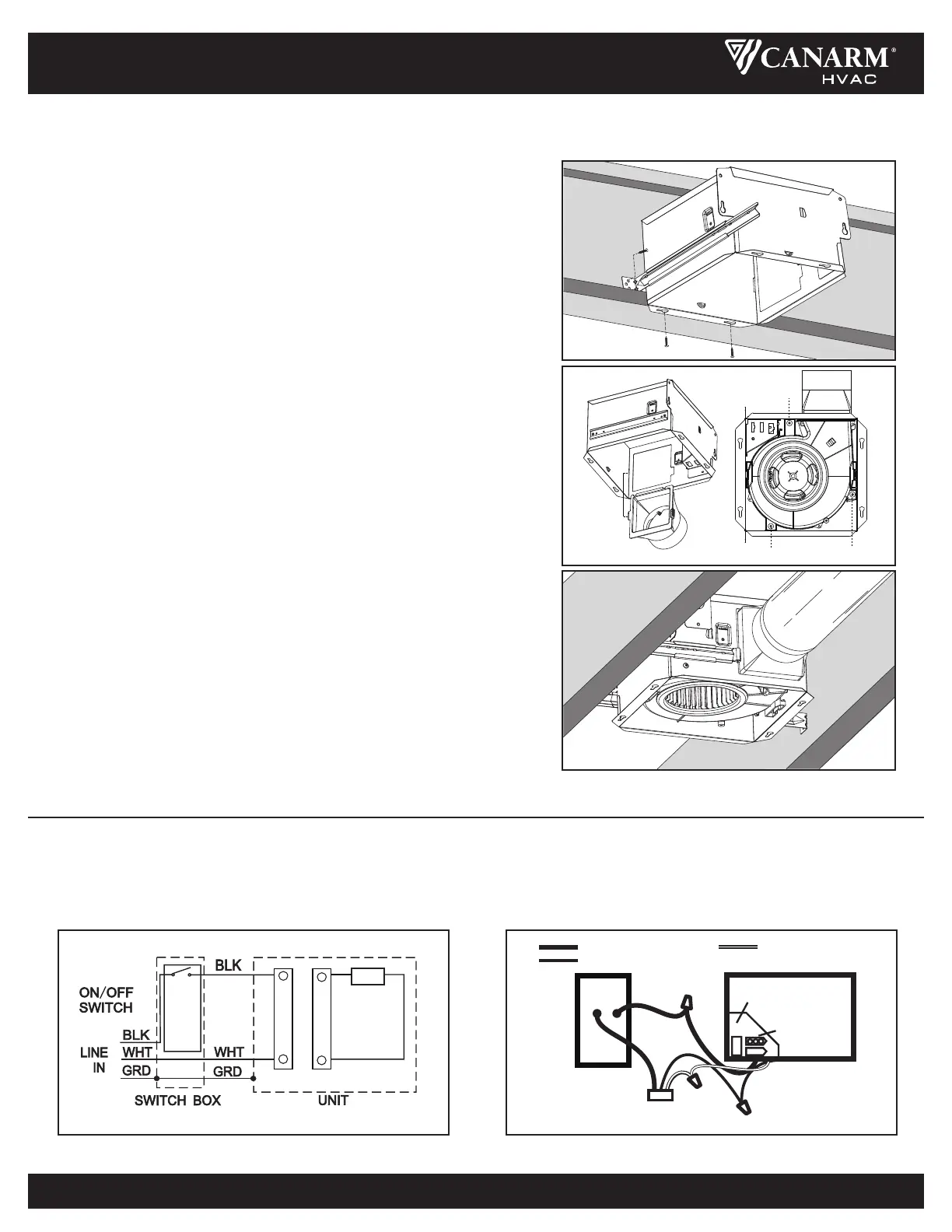

Run 120 V AC house wiring to the location of the fan. Use only UL-approved connectors (not included) to attach the house wiring to the
wiring plate. Refer to the wiring diagram, and connect the wires as shown.
ELECTRICAL WIRING CONNECTION
3. Mount to I-joist.
a. Slide one hanger bar into channel on the housing and adjust as needed.
b. Hold housing in place so that the housing contacts the bottom of the
joist.
c. Screw housing to joist through the hole of the housing.
d. Screw the hanger bar onto the joist through the hole.
e. Screw hanger bar to housing with screw.
ASSEMBLY INSTRUCTIONS CONTINUED
4. Install duct and blower assembly.
a. Install duct from the inside of the housing. Fix. the duct by the tab.
b. Attach the blower assembly to the housing by 3 screws.
Hole
Hole
Hole
5. Install round ductwork.
a. Connect the round ductwork (not included) to the damper/duct
connector, and run the ductwork to a roof or wall cap (not included).
b. Using tape (not included), secure all the ductwork connections so that
they are air tight.
c. Insulated flexible duct is recommended for the quietest possible
installation. If rigid duct is used, a short (1-3 feet) section of insulated
flexible duct will ensure quiet operation.
The ducting from this fan to the outside of building has a strong effect on
the air flow, noise and energy use of the fan. Use the shortest, straightest
duct routing possible for best performance, and avoid installing the fan with
smaller ducts than recommended. Insulation around the ducts can reduce
energy loss and inhibit mold growth. Fans installed with existing ducts may
not achieve their rated air flow.
UNIT
BLACK (BLK)
SWITCH BOX
FAN
POWER SUPPLY
120V AC
GROUND (GRD)
WHITE (WHT)
FAN
RECEPTACLE
WIRE
PANEL
FAN
