Page 2 of 6
M-CNP 11/24
CNP SERIES
ULTRA QUIET COMPACT EXHAUST FANS
See Electrical Wiring Connection section for details.

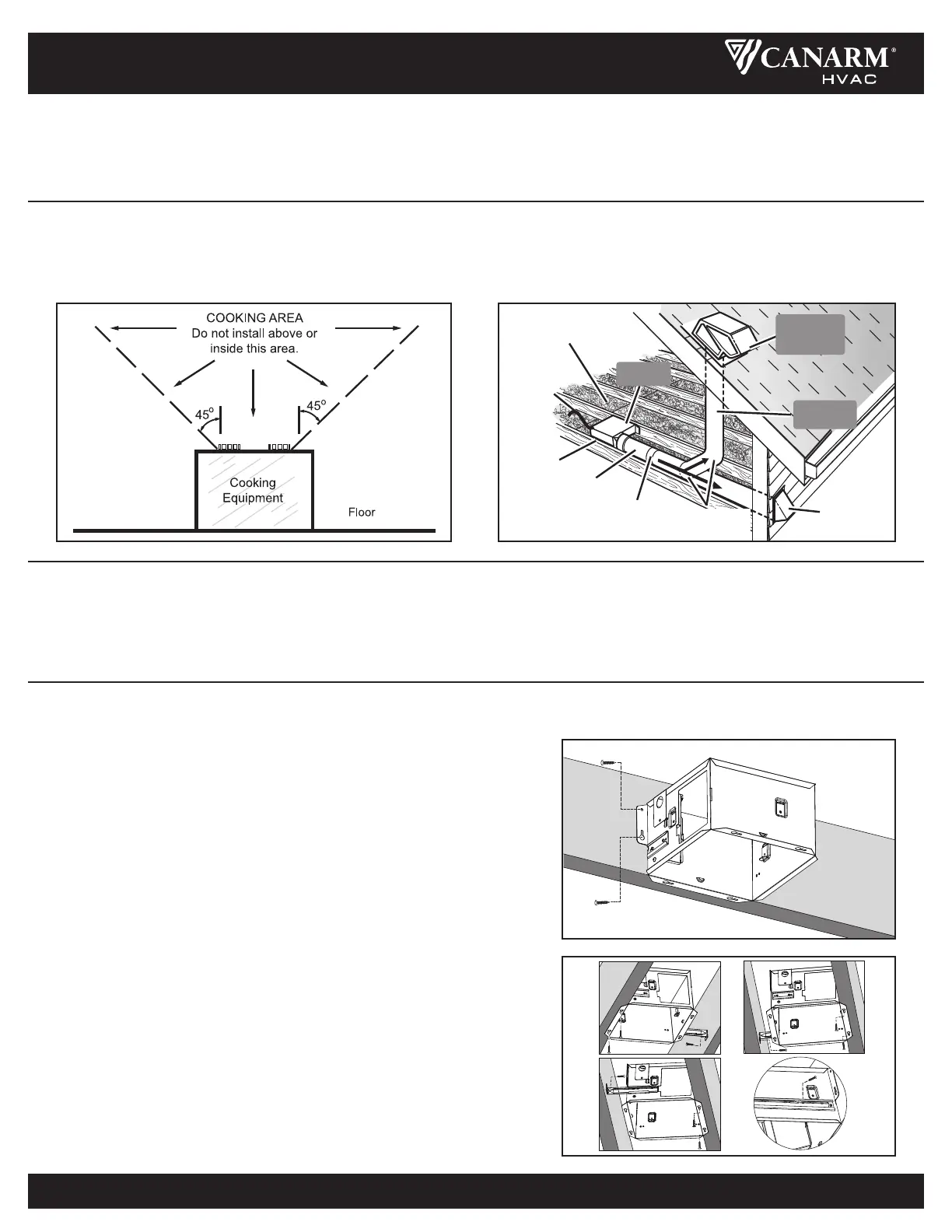

OPERATION
1. Do not use in a cooking area.
2. Two ways to connect ductwork to a factory-shipped unit.
PLAN THE INSTALLATION
1. Housing mounted to I-joists - start at Assembly Instructions 1.
2. Housing mounted to joists - start at Assembly Instructions 1.
3. Housing mounted to truss - start at Assembly Instructions 2.
TYPES OF TYPICAL INSTALLATIONS
ASSEMBLY INSTRUCTIONS
ROUND
DUCT*
WALL CAP*
(with built-in
damper)
* Purchase
separately
POWER
CABLE*
INSULATION*
(Place around and
over Fan Housing.)
Seal gaps
around
Housing.
ROUND
ELBOW(S) *
Seal duct
joints with
tape.
ROOF CAP*
(with built-in
damper)
Keep duct
runs short
FAN
HOUSING
1. Mount housing to joist or I-joist.
a. Hold the housing so that it is in contact with the bottom of the joist.
b. Attach the housing with four (4) screws to the joist through the holes in
each mounting flange.
2. Mount with mounting holes and hanger bar.
a. Slide one hanger bar into the channel on the housing and adjust as
needed to fit between framing.
b. Hold housing in place so that the housing contact the bottom of the joist,
Screw housing to joist through the hole of the housing .
c. Screw the hanger bar onto the other side of joist through the hole.
d. Screw hanger bar to housing with screw.
e. Refer to the right diagram.
