Cambro CVC75 handleiding
Handleiding
Je bekijkt pagina 6 van 8
6
10
7
33 32
28
30
33
34
22 31
6
31 4
2
18
13
14
22
18
25
27
24
30
29
12
21
38
16
17
36
23
22
11
9
91
15
35
26
39
29
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
CVC75MB
Roto Molded Main Body
1
2
CVCMCS
Roto molded Main Center Support
1
3
CVC75LSRL
Roto Molded Lower Shelfs Packaged seperately W_pawl, shoulder
screw and tool (not shown)
2
4
CVC75SQSUP
Roto molded Square Support
2
5
CVCCS6
Roto molded 6 inch corner support
4
6
CVCMS
Roto molded Main Shelf
1
7
CVC75CC
Roto Molded Center Cap
1
8 65019
Roto Plug- Black (not shown)
8
9
CVC75 Drain Assy 012720
PVC Drain Assy installed before foaming
2
10
CVC75 Wrap
See color code for Wrap design
1
11 41204
CSTR 6x2 Flt Trd SWB Prem
5
12 44570
SS Banner Clamp bar 25.96in
2
13 44574
6061-T6 aluminum anodized black with 10-32 x 1.0" threaded
holes at each end
2
14 44582
92311A433_18-8 SS CUP POINT SET SCREW 10-32 x 1.0
2
15 47227
Plug, Wing-Nut
2
16 44583
91772A842 10-32 x 3.0" PHP SS
2
17 45323
HDW #10 WASHER SS
2
18 45283
92105A430_TAPPING INSERTS FOR SOFTWOOD 3/8-16
4
19 44594
CVC75 Shelf Pawl Delrin Black Pkg with Lower Selfs
4
20 44593
90298A578_18-8 SS SHDR SCREW Pk w_Shelfs
4
21 45333
91770A540 1_4 20 x 3_4 SS phil truss Hd
10
22 45330
HDW SS FLAT WASHER 3/8"
24
23
45116A
92865A622_MEDIUM-STRG GRADE 5 ZINC-PLTD STL CAP
SCREW
20
24
471016
CVC75 12 inch Front window
2
25 44580
Dowels 3/8 dia x 3/4" long 304SS 90145A622
8
26 44595
92198A628_18-8 SS HEX HEAD CAP SCREW 3/8-16 x 1.5"
2
27 471017
12.55 X 12 inch side window
2
28 44573
CVC75 .250" 304 SS rod x 15.5" threaded x 1.5" at each end
4
29 45332
91950A029 1_4 Flt Wshr SS
8
30 45320
1/4-20 Nyloc hex nut SS
8
31 44579
3_8-16 x 3.0 HHCS 92198A636_18-8 STAINLESS STEEL
2
32 44576
CVC75 3/8 plastic plug 90221A225 Pk 25 $6.70
8
33 44577
85985K290_RIGID PLASTIC LOCKING PLUG 1.5 hole
6
34 44581
92105A200 1/4-20 Alloy insert_After Molding
4
35 44578
92198A553_18-8 STAINLESS STEEL HEX HEAD CAP SCREW 1_4-
20 x 2.75
4
36 41205
Caster Swivel Lock for large pattern mounts
2
37 44592
5/32" L-Key McM 6493A71Not seen pkg with lower shelfs
1
38 47864
9688K221_RIGID PLASTIC SNAP-IN PLUG 1_4
12
39
45302
1/4 x 1.0 Fender Washer SS 90377A157
4
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
E
--
REV
--
3-PLCS. DECIMAL :
0.050"
2-PLCS. DECIMAL :
0.10"
ANGULAR :
1/4
1/8"
0
DO NOT SCALE DRAWING!
DWG. SIZE
Multi
Multi
1:4
E

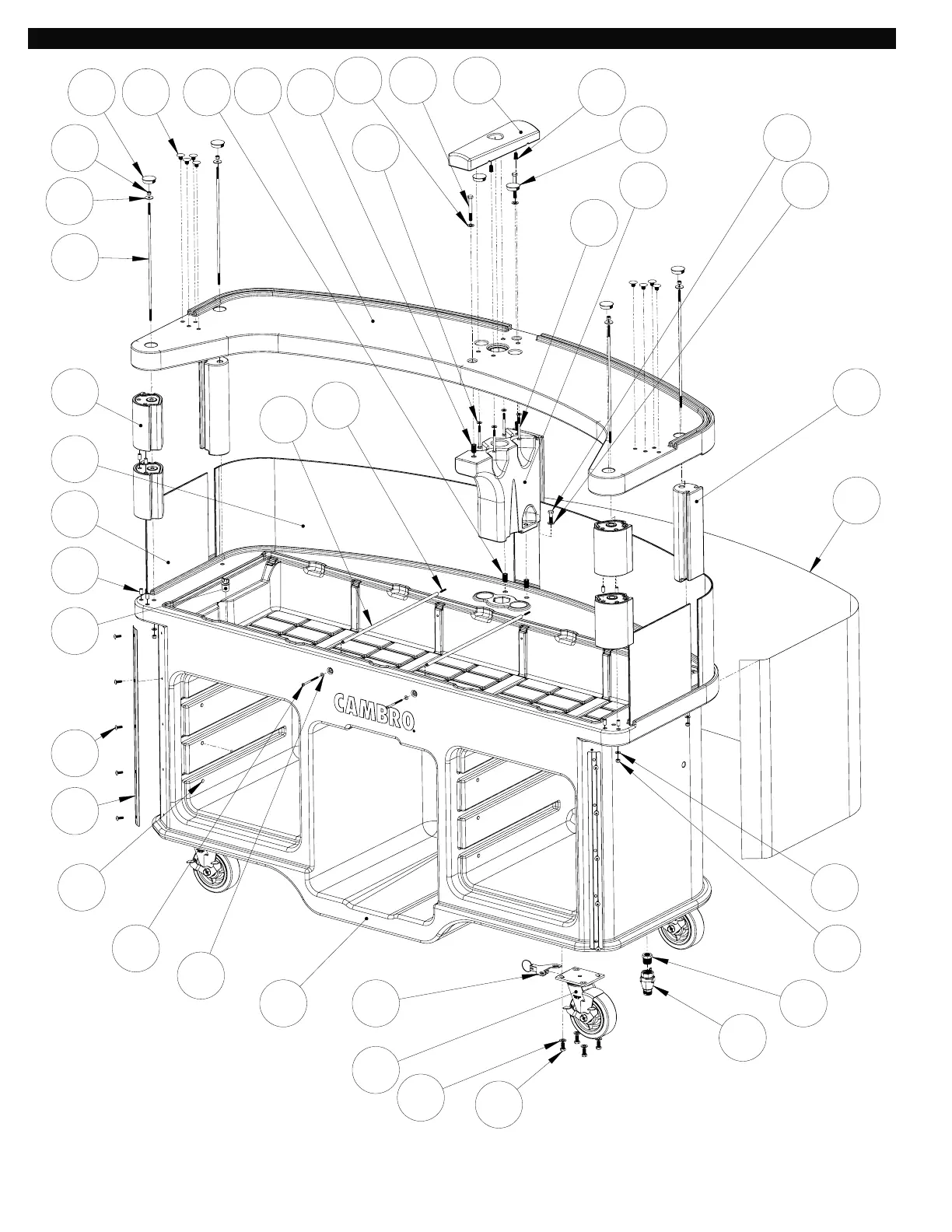

CVC75 Assy
Exploded View
FRACTIONAL :
DRAWN
BY
DRAWING No.
5801 SKYLAB ROAD
HUNTINGTON BEACH, CA 92647
TEL. (714) 848-1555
www.cambro.com
MANUFACTURING COMPANY
The information, data, know-how, format, configuration, design(s), utilization,
formulas, compositions of matter, business plans, programs and pricing pertaining
to this document (Information) is Confidential and Proprietary, and owned by
Cambro Manufacturing Company (Cambro). It is only to be used and disclosed in
furtherance of the business interests of Cambro as directed orally or in writing by
Cambro. All Information in electronic, tangible or machine form, prototypes, molds
or other forms is deemed to be owned by Cambro and shall be returned promptly
upon Cambro's request, and not disclosed or used for any other purpose thereafter.
Cambro reserves all rights to patents, copyrights, trade secrets and the enforcement
thereof as to the information.
PART No.
REV.
TOLERANCES:
ISSUED
SCALE
TITLE
SHEET 1 OF 1
CHECKED
APPROVED
MATERIAL
FINISH
APPROX. WEIGHT
ALL DIMENSIONS ARE IN INCHES.
REV.
APPR'D
DATE
DESCRIPTION
Monday, March 2, 2020
11:55:17 AM
Jeff Nicholson
VII. Assembly / CVC75
