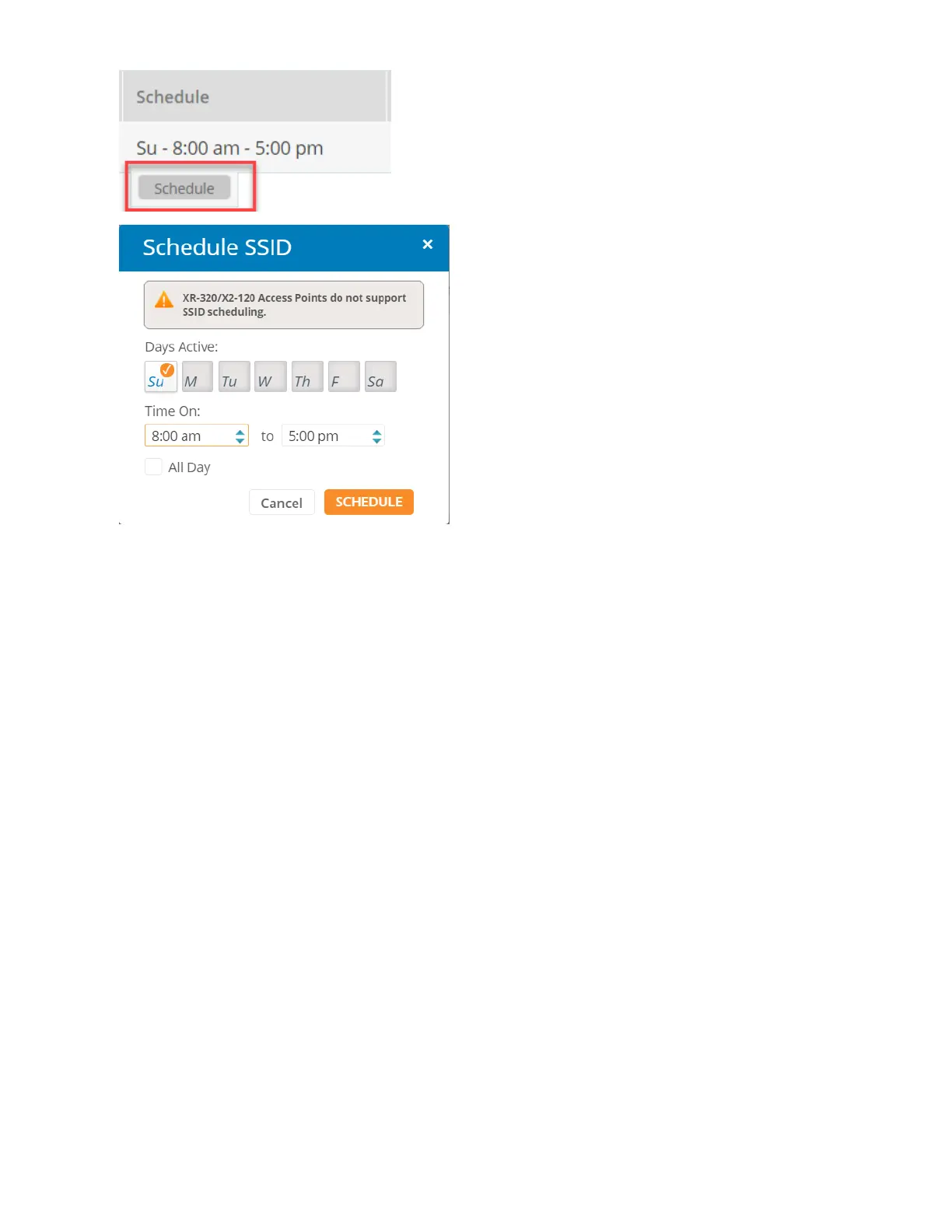

1. To specify Schedule SSID time or rule to be active, click the checkboxes for the days that to be active or enable
all day is for certain time, instead of few hours or days user can select for All Day.
2. Check the Time On hours that will be enforced, and modify it as needed.
3. Click Schedule.
You cannot apply one filter for two or more scheduled periods, but you can create two filters to achieve that. For
example, one filter could block the category Games from 9:00 to 12:00, and another could block them from 13:00 to
18:00. Similarly, you might create two rules for different days—one to block Games Mon-Fri 8:00 to 18:00, and
another to block them on Sat. from 8:00 to 12:00.
Note that a policy schedule takes precedence over rule schedules and may override them. Make sure that rules are
scheduled within the policy schedule.
l Access Control — To set up special handling when guests connect to this SSID, select Captive Portal, or select
None for no special handling. An additional option is AirWatch — select this if you are using AirWatch for mobile
device management (this option will be grayed out unless you first set up AirWatch in Add-on Solutions). For
details on setting up a captive portal, please see Captive Portal Settings, below.
l Enable VLANs—allows you to override existing VLAN and subnet schemas by using VLAN tagging. This is
recommended for previously unplanned networks, or networks that have grown organically and don't have a
consistent set of VLANs across campuses/buildings. After VLANS have been enabled, you may define VLANs and
their usage on the SSIDs page, and/or for User Groups (on the Policiespage).Assign VLAN Tags to APs on the My
Networks > AccessPoints tab.
You can schedule the SSID to be on (available)onlyatspecifieddaysandtimes and be off the rest of the time. See
Scheduling under SSID.
LEDs
l LEDs — Set this toYes if you wish to turn off the LEDs on APs for aesthetic reasons. This does not change the
operation of the AP in any other way.
To configure additional settings, see Advanced Settings.
9 | Help Guide | XMS Cloud
