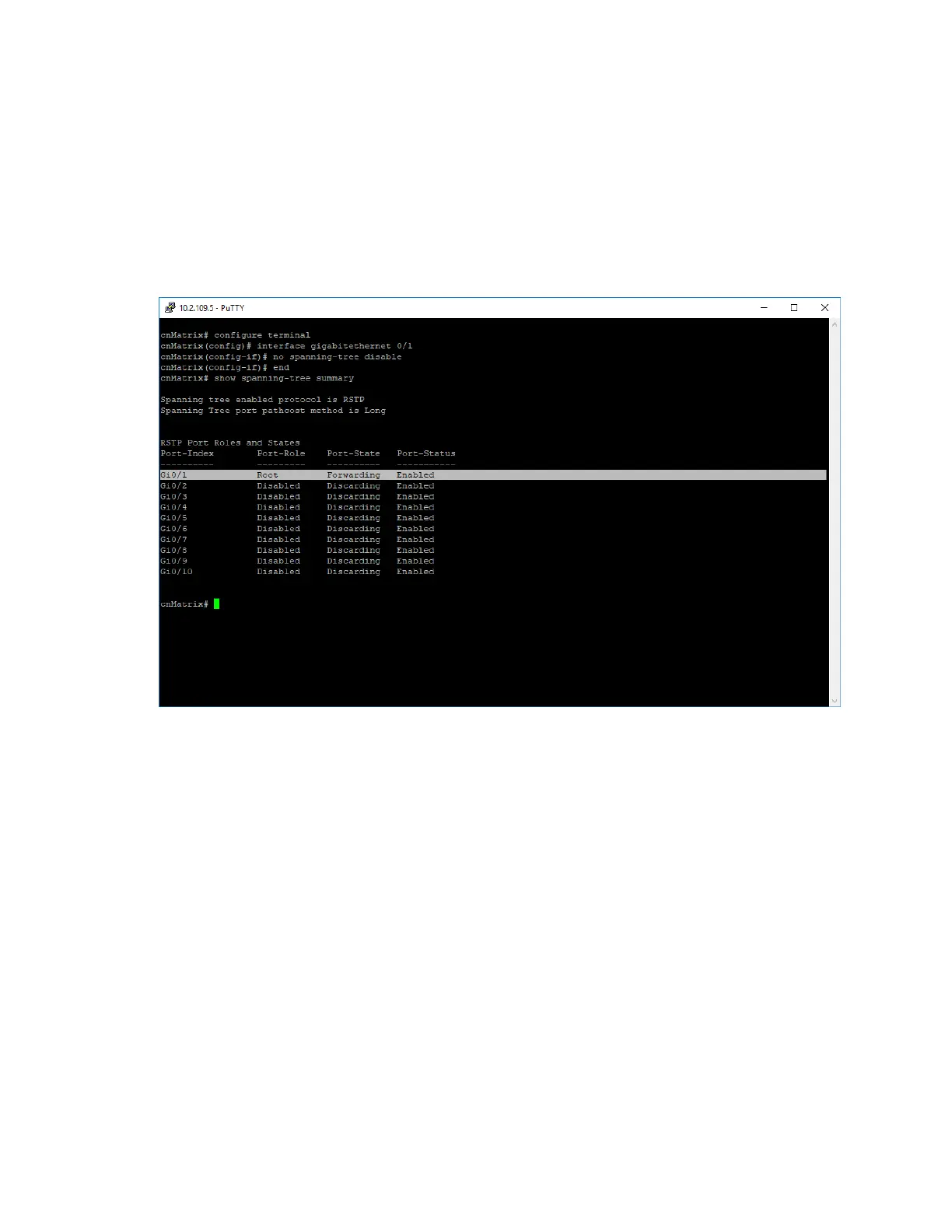

L2 Features 61

1. Type the configure terminal command into the terminal. Press the Enterkey.

2. Type the interface gigabitethernet 0/1 command into the terminal. Press the Enterkey.

3. Type the no spanning-tree disable command into the terminal. Press the Enterkey.

4. Type the end command into the terminal to go back to the Privileged EXEC mode.Press the

Enterkey.

5. Type the show spanning-tree summary command into the terminal. Press the Enterkey.

You can check/display the administrative and operational status for STP with the following terminals:

l

show spanning-tree

l

show spanning-tree summary

l

show spanning-tree detail

Changing the STP path cost method

The switch allows the user to select between the IEEE 802.1D-1998 (short) and the IEEE802.1T (long)

default STP path cost values. This is a per-switch (global) STP configuration and can be set in each STP

operating mode (RSTP, PVRST, and MSTP). The default method is long.

path cost values will be immediately modified on the operational ports, and the STP trees will be

recalculated accordingly. Ports on which the cost is set manually will not be affected by this global

setting.

The command is available for all STP modes.
