L2 Features 163

The user will need to do configure the following:

l

Change the bridge mode to provider edge and reboot.

l

Configure port types to either customer-edge or provider.

l

Configure the port/C-VLAN to S-VLAN translation.

Additionally, the user will be able to configure:

l

The ingress/egress ethernet type for the S-VLAN.

l

The default C-VLAN for a provider port, in case there are packets arriving as C-untagged.

l

The default S-TAG dot1-p priority.

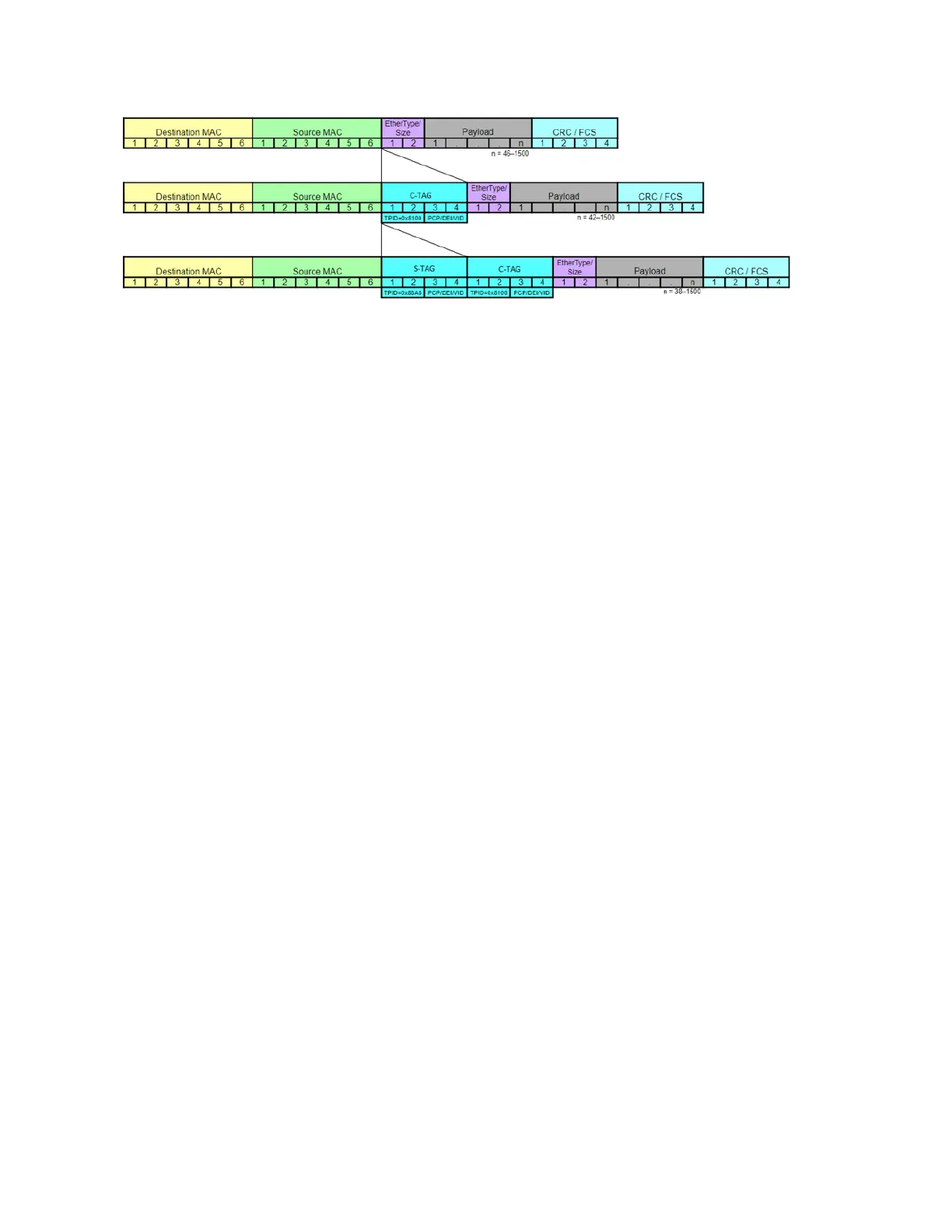

Configuring Q-in-Q via CLI

cnMatrix# boot default bridge-mode {customer | provider-edge}

l

Customer - Sets the bridge to Customer Bridge Mode which allows the switch to operate as a

802.1Q VLAN Bridge.

l

Provider - Sets the bridge to Provider Bridge Mode which allows the bridge to operate as a normal

Q-in-Q Bridge.

By default, the switch is configured as customer.

cnMatrix# show bridge-mode

The current bridge mode is: provider-edge

After booting into the provider-edge mode, the user needs to assign customer-edge and provider edge

ports:

cnMatrix(config-if)# bridge port-type {customer-edge | provider}

l

Customer-edge – Denotes that the port is connected to a single customer. The packets received

on this port are initially classified as a C-VLAN. C-VLAN classification is done based on the VID in

the C-tag present in the packet or from the PVID of the port. Service VLAN selection is done for a

frame based on the entry present in the C-VID registration table for the pair (C-VID, reception

port).

l

Provider – Denotes that the port is connected to a single provider.

On customer-edge ports
