Operating instruction EN DOC-000001

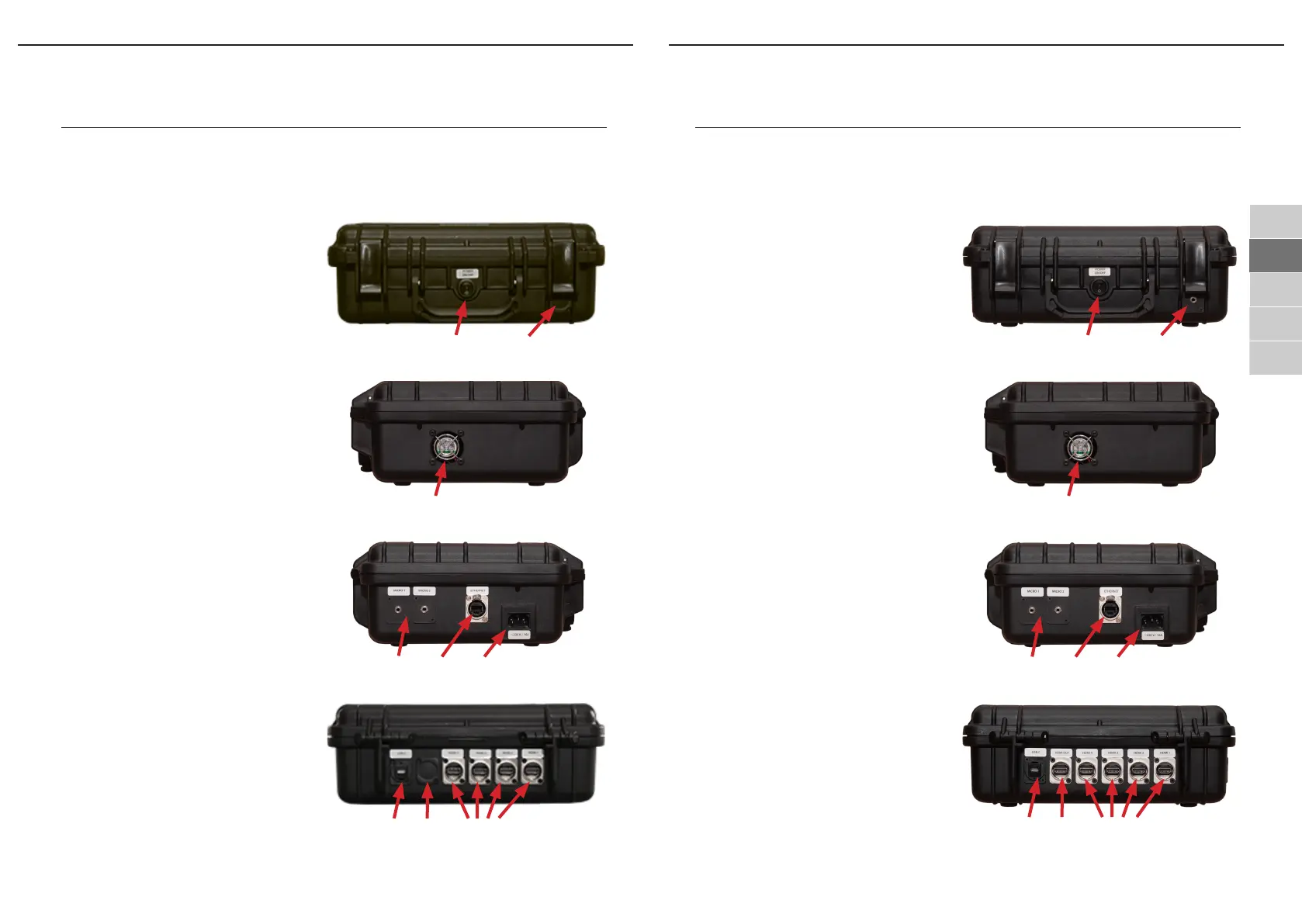

Connections BSS Case Basic
The following connections on the BSS case are arranged in a user-friendly man-
ner. Dierent connection sockets can be installed in the BSS Case Professional.
Front side
• On/O switch (A)
• Headphone connection
3.5mm stereo jack (B) or op-
tional 6.35 mm stereo jack
Right side
• Fan (C)
Left side
• Audio connections 2x3.5 mm
jack stereo unbalanced (D)
• Ethernet connection socket
RJ45 (E)
• Mains connection 230 V
Version: C14 (F)
Reverse side
• • USB-C (G)
• • HDMI out (H)
• • HDMI in (I1-I4)
DE
EN
FR
IT
ES
I1-I4HG
F
ED
C
B
A
Page 36
BSS-Streaming Service BSS-Case
Connections BSS Case Economic
The following connections on the BSS case are arranged in a user-friendly man-
ner. Dierent connection sockets can be installed in the BSS Case Professional.
Front side
• On/O switch (A)
• Blind cover or option: head-
phone connection 3.5mm
stereo jack (B)
Right side
• Fan (C)
Left side
• Audio connections 2x3.5 mm
jack stereo unbalanced (D)
• Ethernet connection socket
RJ45 (E)
• Mains connection 230 V
Version: C14 (F)
Reverse side
• USB-C (G)
• Blind cover (H)
• HDMI in (I1-I4)
I1-I4HG
FED
C
B
A
