4.2 ELECTRICAL CONNECTION
WARNING: All electrical work should be carried out by a suitably qualified and
authorised electrician. No alterations or wilful changes in the electricity supply should be
carried out.
F
itting guidelines:The oven is manufactured to work with single-phase alternating current
(220V-240V/50Hz).The connection diagram is also found on the cover of the connection box.
Remember that the connection wire should match the connection type and the power
rating of the oven.
The connection cable must be secured in a strain-relief clamp.
W
arning!Remember to connect the safety circuit to the connection box terminal
marked with .The electricity supply for the oven must have a safety switch which
enables the power to be cut off in case of emergency.The distance between the
working contacts of the safety switch must be at least 3 mm.Before connecting the oven
to the power supply it is important to read the information on the data plate and the
connection diagram.

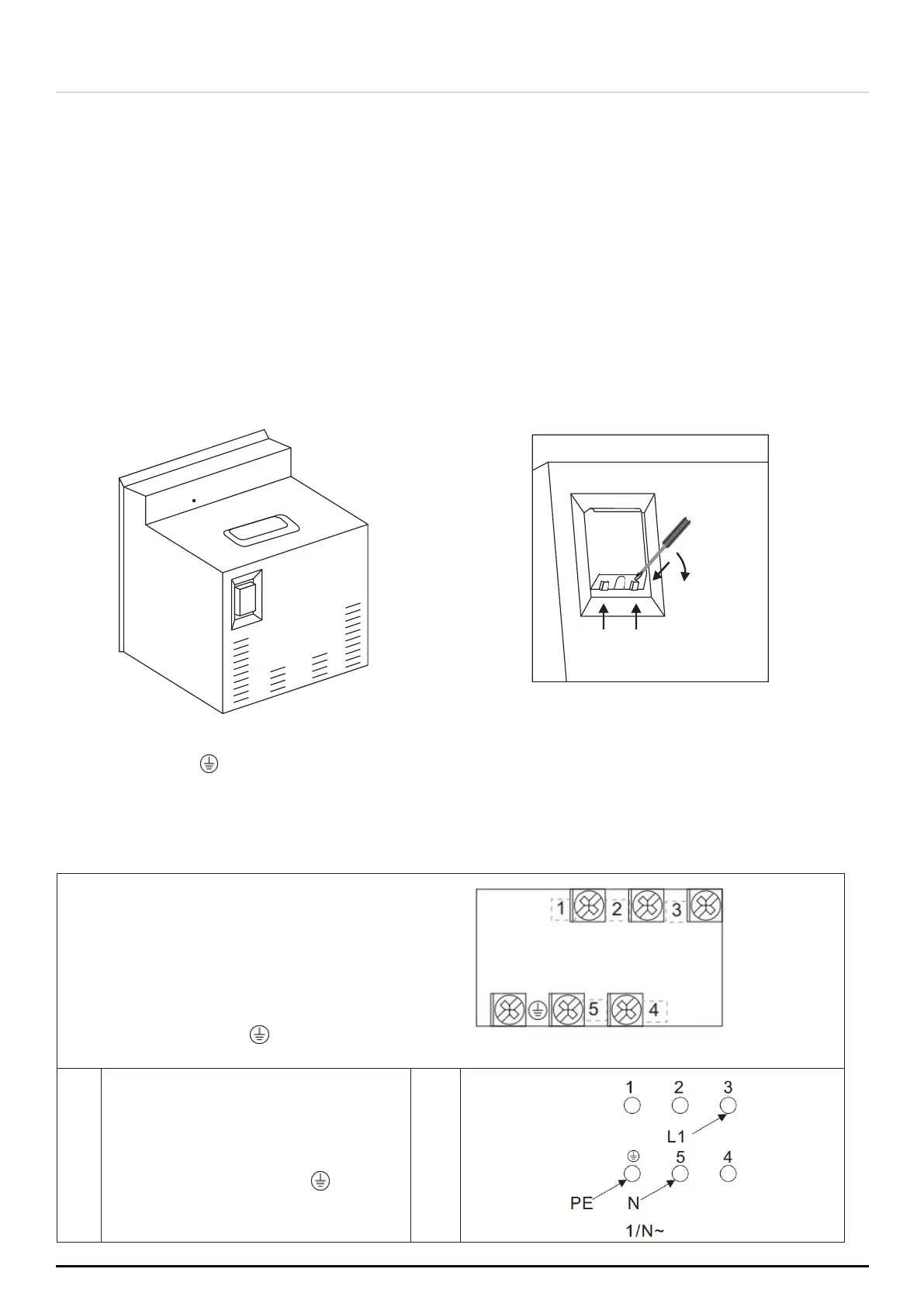

CONNECTION DIAGRAM
Caution! Voltage of heating elements
220V
～
240V
Caution! In the event of any
connection the safety wire must be
connected to the PE terminal
For 220V-240V~ earthed one-
phase connection.
Active wire to terminal 3
Neutral wire to terminal 5
Earth /Ground wire to
2
1
