INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
8
A = 10¼”
B = 19
9
/16”
PREPARE THE CABINET
WARNING
The cabinet must be secured to wall studs or other
wooden framework behind the drywall to support
the weight of this unit. Failure to do so may cause
personal injury or damage to countertop or cooktop.
NOTES: A. The unit has to be installed inside the cabinet. If
installing with one of the optional liners, use it as
a template to cut the hole in the bottom of the
cabinet.
B. The unit should be mounted centered laterally
over the cooktop burners.
C. For back to front position, the unit must be
mounted according to local building codes.

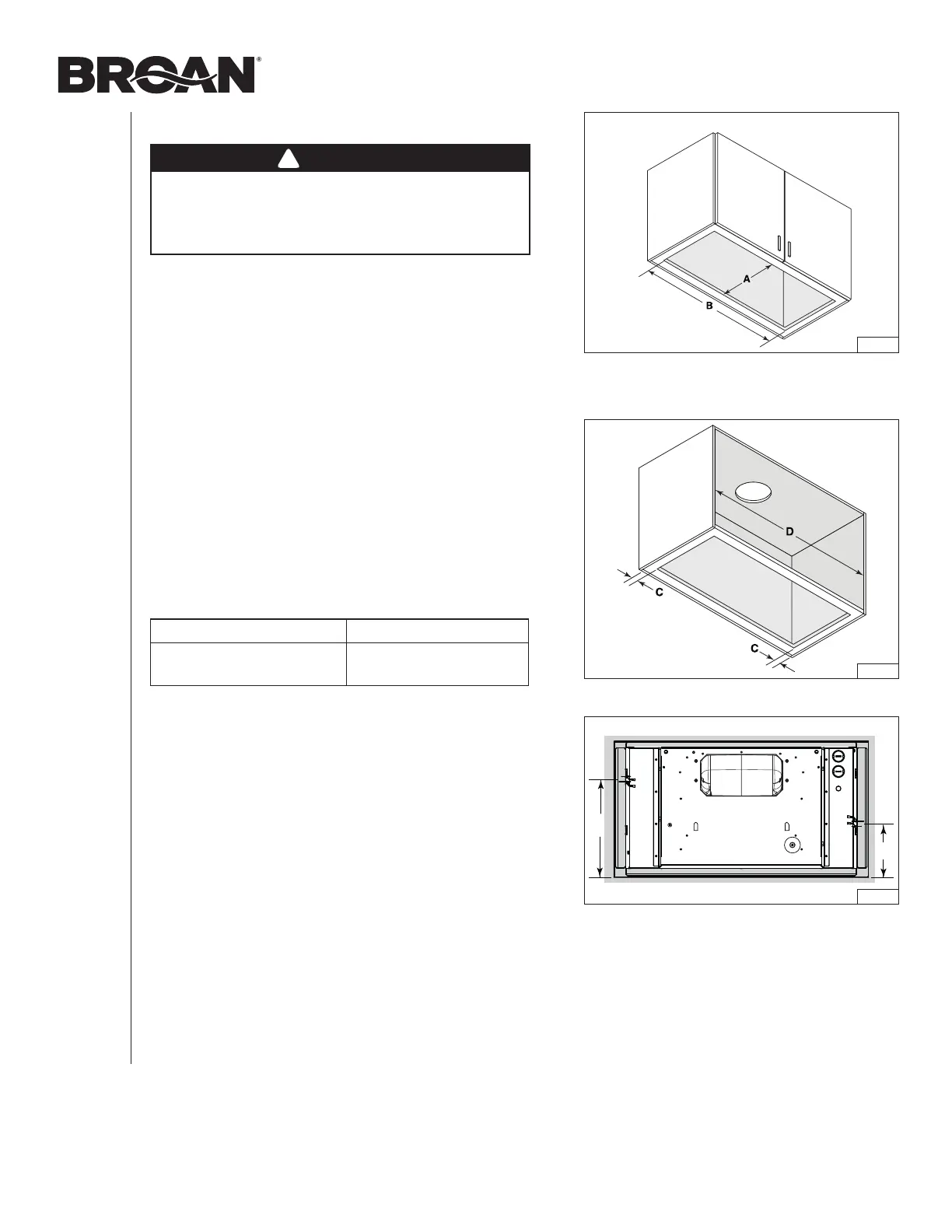

1. Cut a hole in the bottom of the cabinet, using the
dimensions shown (FIG. 9), or use the optional liner as a
template.
2. Where needed, install the metal liner.
3. Measure the remaining material of the cabinet bottom
sides (C) (FIG. 10), if it is 1/4” or more, there is no need
to use the cabinet brackets. Go to step 8 on page 10.
4. When there is less than 1/4” remaining material (C),
carefully remove those strips. Measure the cabinet inner
width (D) (FIG. 10). Refer to the table below to see which
cabinet bracket edge configuration must be used.
5. Pay attention to the Ease of Install hooks location on
the unit (distance given from unit front flange, FIG. 11).
Measure and mark the position of the Ease of Install hooks
(shown as E in FIG. 12 on next page) on both cabinet side
walls.
narroW eDge WiDe eDge
D
From 19-9/16” to < 20”
D
From 20” to 20-1/2”
!
HD1381
CUT A HOLE IN THE BOTTOM OF THE CABINET
FIG. 9
HD1382
FIG. 10
HD1387A
8¼”
4½”
FIG. 11
FRONT
UNIT TOP VIEW
