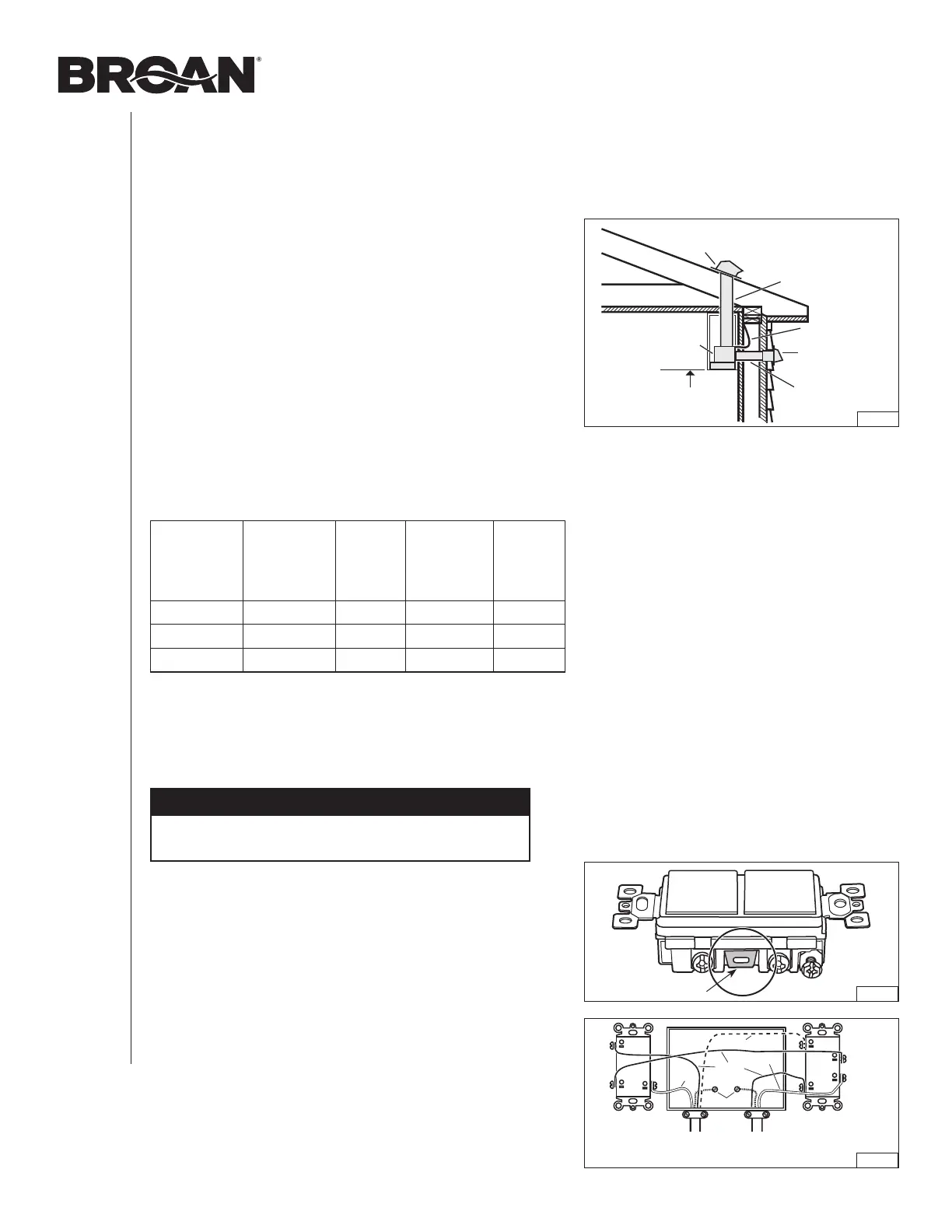

INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
6
INSTALL THE WALL SWITCHES
CAUTION
Only use included switches. Only use wires suitable
for at least 90°C (194°F).
1. Unpack the wall switches from the box. Using pliers,
remove the small tab on the double rocker switch (circled
in FIG. 2).
2. Install both rocker switches at a convenient place for the
user. Use one 14/3 cable and one 14/2 cable to wire the
switch box to the powerpack insert (FIG. 3).
HD1421
REMOVE
FIG. 2
Motor
speed selection
switch
NO. 2
14/2 CABLE TO
POWERPACK
INSERT
HE0448A
WHITE
BLACK
GROUND
On/Off
light switch
On/Off
motor switch
NO. 1
14/3 CABLE TO
POWERPACK
INSERT
WHITE
COM
RED
FIG. 3
INSTALL THE DUCTWORK
(DUCTED INSTALLATION ONLY)
NOTE: To reduce the risk of fire, use only metal ductwork.
1. Decide where the ductwork will run between the powerpack
insert and the outside. (FIG. 1)
2. The ducting from this fan to the outside of the building has
a strong effect on the air flow, noise and energy use of the
fan. Use the shortest, straightest duct routing possible for
best performance, and avoid installing the fan with smaller
ducts than recommended. Insulation around the ducts can
reduce energy loss and inhibit mold growth. Fans installed
with existing ducts may not achieve their rated airflow.
Refer to the table below to help you plan the most efficient
installation.
3. Install wall cap or roof cap (sold separately). Connect metal
ductwork to cap and work back towards the powerpack
insert location. Use 2” metal foil duct tape to seal the joints
between ductwork sections.
24" MIN - 30" MAX
ABOVE
COOKING SURFACE
POWERPACK
INSERT
WALL CAP
ROOF CAP
6"
ROUND
DUCT
OR
3¼"
X
10"
DUCT
HOUSE WIRING
HH0317A
3¼" X 10" DUCT
FIG. 1
MaxiMuM duct length recoMMended to achieve
80% exhaust efficiency
3¼" x 10"
Horizontal
MaxiMuM
Duct lengtH
3¼" x 10"
Vertical
MaxiMuM
Duct lengtH
6" rounD
MaxiMuM
Duct
lengtH
roof or
Wall cap
WitH DaMper
elboW(s)*
(90° anD
/or 45°)
52 ft. 83 ft. 64 ft. 1 0
43 ft. 74 ft. 55 ft. 1 1
35 ft. 66 ft. 46 ft. 1 2
*Standard elbows with 1" internal radius.
