6

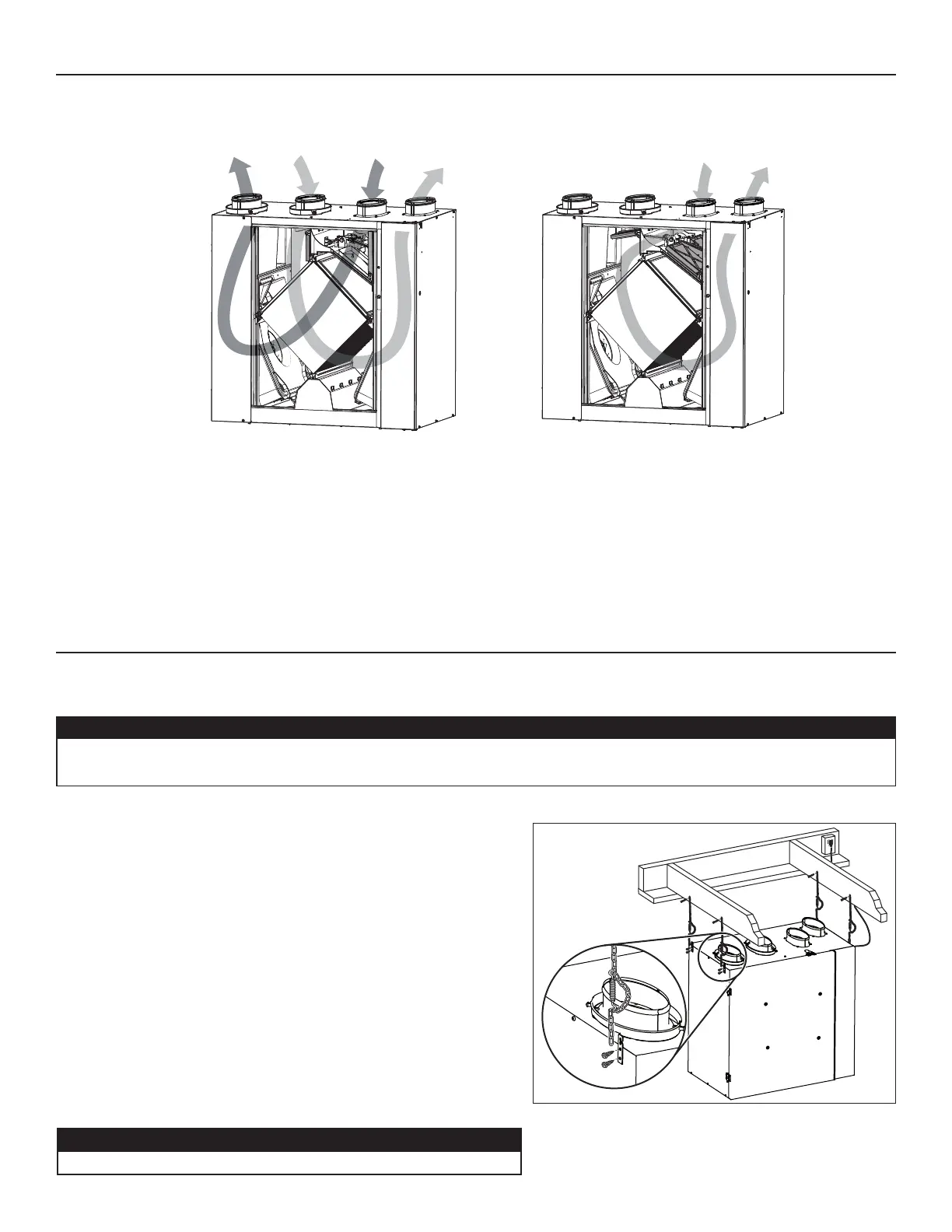

2. AIR DISTRIBUTION
norMal opEration dEFrost or rECirCUlation
VF0063
STAlE AiR
TO OuTdOORS
fRESH AiR
fROM OuTdOORS
STAlE AiR
fROM Building
fRESH AiR
TO Building
STAlE AiR
fROM Building
filTEREd AiR
TO Building
3.2 lOCATing THE uniT
Choose an appropriate location for the unit.
• Within an area of the house where the ambient temperature is kept
between 50°F and 104°F.
• Away from living areas (dining room, living room, bedroom), if possible.
• So as to provide easy access to the interior of the unit, for regular and
annual maintenance.
NOTE: There must be a 27” clearance in front of the unit to fully open
the door. In limited space, the door can be removed by lifting it
up, but there must be a 18” clearance in front of the unit to
remove the core.
• Close to an exterior wall, so as to limit the length of the insulated flexible
duct to and from the unit.
• Away from hot chimneys and other fire hazards.
• Allow for a power source (standard 3-prong grounding outlet).
• Close to a drain. If no drain is close by, use a pail to collect run-off.
The unit can be hung using provided 4 chains and springs (see at right) or
hung to the wall using provided brackets (see next page).
3. INSTALLATION
3.1 inSPECT THE COnTEnT Of THE BOx
Inspect the exterior of the unit for shipping damage. Ensure that there is no damage to the door, ports, power cord, etc.
CAUTION
In every case, make sure the unit is level.
VD0378
Unit hUng by Chains and springs
Consumer Information
A. To ensure quiet operation of the H/ERV, each product model must be installed using sound attenuation techniques appropriate for the
installation.
B. The way your heat/energy-recovery ventilator is installed can make a significant difference to the electrical energy you use. To
minimize the electricity use of the heat/energy-recovery ventilator, a stand-alone fully ducted installation is recommended. If you choose
a simplified installation that operates your furnace air handler for room-to-room ventilation, an electrically efficient furnace that has an
electronically commutated (EC) variable speed blower motor will minimize your electrical energy consumption and operating cost.
C. Installation of a user-accessible control with your product model will improve comfort and may significantly reduce the product model’s
energy use.
Make sure that no piece of mineral wool will enter in the unit during installation. Otherwise, this could reduce
airflow and generate vibrations and noise in the unit.
CAUTION
