11

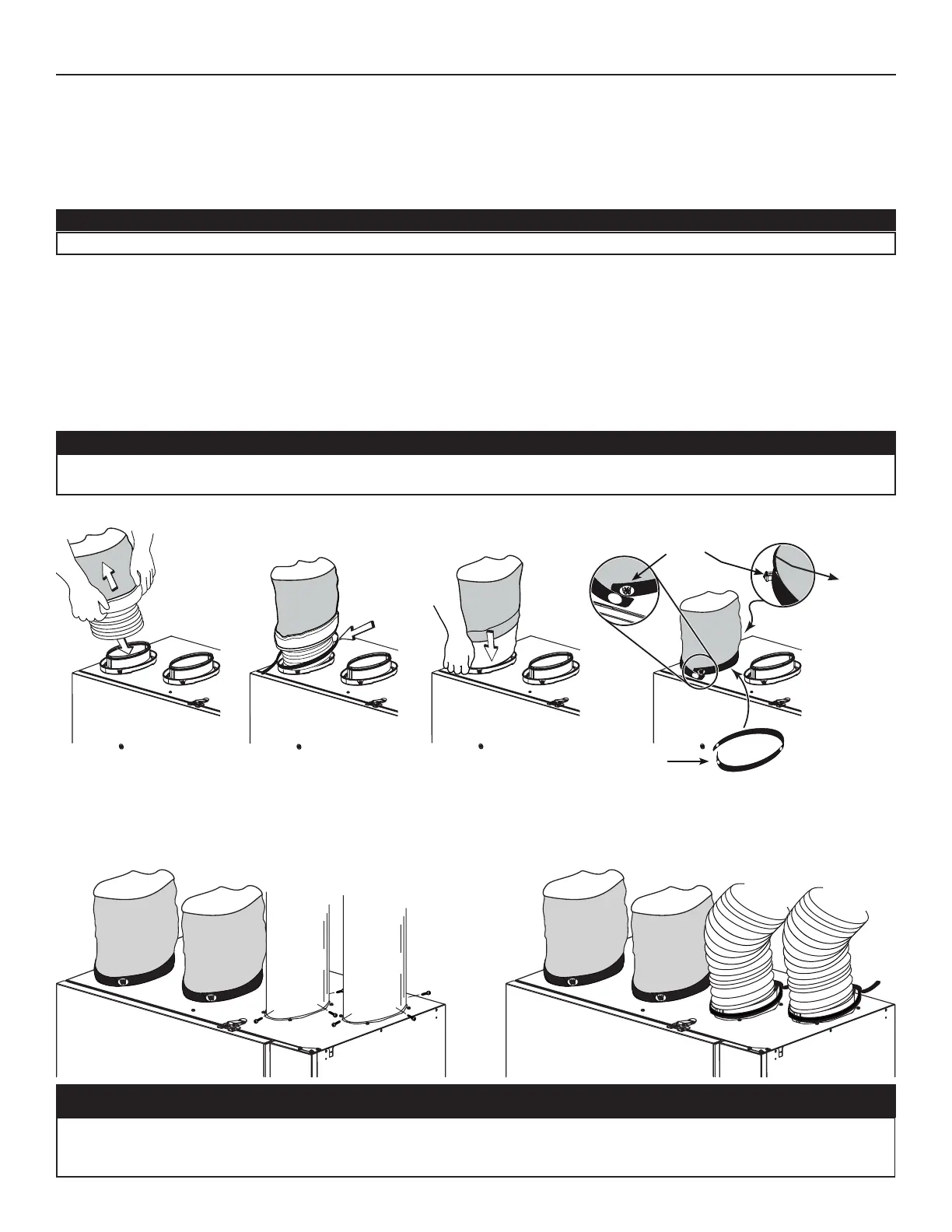

3. INSTALLATION (Cont’d)
3.6 COnnECTing THE duCTS TO THE uniT
nOTE: All unit ports are were created to be connected to ducts having a minimum of 6” diameter, but if need be, they can be connected
to bigger sized ducts by using an appropriate transition (e.g.: 6” diameter to 7” diameter transition).
Insulated flexible ducts
Use the following procedure to connect the insulated flexible ducts to the ports of the unit (Exhaust air to outdoors and Fresh air
from outdoors ports).
CAUTION
If ducts have to go through an unconditioned space (e.g.: attic), always use insulated ducts.
Pull back the insulation to expose the flexible 6 in. round duct.
Attach the flexible duct to the port using tie wrap.
Pull the insulation over the joint and tuck in between the inner and outer rings of the double collar without compressing it to
minimize possible condensation buildup within the duct, as well as minimize building heat loss and gain.
Pull down the vapor barrier (shaded part in illustrations below) over the outer ring to cover it completely. Fasten in place the vapor
barrier using the port strap (included in unit parts bag). To do so, insert one collar pin through vapor barrier and first strap hole,
then insert the other collar pin through vapor barrier and center strap hole and close the loop by inserting the first collar pin in the
last strap hole to create an air-tight path and to minimize building heat loss and gain and reduce the potential for condensation.
CAUTION
Make sure the vapor barrier on the insulated ducts does not tear during installation to avoid condensation within
the ducts.
VJ0
132
Non-insulated rigid ducts
Use metal screws and duct tape to connect the rigid ducts to the
unit ports.
Non-insulated flexible ducts
Use tie wraps to connect the flexible ducts to the unit ports.
VJ0133
Collar pins
strap
CAUTION
Make sure to replace insulation around any openings made in the building envelope when installing unit or
ducting. Seal insulation with tape or caulk to minimize building heat loss and gain and to reduce the potential for
condensation.
