20

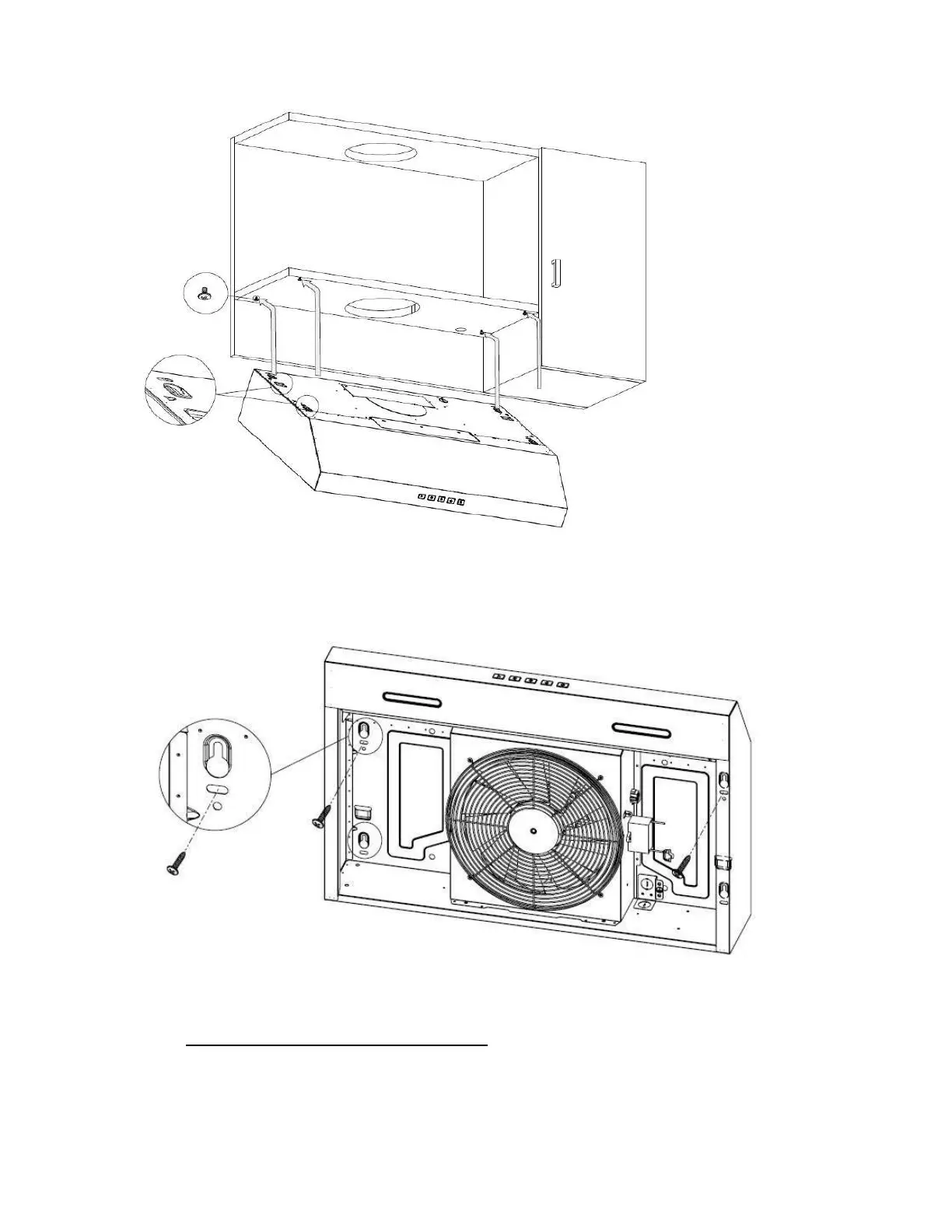

4. While holding the hood, run the house power cable into the hood through the strain
relief previously installed.
5. Use 2 pcs ST 3/16” x 11/16” screws (large flat head self tapping) to fix the hood.
6. Then tighten the other 4 pcs ST 3/16” x 11/16” screws that are installed at step 2.
7. (FOR DUCTED INSTALLATION ONLY)
Connect the ductwork to the hood and use metal foil duct tape to make joints secure
and air-tight. Make sure the damper assembly (or round duct plate) enters the
ductwork and that the damper opens and closes freely.
