19
Install the Hood (Standard Installation)
1. Run house power cable between service panel and hood location.

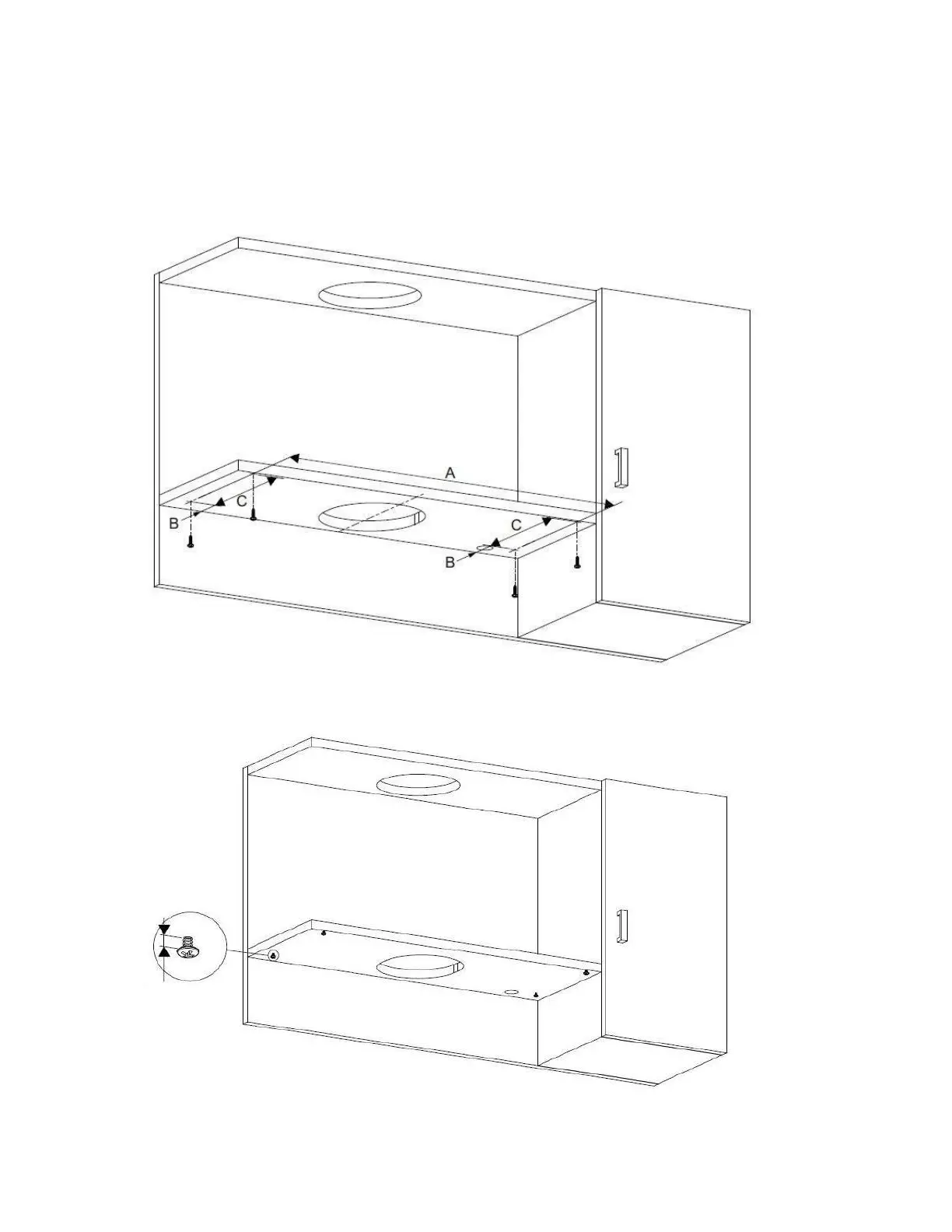

2. Installing 4 pcs ST 3/16” x 11/16” screws (large flat head self tapping) into the
cabinet according to the positions on the below drawing.
A=27 1/4" ; B=2 1/16" ; C=9 1/16"
NOTICE: Leave1/8" between the screw head and the cabinet.
3. Lift the hood. Insert the 4 holes onto the screws. Slide the hood in place.
1/8"
