Prepare the Hood Location
This manual covers 2 kinds of installation: the standard (without EZ1 brackets)
and the EZ1 one-person installation system (using included brackets).

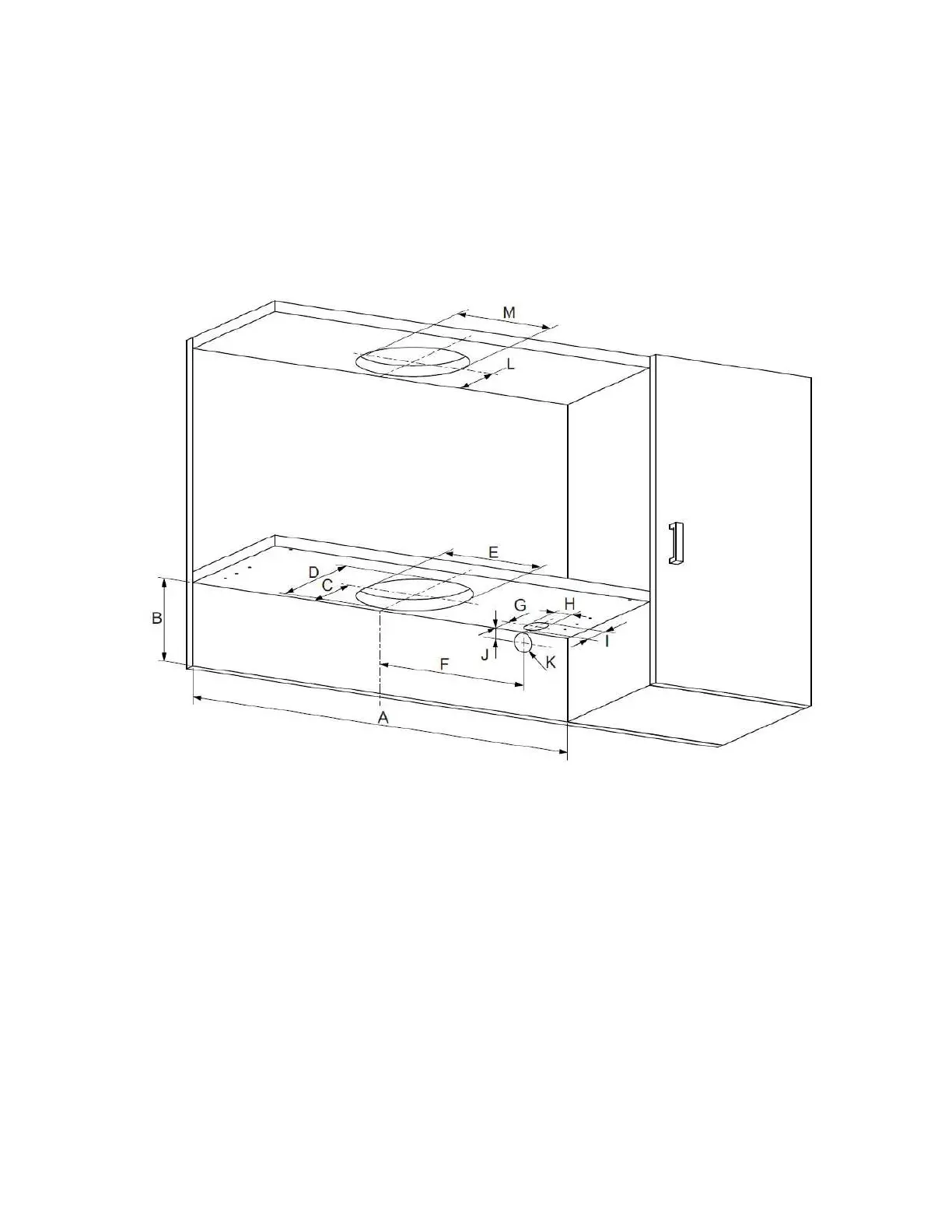

Cut the ducting holes and the hole for the wire to go through inside the cabinet,
according to the ducting way you choose.
For 7” round duct
A= 30 1/8" ; B= 6” for GLA, 5 1/8 " for MTR ; C=4 7/8" ; D=8 7/16" ; E=φ 7 7/8" ;
F=7 5/16" ; G=1 3/4" ; H=φ 1 3/8" ; I=2 3/16"; J=13/16"; K=φ1 3/8"; L=4 9/16";
M=φ 7 7/8"
