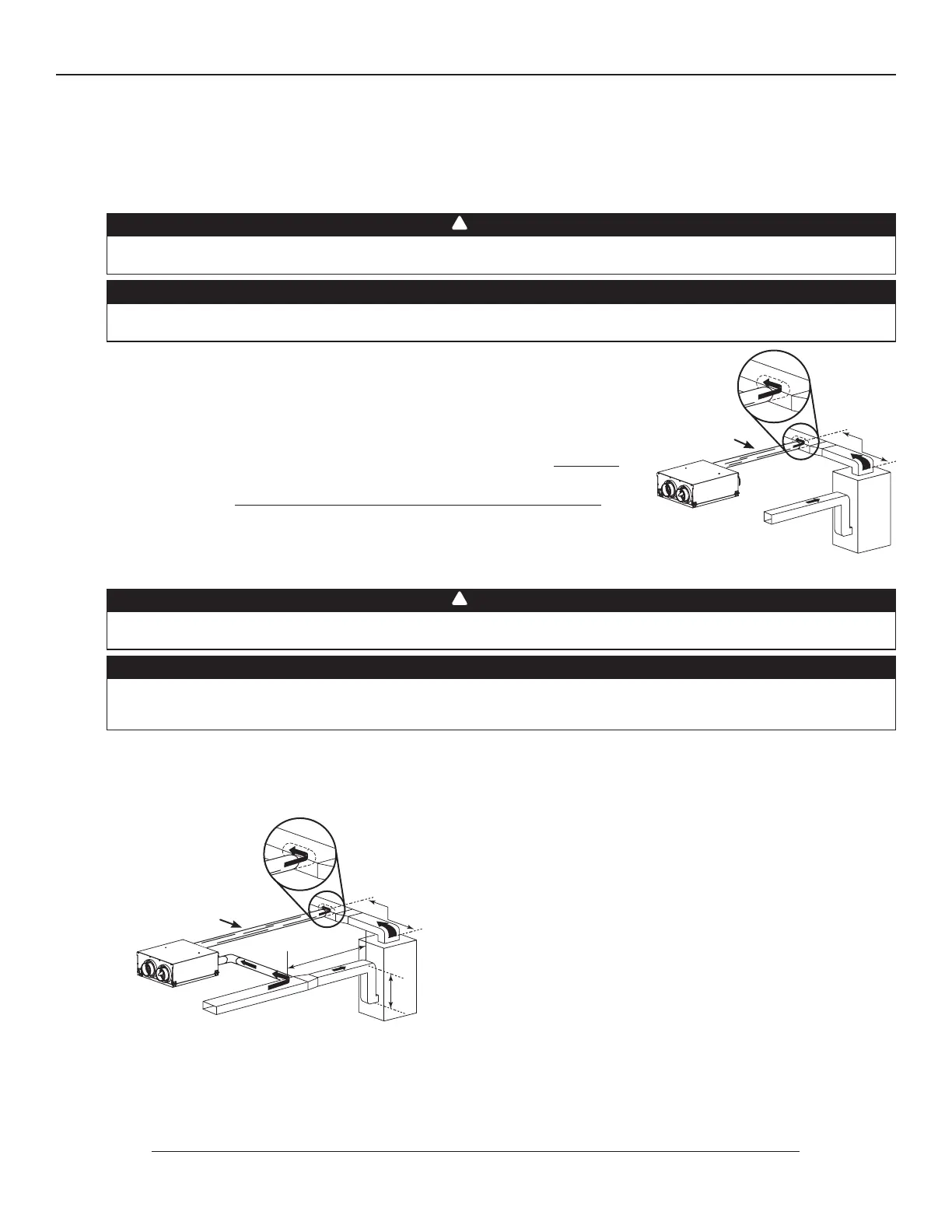

2. INSTALLATION (Cont’d)
2.6 insTalling THe ducTWork and regisTers (conT'd)
2.6.2 cenTral draW poinT sysTem (as illusTraTed in secTions 1.1.2 and 1.2.2)
Stale air exhaust ductwork:
Same as for Fully Ducted System, described on point 2.6.1
Fresh air distribution ductwork:
There is one method for connecting the unit to the furnace/air handler:
Supply side connection
• Cut an opening into the furnace supply duct at least 18 inches from the furnace/air
handler.
• Connect this opening to the Fresh air to building port of the ERV (use steel duct, see
figure at right).
• Make sure the ERV duct forms an elbow inside the furnace/air handler ductwork.
• If desired, interlock (synchronize) the furnace/air handler blower operation
(see Section 4).
WARNING
When performing duct connections, always use approved tools and materials. Respect all corresponding laws and
safety regulations. Please refer to your local building code.
!
CAUTION
When performing duct connections to the furnace supply duct, this duct must be sized to support the additional
airflow produced by the ERV. Also, use a steel duct.
VJ0126
steel duCt
MiniMuM 18"
2.6.3 simpliFied insTallaTion (as illusTraTed in secTion 1.1.3)
There is one method for connecting the unit to the furnace/air handler:
Stale air intake:
• Cut an opening into the furnace/air handler return duct not less than 10 feet from the furnace/air handler (A+B).
• Connect this opening to the Exhaust air from building port of the ERV.
Fresh air distribution:
• Same instructions as Supply side connection, Section 2.6.2.
NOTE: It is not essential to synchronize the furnace blower operation with the unit operation, but we recommend it.
CAUTION
When performing duct connections to the furnace supply duct, this duct must be sized to support the additional
airflow produced by the ERV. Also, use a steel duct. For a Return-Return installation, the furnace blower must be in
operation when the ERV is in operation.
VJ0124
B
A
steel duCt
MiniMuM 18"
a+B= not less
than 10'
WARNING
When performing duct connections, always use approved tools and materials. Respect all corresponding laws and
safety regulations. Please refer to your local building code.
!
Supply-return connection
