11

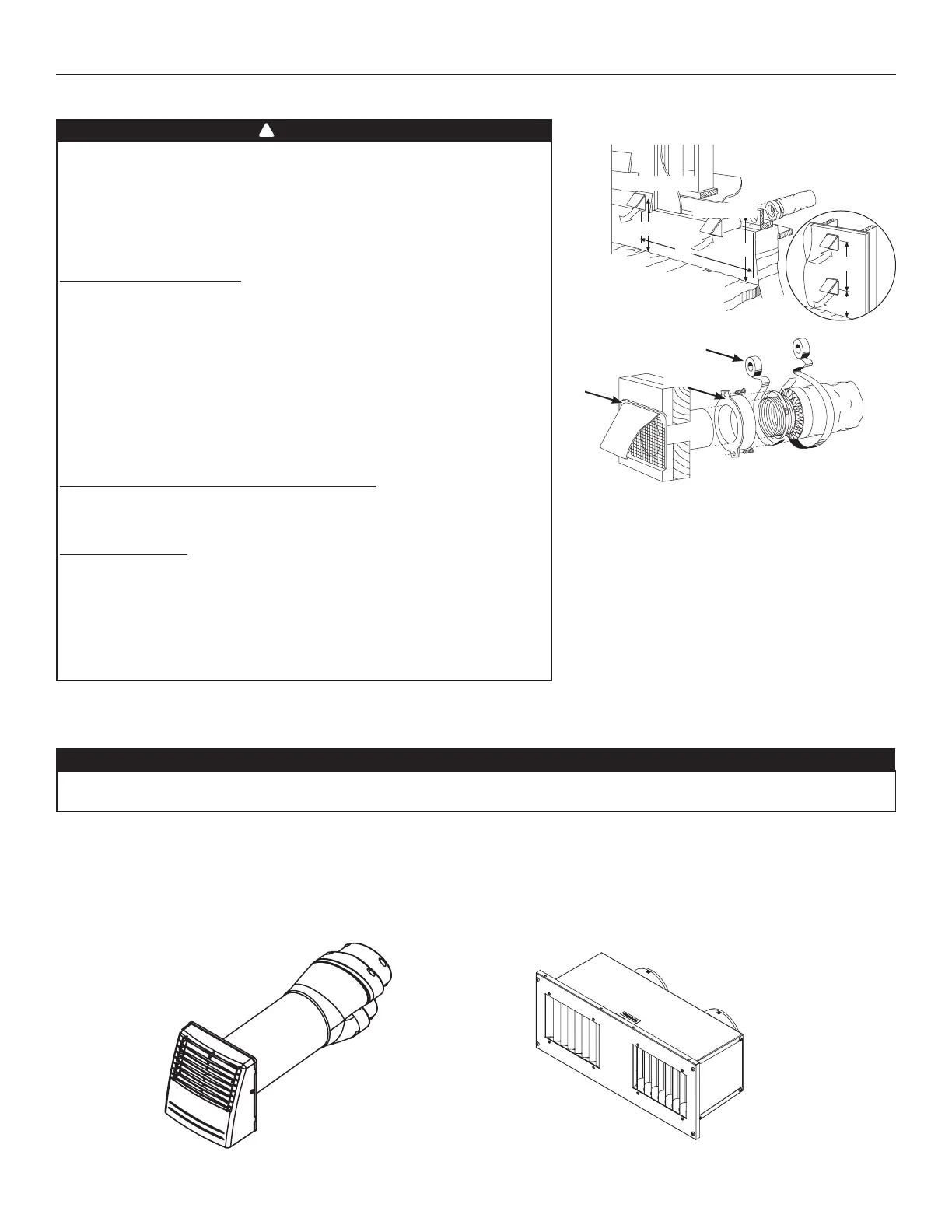

2. INSTALLATION (Cont’d)
2.8 insTalling 2 exTerior Hoods
Refer to figure above for connecting insulated ducts
to the exterior hoods. An “Anti-gust intake hood”
should be installed in regions where a lot of snow
is expected to fall.
WARNING
Make sure intake hood is located at least 10 feet away from any of the
following:
• Dryer exhaust, central vacuum vent
• Gas meter exhaust, gas barbecue-grill
• Any exhaust vents or chimney from a combustion source
• Garbage bin and any other source of contamination such as parking lots,
streets
For multifamily buildings only:
Make sure exhaust hood is located at least 3 feet away from any of the following:
• Property lines
• Operable openings into buildings (door, window)
• Intake and exhaust hood(s) shall be protected with corrosion-resistant
screens, louvers or grilles having openings not less than
1/4 inch and not larger than 1/2 inch.
• Install hood(s) at least at 18 inches away from the ground OR depth of
expected snow accumulation, whichever is greater.
To minimize cross-contamination of exhausted stale air into the fresh air intake:
Single detached, attached homes and townhouses:
• Maintain a 6 feet minimum separation distance between outdoor air intake and
exhaust hoods OR use an approved factory-built intake/exhaust combination
termination fitting.
Multifamily buildings:
• Maintain a 10 feet minimum separation distance between outdoor air
intake and exhaust hoods OR use an approved factory-built intake/exhaust
combination termination fitting.
Ignoring these recommendations could significantly degrade the quality of the
incoming air which, in some cases, could result in health consequences. In the
event of a conflict between our recommendations and any local requirements,
the latter shall have priority.
!
VD0028
exhaust hood
intake hood
tape and duCt tie
B
optional duCt
loCation
If desired, a Tandem transition kit can be used instead of 2 exterior hoods.
• An additional backdraft damper (not included) must be installed on the stale air to outdoors duct following common best
practice. Should the backdraft damper cause an interruption in the insulation of the stale air to outdoors duct, make sure that
insulation is added around the backdraft damper to avoid condensation.
• Follow the instructions included with the tandem termination kit.
*Patented.
CAUTION
If using a Tandem Transition, a backdraft damper must be installed on the stale air to outdoors duct. If this causes an interruption
in the duct insulation, insulation must be added around the backdraft damper to avoid condensation.
2.9 insTalling a Tandem
®
TransiTion* kiT
VR0003
Tandem VTYIK1
VR0021
Tandem V14695
a B
B
a
Caulking
Caulking
Legend:
A - Single family ≥ 6 ft
Multifamily ≥ 10 ft
B - 18" or depth of expected snow accumulation
