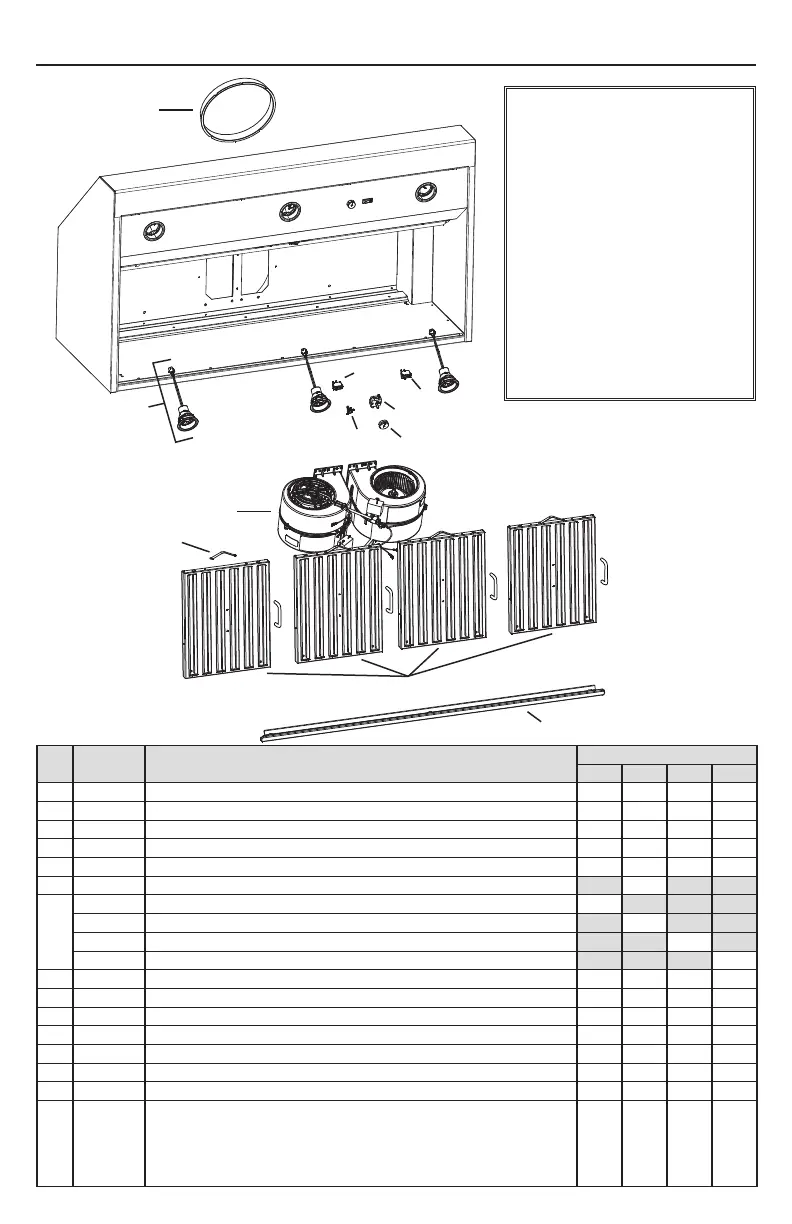

17. SERVICE PARTS
REPLACEMENT PARTS AND REPAIRS
In order to ensure your unit
remains in good working condition,
you must use Broan-NuTone
genuine replacement parts only.
Broan-NuTone genuine replacement
parts are specially designed for each
unit and are manufactured to comply
with all the applicable certification
standards and maintain a high
standard of safety. Any third party
replacement part used may cause
serious damage and drastically
reduce the performance level of your
unit, which will result in premature
failing. Broan-NuTone recommends
to contact a certified service depot
for all replacement parts and repairs.
KEY
NO.
P
ART NO.DESCRIPTION
QTY. (RANGE HOOD WIDTH)
36” 42” 48” 60”
1 SV08541 10” R
OUND ADAPTER 1111
2 SV16569 L
IGHT SOCKET AND TRIM ASSEMBLY 2233
3 SV08582 B
LOWER 2222
4 SV08337 F
ILTER SPRING (SET OF 6) 1111
5 SV60675 BAFFLE FILTER 11.84” X 15.125” (SPRING AND HANDLE INCLUDED) 3245
SV60716 B
AFFLE FILTER 8.84” X 15.125” (SPRING AND HANDLE INCLUDED)2
6
SV60695 G
REASE RAIL 36” 1
SV64678 G
REASE RAIL 42” 1
SV60696 G
REASE RAIL 48” 1
SV60697 G
REASE RAIL 60” 1
7 SV02563 L
IGHT ROCKER SWITCH 1111
8 SV08095 F
AN KNOB 1111
9 SV03435 H
EAT SENTRY™ THERMOSTAT 1111
10 SV21722 S
PEED CONTROL 1111
11 SV08548 M
AIN POWER SWITCH 1111
* SV06750 B
ROAN ELITE LOGO 1111
* SV20571 I
NSTALLATION GUIDE 1111
* SV04216
P
ARTS BAG: 3 WATERPROOF WIRE CONNECTORS, 2 NO. 8 X 5/8” SCREWS,
6
NO. 10 X 2” HEX. HEAD SCREWS, 4 NO. 10 X 2” FLAT HEAD SCREWS,
2
WALL ANCHORS, 6 WASHERS 3/16” ID X 3/4” OD, 4 STAINLESS STEEL 10-32
LOCKNUTS, 2 WIRE CLAMPS LP16-AP, 2 NO. 8 X 3/8” ZINC-PLATED SCREWS,
8
NO. 8 X 3/8” STAINLESS STEEL SCREWS
1111
* N
OT SHOWN.
HL0187
