2.2.2 Scale Installation
1. Attach the support column to the bracket at the back of the scale base using the three
mounting screws. Use a 3mm hex (Allen) key to tighten the screws. See Figure 3.

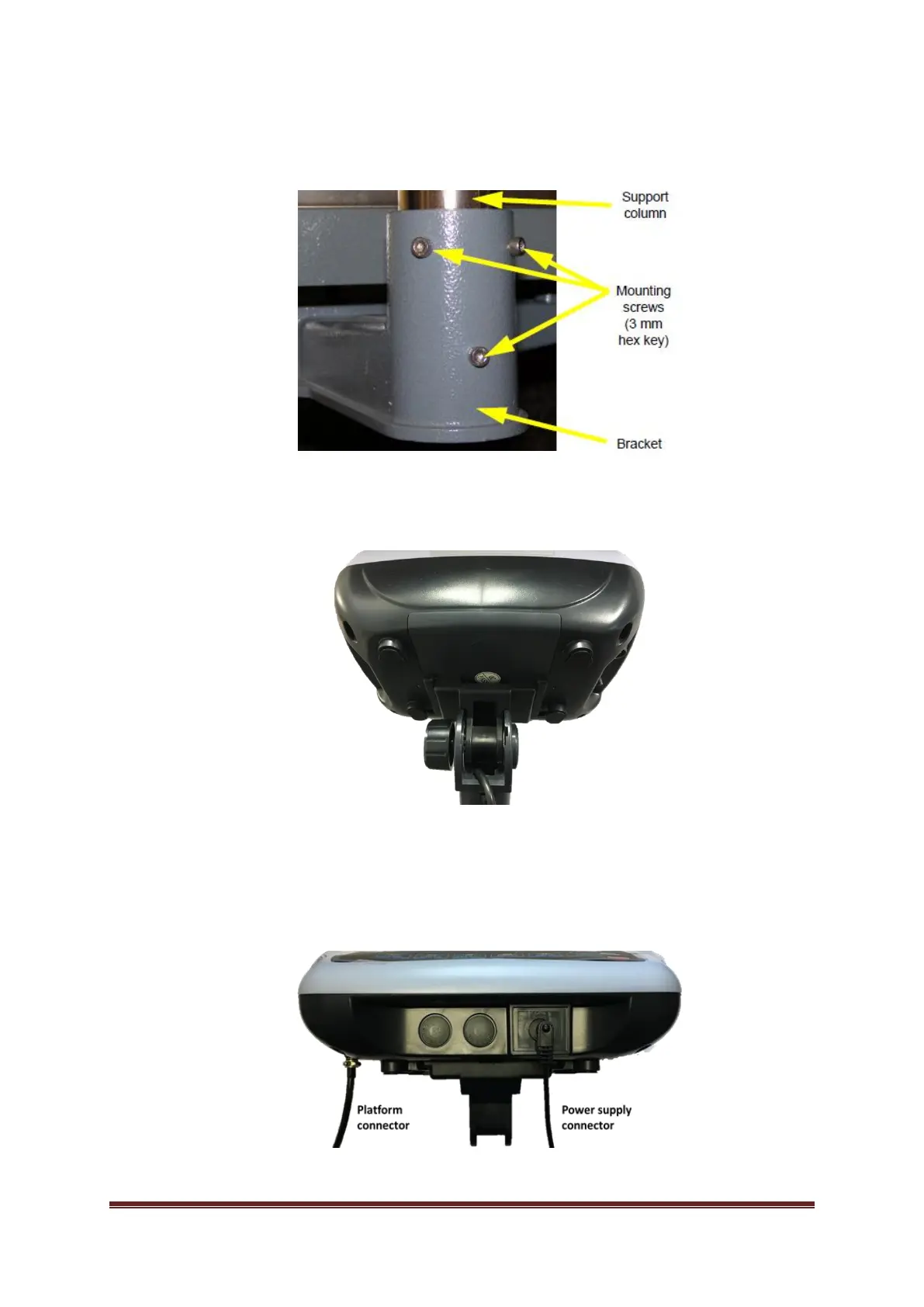

Fig. 3 Insert column into bracket and secure with three screws
2. Place the indicator on the top bracket as shown in Figure 4 and slide it down until it snaps into
the final position. Loosen the adjustment knob shown in Figure 4 and adjust the indicator’s
angle for best viewing of the display, then tighten the knob.
Fig. 4 Slide indicator head onto column bracket
3. The cable from the base to the indicator is run through the column and out through the plastic
bracket at the top when you unpack the scale. Make sure the connector is free of
obstructions, i.e. packing foam, and plug the cable into the connector, as shown in Figure 5.
Tighten the threaded collar.
4. Attach the AC power adapter to the connector on the back of the indicator. See Figure 5.
Fig. 5 Signal cable plugged into back of the indicator
