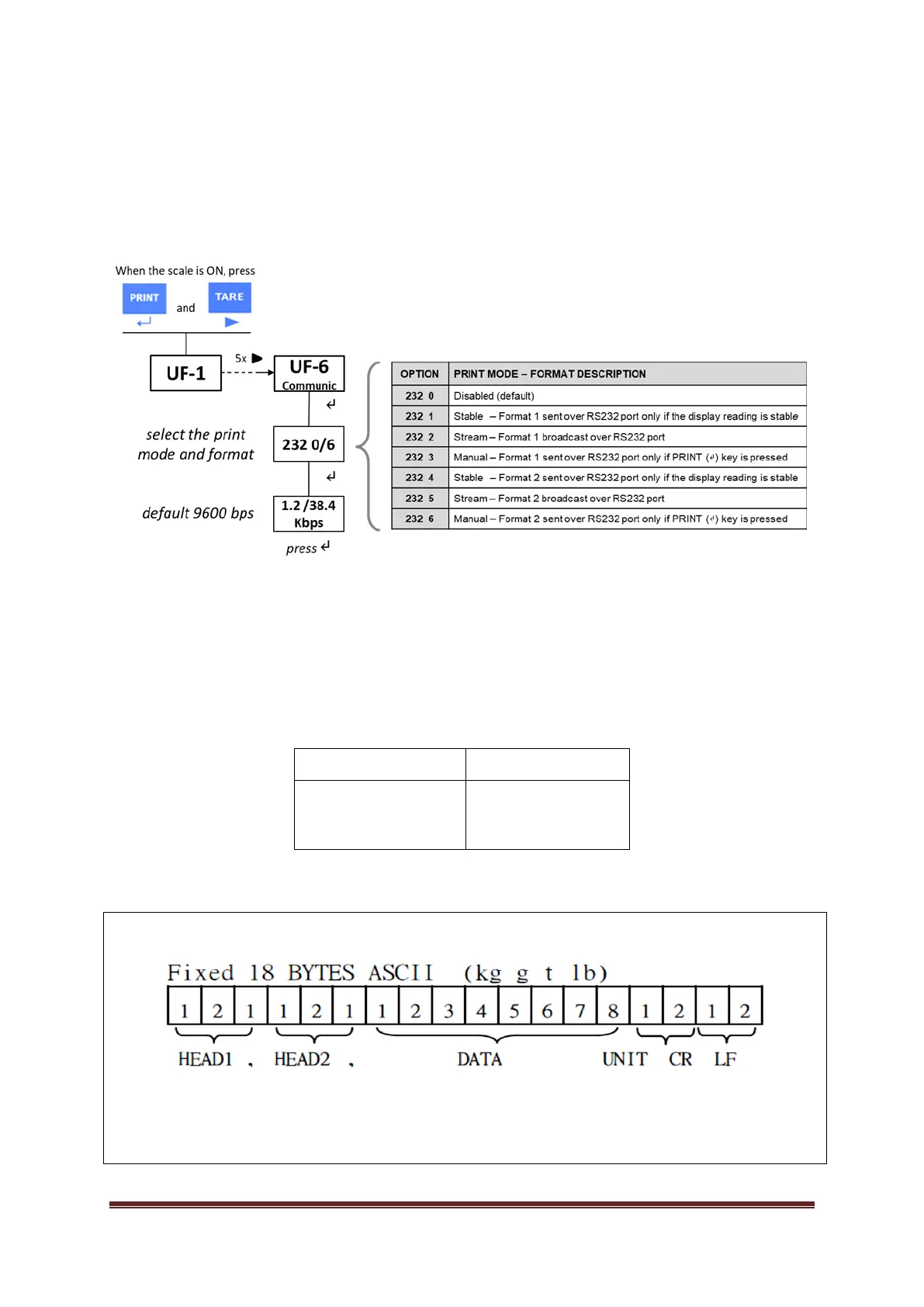

7.3 Communication Settings [UF-6]
Enter the function UF-6 under the User Menu to select the print mode and format to be sent out over
RS232 connector when the Kit p/n AWT15-501905 is installed.
UF - 6 factory default: 232 0 (disabled)
Navigate the options by pressing ZERO (◄), TARE (►) and increase a numeric value by SELECT
(▲) key. Press UNITS (ESC) to exit the option or the menu and PRINT (↵) key to confirm.
Valid baud rate speeds are: 1200, 2400, 4800, 9600, 19200 and 38400bps.
7.4 Print Out Formats
FORMAT 1 – String structures for UF-6 Modes RS232 1 / 3
Based on the weighing condition and mode selected, Format 1 adds by default at the beginning of the
print string two headers of 2 bytes each before Data (weight value), Units (metric, imperial or sample
pieces) and CR/LF characters.
HEAD 1
HEAD 2
OL Over Load
ST Stable
US Unstable
NT Net weight
GS Gross weight
Three Format 1 strings are then attainable as shown below:
FORMAT 1 – Print String when the Metric Units are enabled
Print Out Examples
ST,GS,+ 5.00kg = Stable Gross Weight 5.00 kg
OL,GS,+ 157.00kg = Over load Gross Weight 157.00 kg
