IDENTIFICATIONIDENTIFICATION
48 cm mini
3 cm mini
30 cm mini
56 cm / 26,5 cm
30 cm mini
5,8 cm mini
70 cm mini

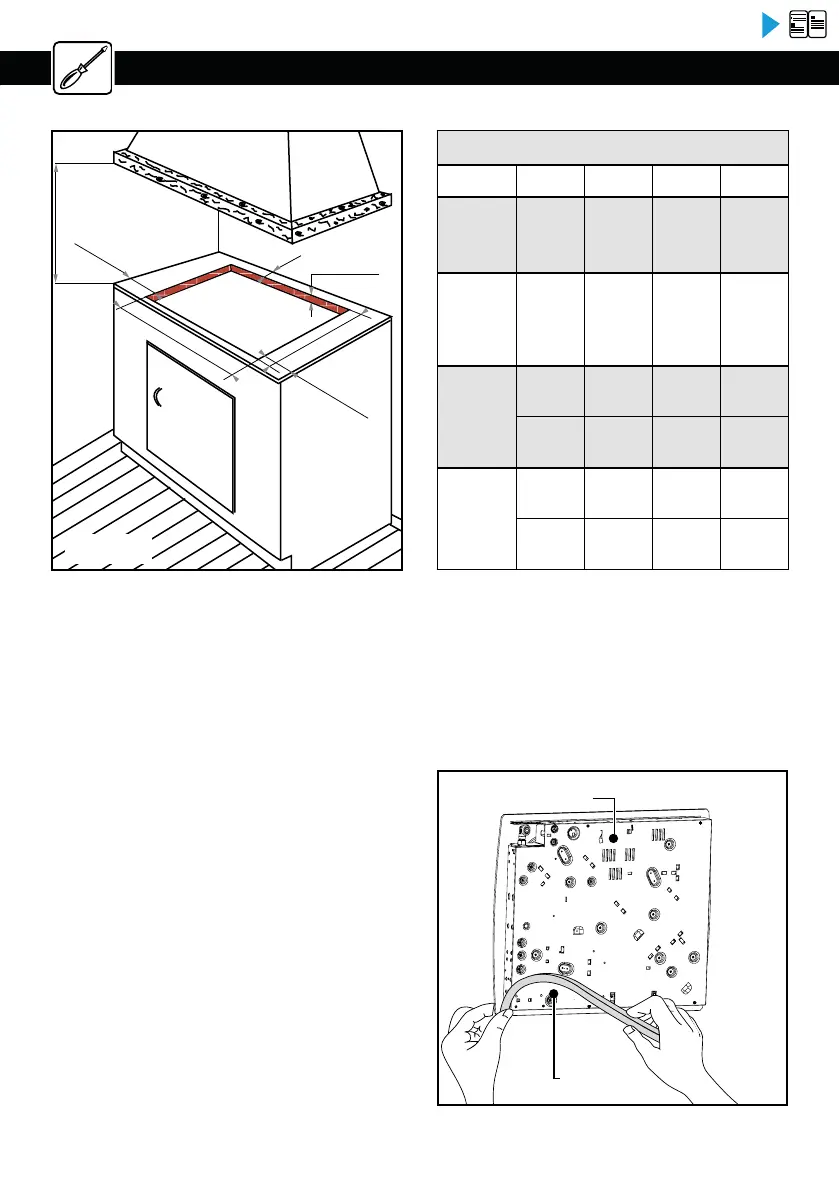

Fig. 01
APPLIANCE
Width Depth Thickness Model
Cut cabinet
standard
56 cm 49 cm
according
to cabinet
60 cm
Cut cabinet
standard
26.5 cm 49 cm
according
to cabinet
30 cm
Dimension
total above
the work
top
71 cm 52 .2 cm 5 cm 60 cm
31 cm 51 cm 5 cm 30 cm
Dimension
total below
the work top
55.4 cm 47 cm 5.1 cm 60 cm
26 cm 47 cm 5.1 cm 30 cm
Your appliance shoud be built in the surface of a
support cabinet that is a minimum of three cm
thick, made of a material that resists heat or that
is covered with such a material.
So as not to disturb movement of cooking
utensils, there should not be to the right or left
or back any obstacle within 30 cm of the hob.
if a horizontal divider wall is positioned under
the hob, it should be placed between 10 cm
and 15 cm away from the top of the work top.
In any event, do not store aerosol cans or
containers under pressure in any compartment
that may exist under the hob (See “Safety
Recommendations” chapter).
— Turn the hob over and carefully place it on top
of the opening in the cabinet so asnot to damage
the knobs and spark plugs.
— To ensure a tight seal between the housing
and the work top, glue the foam seal along the
exterior edge of the housing (Fig. 02).
Fig. 02
Housing
Seal
Proper positioning
Flush mounting
Ensure that the hob and the work top are
leaktight, glue the seal provided in the front
pocket before installing the hob:
Follow the diagram (Fig. 01).
— Remove the pan supports, the burner covers
and burner heads, noting their positions.
INSTALLATIONINSTALLATION
EN
