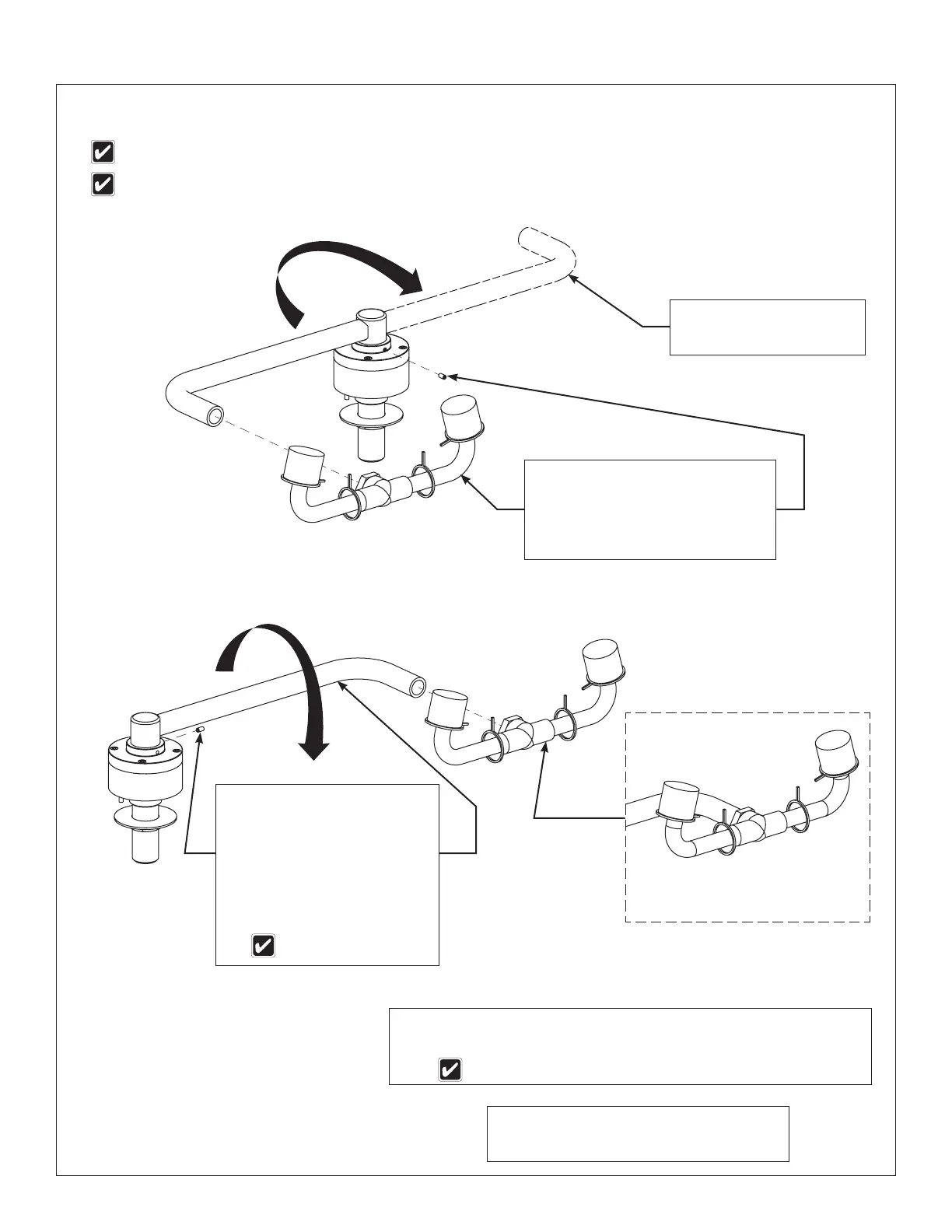

S19-270C, S19-270E, S19274C, S19274E Installation
10/5/2017 Bradley • 215-1326 Rev. V; ECN 15-05-042
Installation — Left-Hand Units (Classic)
Classic eyewash unit is shown. Classic eye/face wash unit is similar.
Apply pipe sealant (supplied by installer) to all male-threaded pipe joints.
Slowly open the water supply lines to
relieve air and pressurize the valve. Test
the unit for leaks and adequate flow.
F
Rotate the bent arm 180°
around the valve. Using
low strength thread locker,
reinstall the set screw
into the valve in the new
location shown until it
bottoms out, then back off
½ turn.
Arm must swing freely.
C
Mount the unit onto the deck. Refer to the instructions on page 6 for
eyewash units or page 7 for eye/face wash units.
The left-hand unit must be installed on the left side of the deck.
E
Remove the sprayhead from the
bent arm. Remove the set screw
from the valve assembly with an
Allen key (1/16"(1.5mm)). Set
the two items aside.
A
Rotate the bent arm
180° around the valve.
B
Reattach the sprayhead to the
bent arm, resealing as necessary.
D
