S19-500 Series & S19-505 Series Installation
7/6/2021 Bradley • 215-1910 Rev. D: ECO 21-05-013

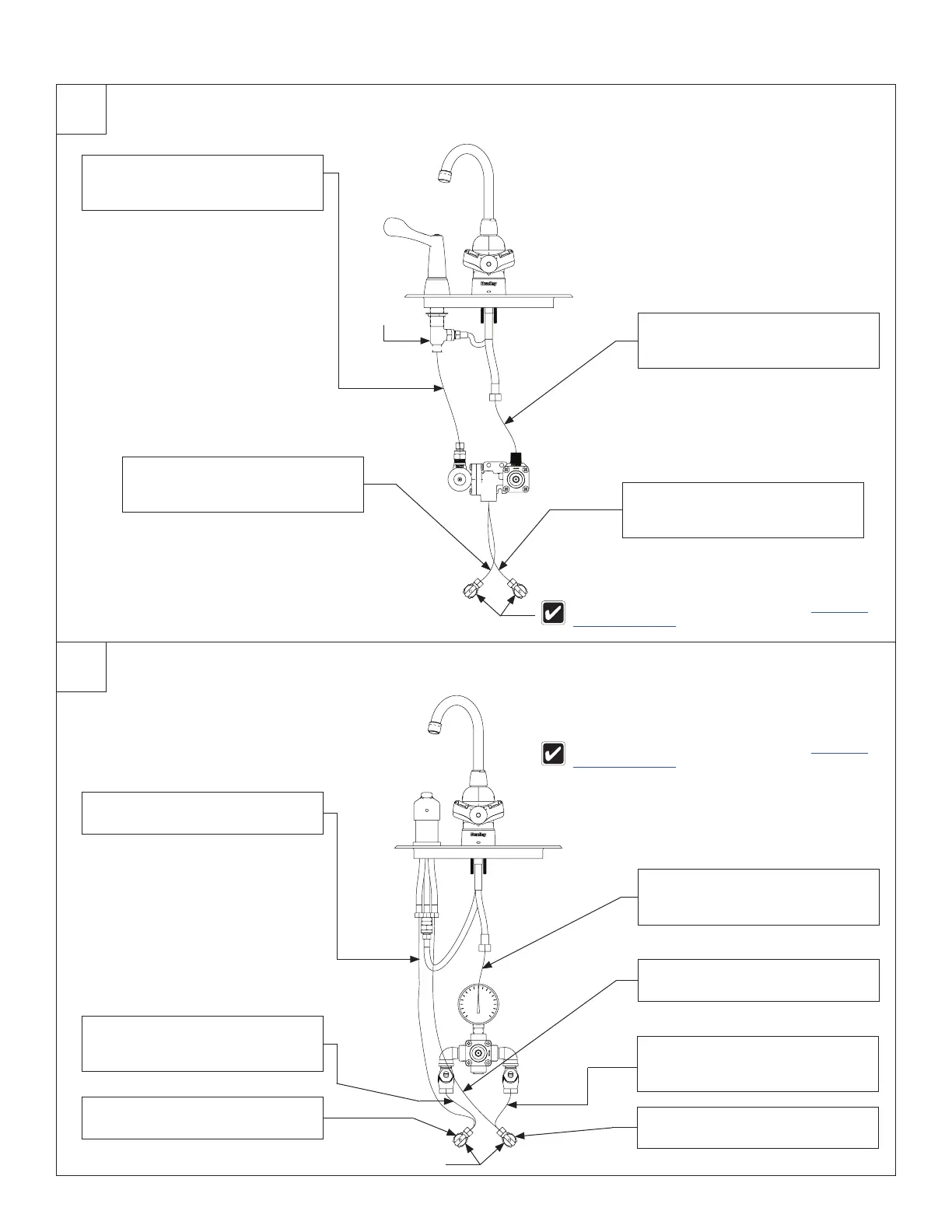

Plumb to S19-2010 Mixing Valve (S19-500T & S19-505T)
Plumb to S19-2000 Mixing Valve (S19-500M & S19-505M)
3a
3b
Connect a hose from the valve
(tempered) to the mixing valve (not
supplied by Bradley).
A
Connect a hose from the hot
supply to the hot faucet line.
A
Add tee in hot supply (not supplied
by Bradley).
F
Add a tee in cold supply (not
supplied by Bradley).
G
Connect a hose from the hot
supply to the mixing valve (not
supplied by Bradley).
C
Connect a hose from the hot
supply to the mixing valve (not
supplied by Bradley).
D
Connect a hose from the cold
supply to the mixing valve (not
supplied by Bradley).
E
Connect the ½" NPT eyewash
hose from the faucet to the mixing
valve eyewash outlet.
B
Connect the ½" NPT eyewash
hose from the faucet to the mixing
valve.
B
Connect a hose from the cold
supply to the mixing valve (not
supplied by Bradley).
D
Connect a hose from the cold
supply to the cold faucet line.
C
Valve
(Tempered)
Supply stops are not included. Refer to the S19-2010
installation manual for size and style requirements.
Supply stops are not included. Refer to the S19-2000
installation manual for size and style requirements.
Supply Stops
