Installation S19-500 Series & S19-505 Series
Bradley • 215-1910 Rev. D: ECO 21-05-013 7/6/2021

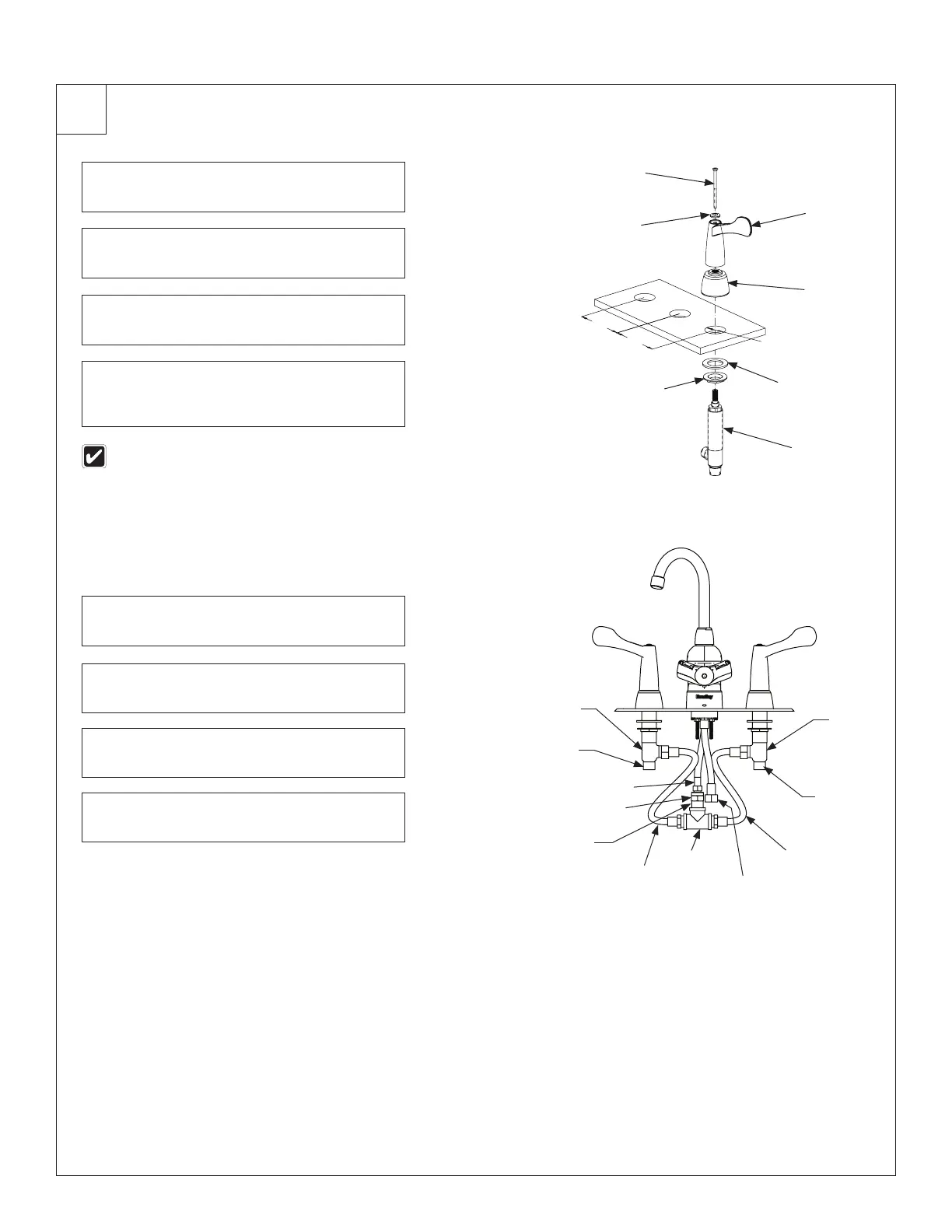

Install Faucet Hoses (S19-500W & S19-505W)
2c
Thread the nut and washer onto the valve.
Insert the valve into the sink deck from the
bottom.
Thread the bonnet onto the valve assembly from
the top, and tighten the nut from the bottom.
Slide the handle onto the valve assembly. Place
the washer onto the handle and install the handle
screw.
Plumb the eyewash hose to the eyewash supply.
Plumb the faucet hose to the tee using the
provided nipple and fitting.
Plumb the hoses from the side ports on each
valve to the provided tee.
Plumb the faucet supply to the bottom of the valve
assembly (hose supplied by installer).
A
B
C
D
E
F
G
H
Valve
(Hot)
Valve
(Cold)
Tee
Faucet Hose
Hot Faucet
Hose
Cold Faucet
Hose
½" NPSM
Cold Inlet
½" NPSM
Hot Inlet
½" NPSM
Eyewash Inlet
Valve
Nut
Washer
Washer
Bonnet
Handle
Handle
Screw
Repeat Steps A–D for both handle assemblies.
4"
(102)
4"
(102)
1½" Dia.
Close
Nipple
³⁄₈" Compression Adapter
(discard ferrule and nut)
