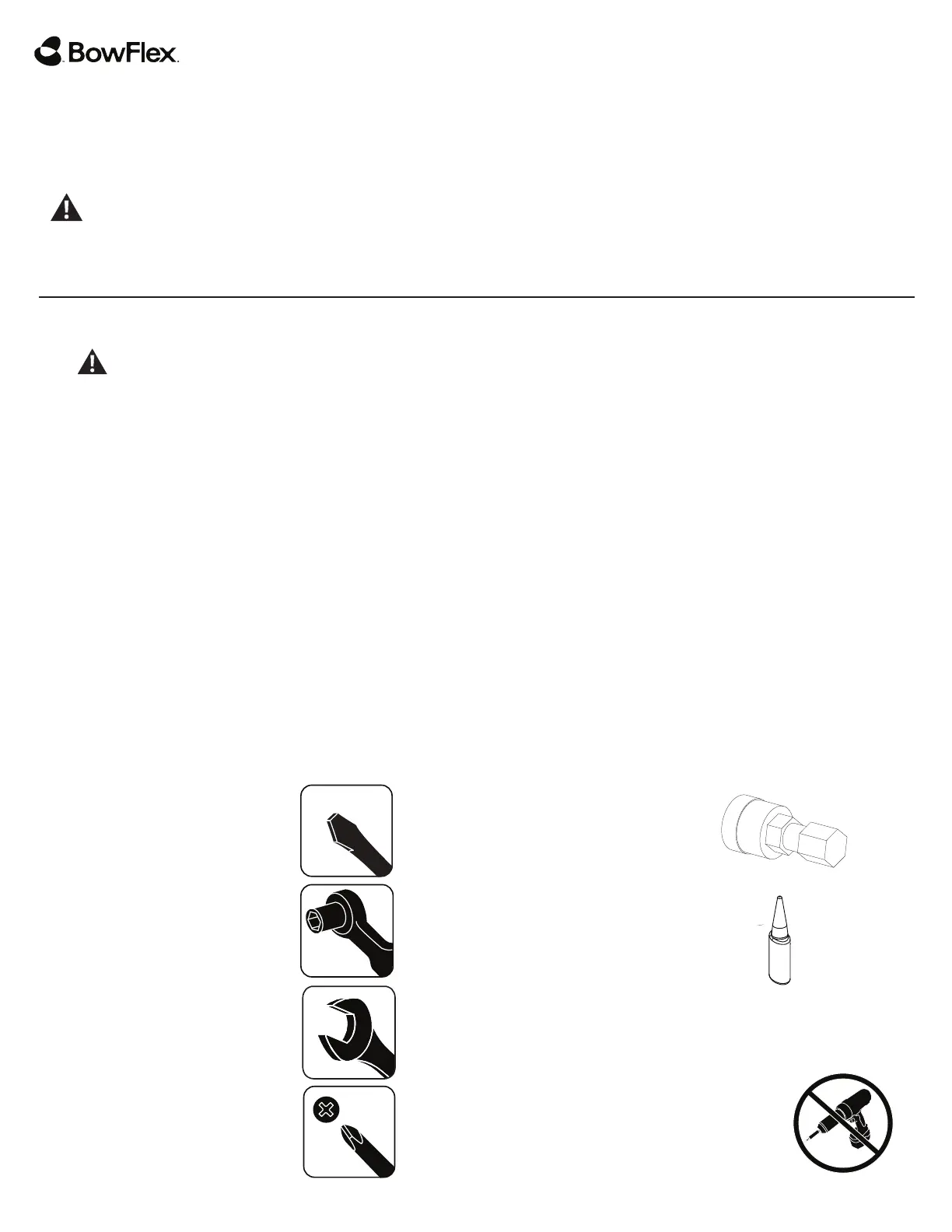

Tools Required (not included)
25 mm crank puller
16 mm Socket and wrench
15 mm Open end wrench
or adjustable wrench
#2 Phillips screwdriver
Replace the Base Hub PCBA on the
BowFlex
™
IC Bike SE/SEi Exercise Bikes
Skill Level: III
8031281.101523.A
Replacement Procedure
NOTICE:This document provides instructions for the replacement of the Base Hub PCBA (External Sensor Hub) and mount on the
BowFlex
™
IC Bike SE / SEi (Model Year 2023) Exercise Bikes.
f you need assistance, please call BowFlex Customer Service (if purchased in US/Canada) or your local distributor (if
purchased outside US/Canada). To find your local distributor, go to: global.bowflex.com
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious
injury. Read and understand all Warnings on this machine.
17
13
14
26
12
2
4
3
10
6
5
7
8
21
16
23
9
18
20
19
25
22
24
1
11
15
27
28
29
Important Safety Instructions - Before servicing or using this equipment, obey the following warnings:
This icon means a potentially hazardous situation which, if not avoided, could result in death or
serious injury. Read and understand all Warnings on this machine.
• Read and understand the Part Replacement Procedure before working on the machine. Failure to obey the
instructions could cause injury to the service technician or bystanders.
• Keep bystanders and children away from the product being serviced at all times.
• Make sure that the repair is done in an appropriate work space away from foot traic and exposure to
bystanders.
• Some components of the equipment can be heavy or awkward. Enlist the service of a second person when you
do maintenance steps involving these components. Do not try to do heavy or awkward steps on your own.
• If replacement parts are necessary, use only genuine replacement parts and hardware supplied by
BowFlex. Failure to use genuine replacement parts can cause a risk to users, keep the machine from
operating correctly and void the warranty.
• Be sure that all warning stickers and instructional placards applied to the product stay present and in
good condition when doing maintenance or replacing components. If at any time the Warning labels
become loose, unreadable or dislodged, replace the labels. If purchased in US/Canada, contact Customer
Service for replacement labels. If purchased outside US/Canada, contact your local distributor for them.
• Do not try to change the design or functionality of the machine being serviced as this can adversely aect
user safety.
• Do not put the machine back in service until all shrouds, instructions, warning labels and correct
functionality have been verified and tested for correct performance.
•
SAVE THESE INSTRUCTIONS.
BowFlex Inc., www.bowflex.com, 5415 Centerpoint Parkway, Groveport, OH 43125 U.S.A. - Customer Service: North America (800) 605-3369, cs@bowflex.com |
outside U.S. global.bowflex.com | Printed in China | © 2023 BowFlex Inc. | BowFlex and the BowFlex logo are trademarks owned or licensed by BowFlex Inc., regis-
tered or otherwise protected by common law in the United States and other nations. |
ORIGINAL DOCUMENT - ENGLISH VERSION ONLY
Red Loctite
®
272 or equivalent
(high strength)
Small flathead screwdriver
(and small piece of cloth)
or auto trim tool
