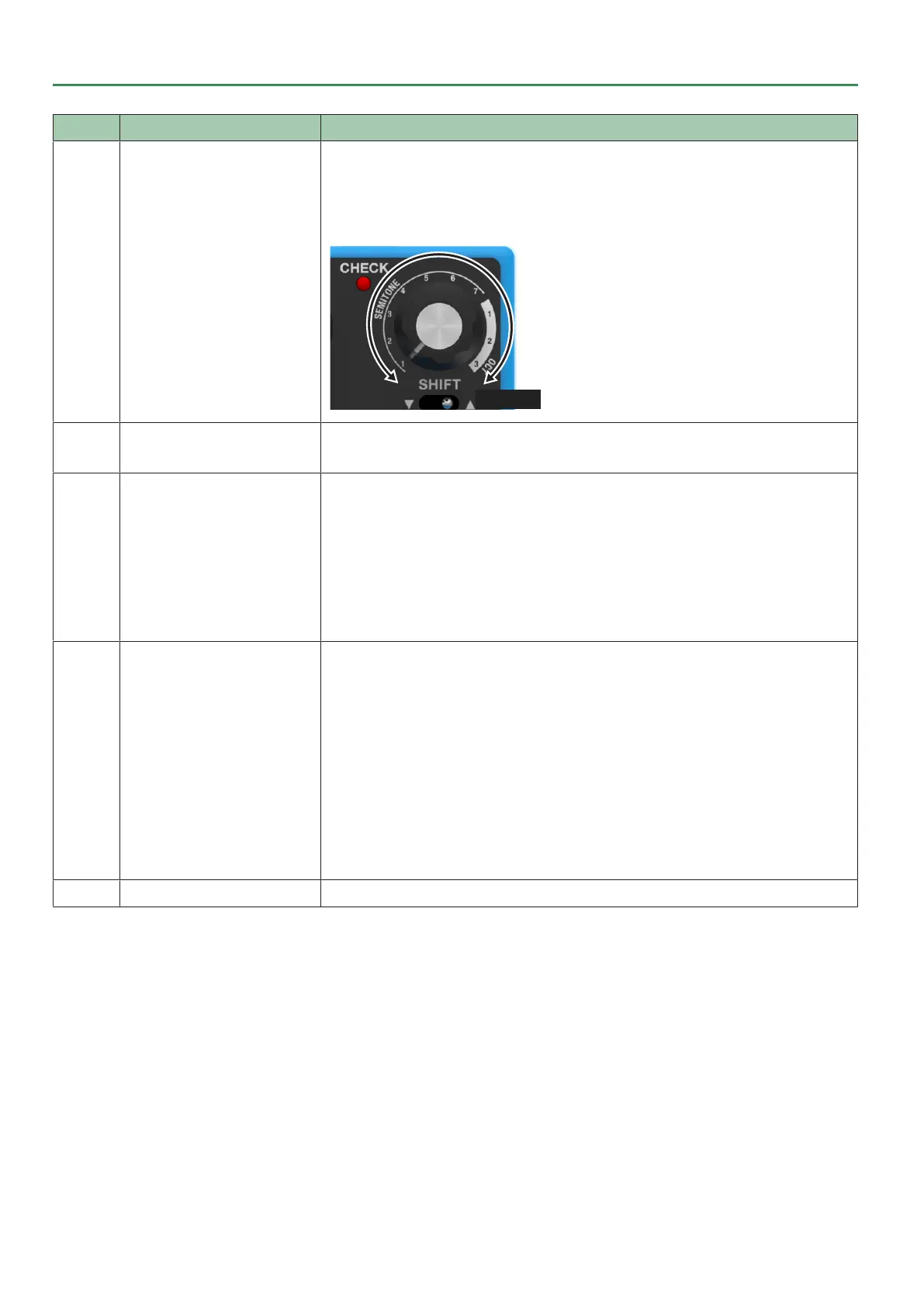

Panel descriptions
4
Number Name Explanation
6 [SHIFT] knob Adjusts the amount of pitch shift.
SEMITONE: in semitones (1–7 half steps)
OCT: in octaves (1–3 octaves)
When the [SHIFT DIRECTION] switch is set to the middle (DETUNE), the range is -20 to +20 cents.
-20 cent +20 cent
7 OUTPUT jack Connect this jack to your amplifier or effect unit.
* Do not use connection cables that contain a built-in resistor.
8 INPUT jack Connect the output of your electric guitar, other musical instrument or effect unit to this input
jack.
Use a 1/4“ phone type (TS) Ð 1/4” phone type (TS) cable to connect to this jack.
* The INPUT jack also serves as the power switch. The power turns on whenever a plug is
inserted into the INPUT jack, and turns off when the plug is disconnected. When you aren’t
using this unit, disconnect the plug that’s connected to the INPUT jack.
Ó “Turning the power on/off (p. 5)”
* Do not use connection cables that contain a built-in resistor.
9 CTL/EXP jack
Using the jack as a CTL jack
Connect a footswitch (FS-5U, FS-6, FS-7; sold separately) to control the pitch shift.
For more about the footswitch settings, refer to “Adjusting the amount of pitch shift (p. 6)”.
Using the jack as an EXP jack
Connect an expression pedal (EV-30, Roland EV-5, etc.; sold separately) to continuously change
the effect settings for the expression pedal’s pushed-up (horizontal) position and for the
pushed-down (slanted) position.
For more on function settings, refer to “Controlling the knob using an expression pedal (EXP
FUNCTION) (p. 7)”.
* Use only the specified expression pedal. By connecting any other expression pedals, you risk
causing malfunction and/or damage to the unit.
10 Pedal switch This switch turns the effect on/off.
