English • 7Installation Guide • DesignMax DM8S
PRO.BOSE.COM
Installation

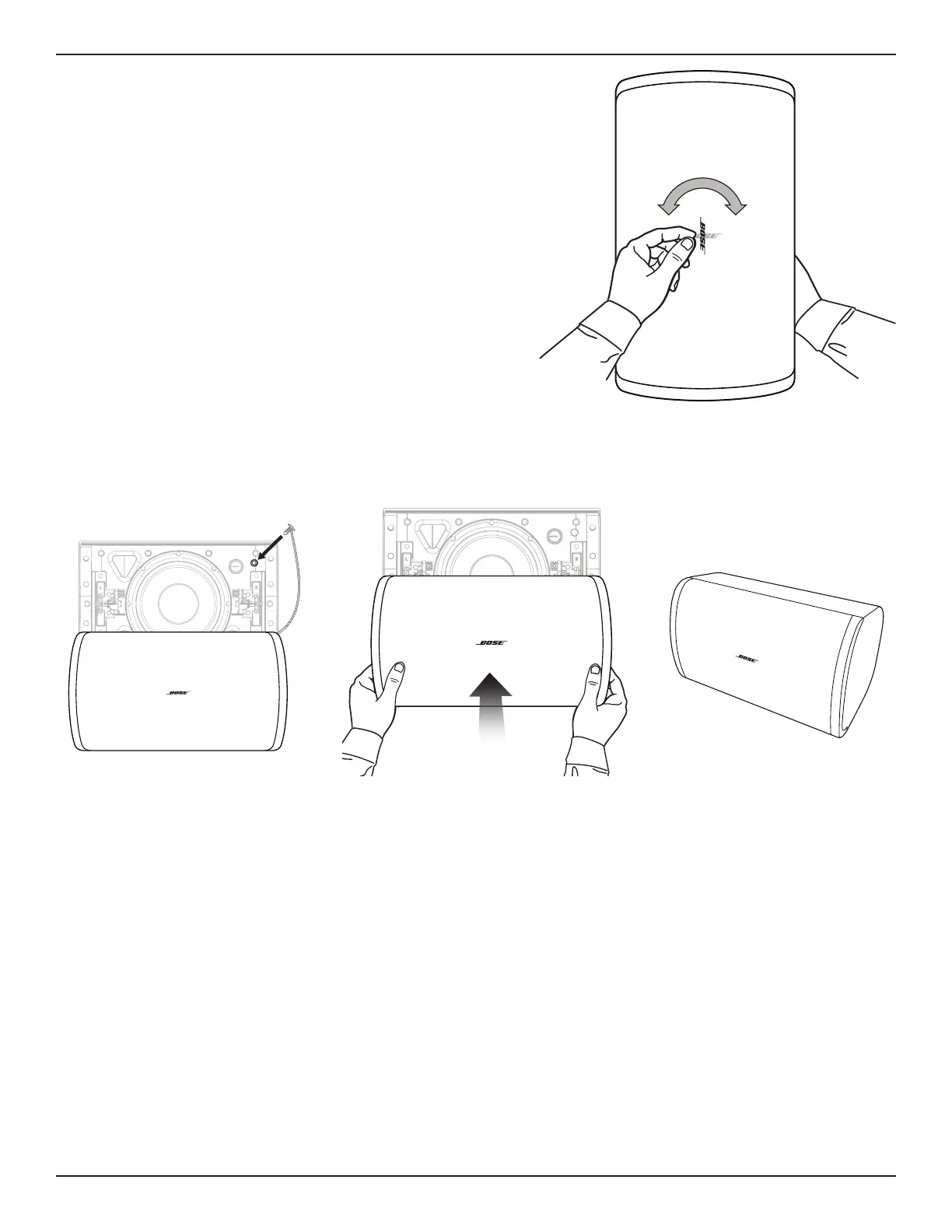

Rotating the Logo
You can rotate the Bose logo to align with your loudspeaker orientation.
With one hand, press the button on the back of the grille. Rotate
the logo with the other hand. The logo can be rotated clockwise or
counterclockwise.
Note: Do not pinch the button inward unless you intend to remove the
logo.
Attaching the Grille
Insert the safety lanyard pin into the lanyard pin hole in the loudspeaker. Using both hands, position the grille against the loudspeaker,
ensuring the grille is flush against the loudspeaker with no gaps. The grille secures to the loudspeaker magnetically.
Safety and Regulatory Compliance
The Bose DesignMax DM8S loudspeaker has passed testing and complies with the following specifications and uses:
Listed to ANSI/UL 1480A-2016, Speakers for Commercial & Safety Professional Use
General-Purpose Use - UL Category UEAY, File Number S 5591 Control Number 3N89
Suitable for installation using Class 1, Class 2, Class 3 wiring methods in accordance with NFPA 70, National Electrical Code,
2017, Article 640
The DesignMax DM8S loudspeaker has been designed to the requirements defined in the following European regulatory specification for
combination systems:
Tested to IEC60268-5, 2007
