6 • English DesignMax DM8S • Installation Guide
PRO.BOSE.COM
Installation

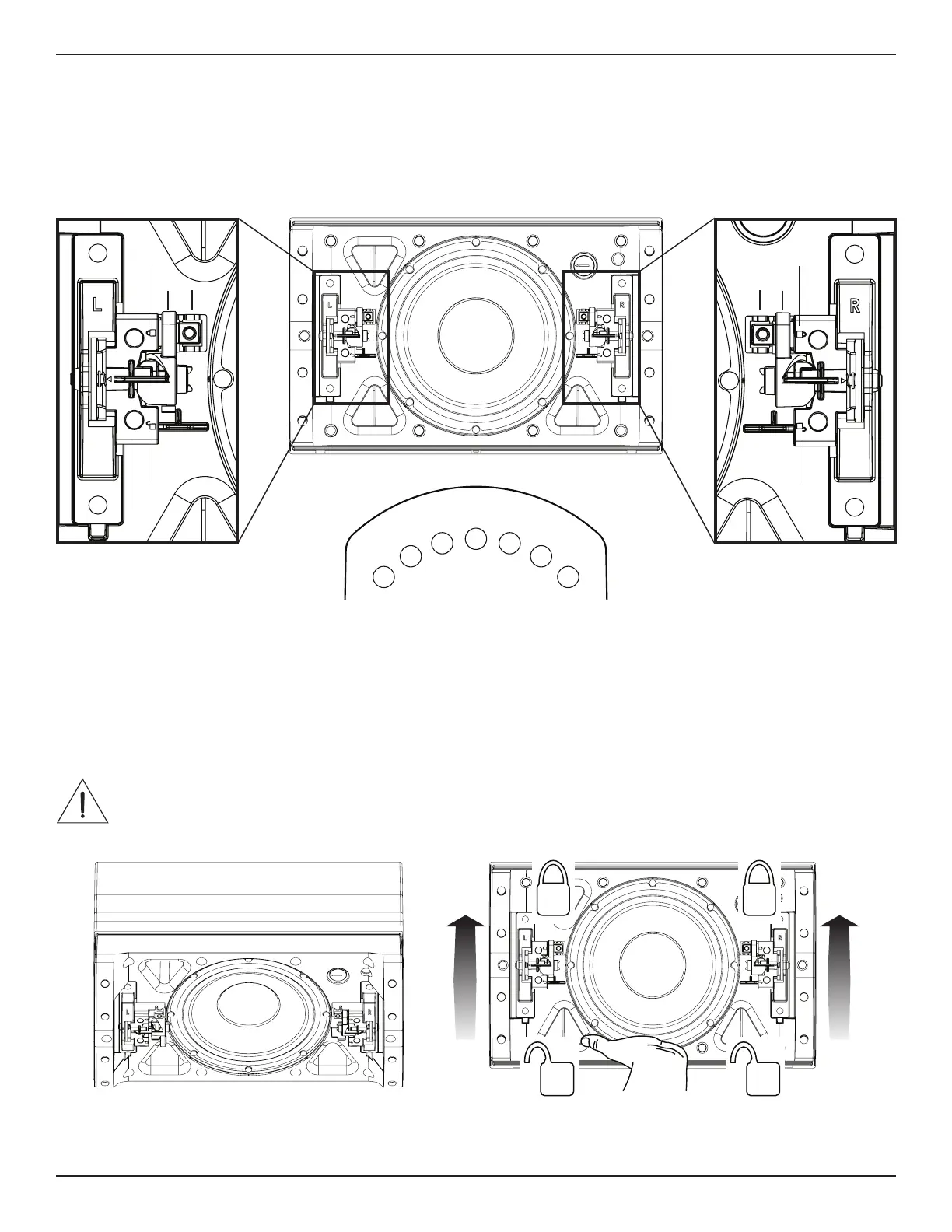

Important Mounting Information
q Lock levers: Used to secure the loudspeaker to the mounting bracket. Push the levers toward the lock pins to lock; push the levers
away from the lock pins to unlock.
w Lock pins: Press the pins down to unlock the levers.
e Lock indicators: Identify your locking direction.
r Angle labels (on bracket): Identify your desired angle position.
q qw w
e e
r
e e
4
5
3
0
1
5
0
1
5
3
0
4
5
Installing the Loudspeaker
Note: The loudspeaker is shipped with the lock levers taped down. Remove the tape before installation.
1. Attach the loudspeaker to the bracket, adjust the loudspeaker to 45°, and lock the levers into place.
2. Attach the wired connector to the loudspeaker.
3. Unlock the levers and adjust the loudspeaker to your desired angle. Make sure to support the weight of the loudspeaker while you
adjust the loudspeaker angle.
Note: The angle of the loudspeaker can be adjusted to 0°, 15°, 30°, or 45°.
4. Lock the levers into place.
WARNING: Failing to push the levers into the lock position as instructed can create a falling hazard, which can result in property
damage, serious injury, or death. It is the installer's responsibility to ensure the mounting system is installed according to the
instruction.
q e
