Installation instructions en

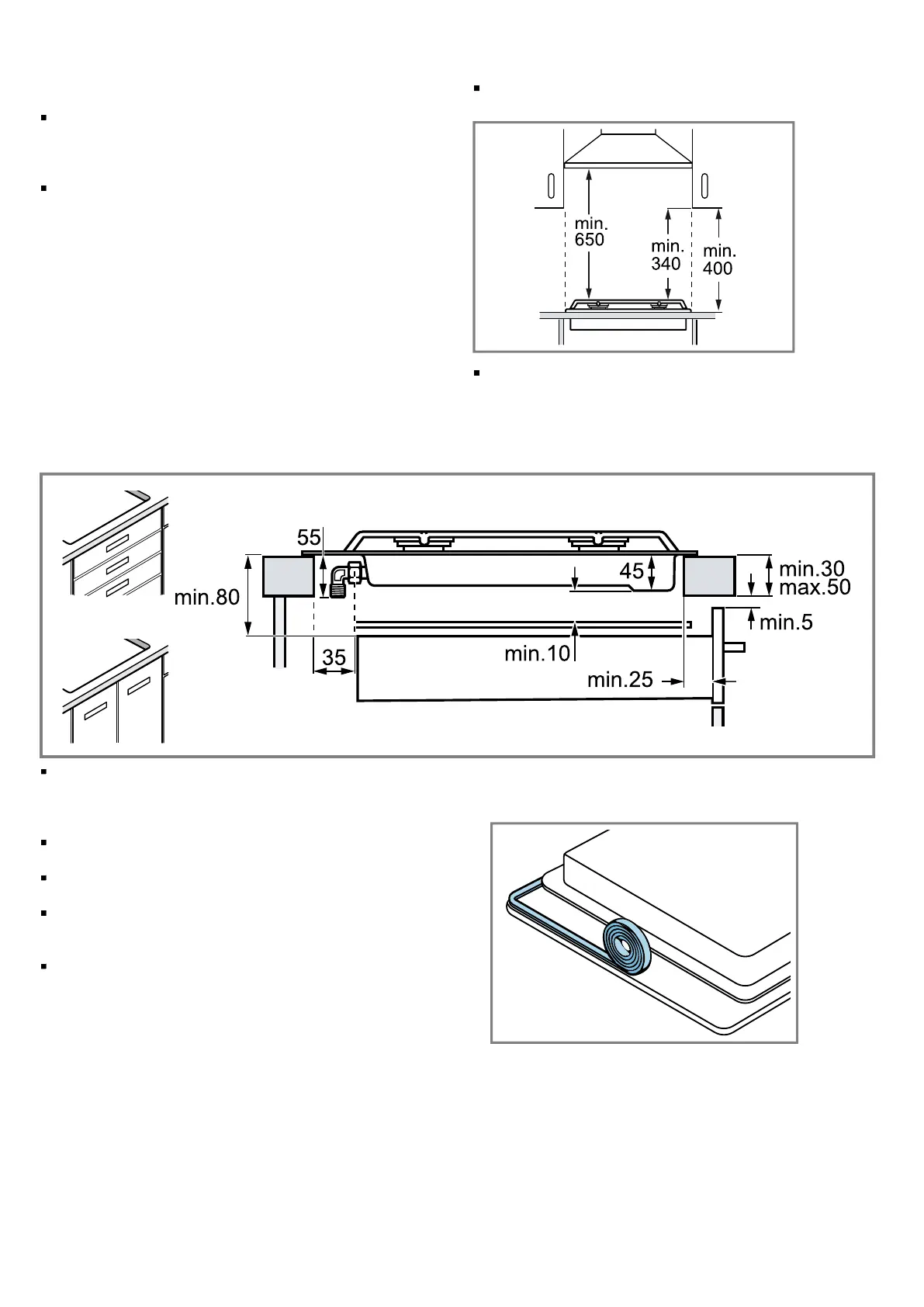

2.3 Clearances
A range hood fitted above the top must be installed
according to the installation instructions for the range
hood. A minimum distance of 650mm is required for
a range hood and 750mm for an exhaust fan.
Any combustible construction above the cooktop
must be at least 650mm above the top of the trivet
and no construction shall be within 340mm above
the top of the burner.
Height of the pan support above the worktop surface:
up to 60mm.
A minimum depth of 50mm from the top of the work-
top surface must be provided for the appliance.
2.4 Shield
If the base of the hotplate can be touched, fit a protecting shield.
The shield must be at least 10mm from the lowest
part of the hotplate and must be capable of with-
standing the appliance temperatures. Minimum thick-
ness of worktop is 30mm.
The shield material must be mdf or similar with min-
imum thickness of 12mm.
The shield overall dimensions must be 560mm wide
x 480mm deep.
Provide cutout in right hand rear of shield of 80mm
wide x 80mm deep to provide for gas regulator /
LPG connection fitting.
After installation of the shield the clearance around
the top and sides of shield will allow adequate ventila-
tion. Ensure the side and top clearances are not ob-
structed.
2.5 Positioning the appliance
Note: Do not use silicone to bond the appliance to the
worktop.
1.
Position the cooktop with the upper side facing down
on a flat, stable surface.
2.
Apply the adhesive seal supplied to the lower edge of
the cooktop. The adhesive seal prevents the penetra-
tion of liquids.
7
