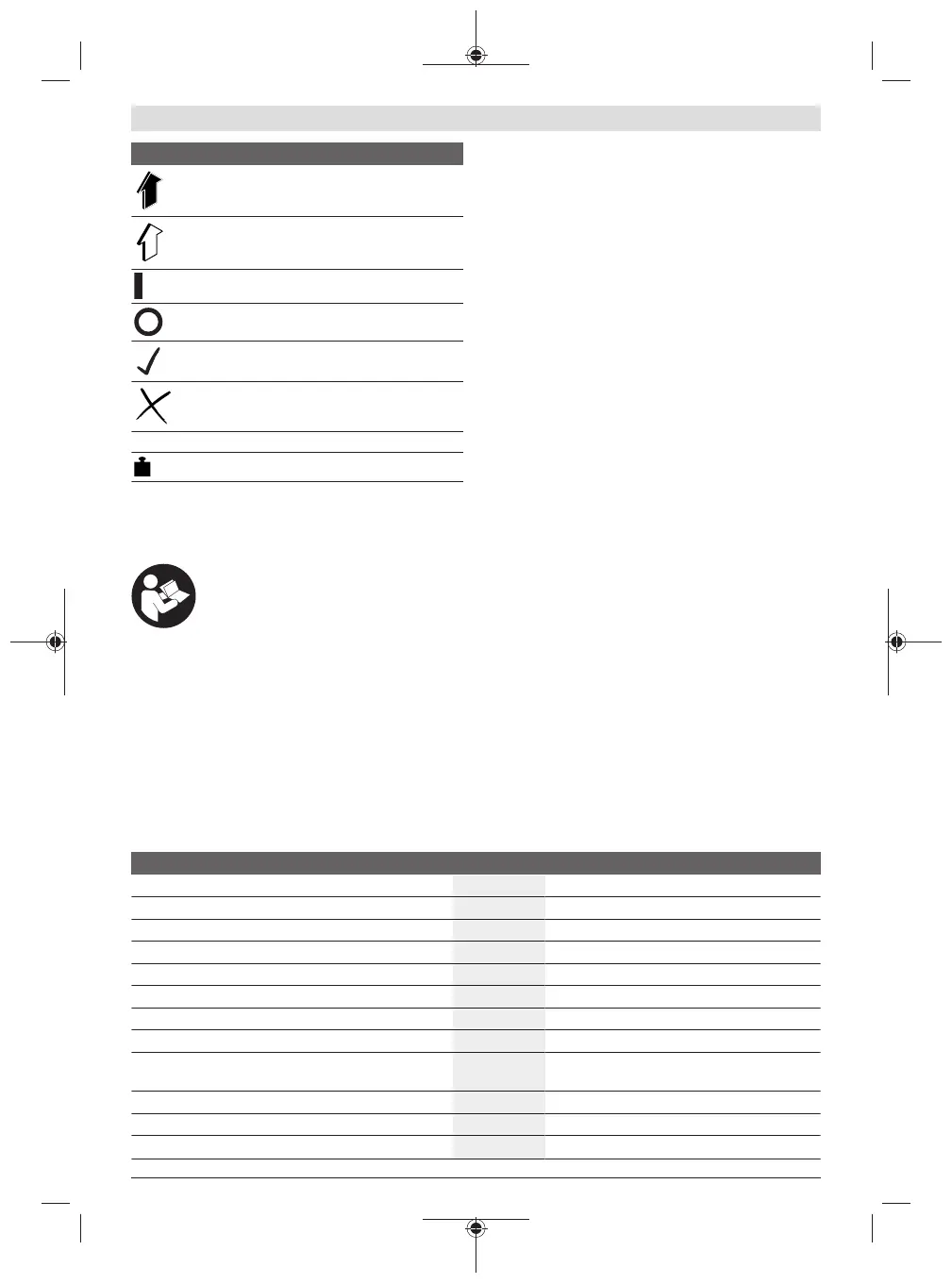

36 | English

Symbol Meaning

Movement direction

Reaction direction

Switching On

Switching Off

Permitted action

Prohibited action

CLICK!

Audible noise

Weight

Product Description and

Specifications

Read all safety warnings and all instruc-

tions. Failure to follow the safety warnings and

instructions may result in electric shock, fire

and/or serious injury.

Please observe the illustrations at the ending of this operat-

ing manual.

Intended Use

The garden tool is designed for trimming and edge cutting of

grass, light undergrowth, weeds, nettles. The product is in-

tended for use on the ground.

Product Features (see figuresA– Z)

The numbering of the product features refers to the illustra-

tion of the product on the graphics pages.

(1)

Handle

(2)

Switching lock-off button on/off for trimming

(3)

Switching lock-off button on/off for trimming edges

(4)

Battery

a)

(5)

On/Off switch

(6)

Holder for carrying strap

(7)

Lever for handle assembly

(8)

Screw for shaft mounting

(9)

Element for shaft mounting

(10)

Holding clip for plant protector

(11)

Plant protector

(12)

Protection guard

(13)

Spool

(14)

Pro-Tap button

(15)

Screw for mounting protection guard

(16)

Shoulder strap

(17)

Charger

a)

(18)

Battery release button

(19)

Battery status indicator

(20)

Arrow on spool

(21)

Safety handle

(22)

Spacer

(23)

Cutting blade protection

(24)

Cutting blade

(25)

Dome washer

(26)

Nut for blade mounting

(27)

Line-feed button

a)

This accessory is not part of the standard scope of delivery.

Technical Data

Grass trimmer GRT 18V-40

Article number

3 600 HD0 2..

Rated voltage

A)

V 18

No-load stroke speed

A)

min

-1

3300−5300

Cutting diameter mm 2.4

Cutting diameter (line) cm 40

Cutting spool capacity m 3

Plant protector ●

Weight according to EN62841-4-4

A)

- with battery kg 5.2 kg (4.0Ah) −

6.0kg (12.0Ah)

- without battery kg 4.6

Serial number see type plate on garden tool

Recommended ambient temperature during charging °C -5 ... +35

F 016 L94 625 | (12.11.2024) Bosch Power Tools
