81
Installation
www.bora.com
EN
Removing the front support

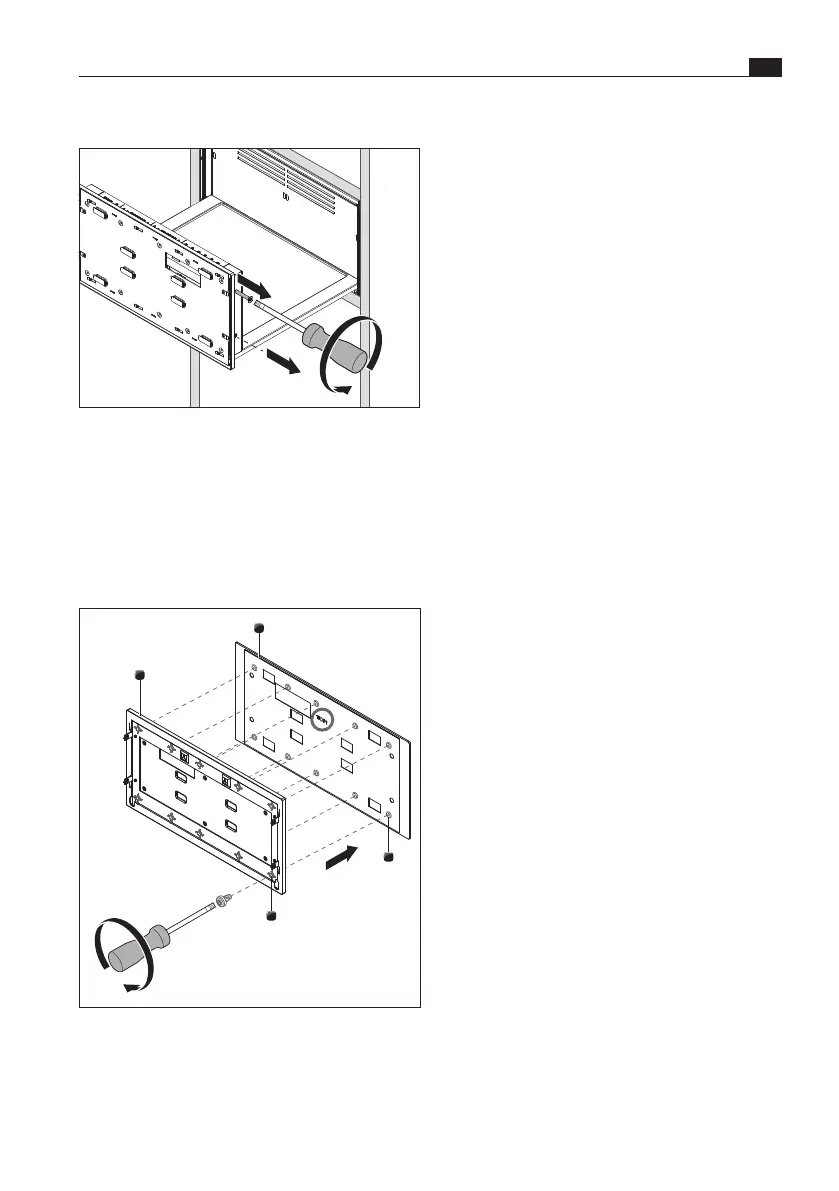

Fig. 9.16 Removing the front support
X Open the drawer.
X Remove the two screws on the left and right-hand
side of the front support.
X Push the front support up until it can be taken out
of the retaining lugs.
Securing the glass front
2
1
2
3
10x
Fig. 9.17 Securing the glass front
[1] Back of the BORA multi-drawer glass front
[2] Screw guides [x 10]
[3] Front support
X Lay the glass front face down on a soft surface.
X Be careful not to scratch the glass front in
doing so.
X Position the front support [3] on the back of the
BORA multi-drawer glass front [1] so that the
10 screw guides [2] are aligned.
X Using a screwdriver, attach the glass front to the
10 screw guides [2] on the front support [3].
Do not use a battery-operated screwdriver to
do this or the screws could be overtightened
(torque: 1.8 Nm ±10%).
X Only use the screws (DIN 7500 C M4 x 6 mm)
provided with the BORA multi-drawer glass front.
The use of other screws may cause the glass front
to break. This poses a risk of injury.
X Follow the installation steps under “Fitting the
front support” (see „9.5.1 Fitting the unit front“).
9.5.3 Completing installation
X Connect the appliance to the mains.
X If necessary, connect the communication cable to
the BORAXBO steam oven.
X Place the shelf rack in the drawer (only with
MS290/MSS290).
X Remove the protective film from the operating
panel.
Fitting the sealing lip (optional)
i
Particularly where condensation forms, or
if a fragile unit front or sensitive appliance
is installed above the multi-drawer, we
recommend fitting the sealing lip included in
the scope of delivery.
i
The sealing lip must be fitted when the drawer
is installed together with the BORAXBO
steam oven.
