34

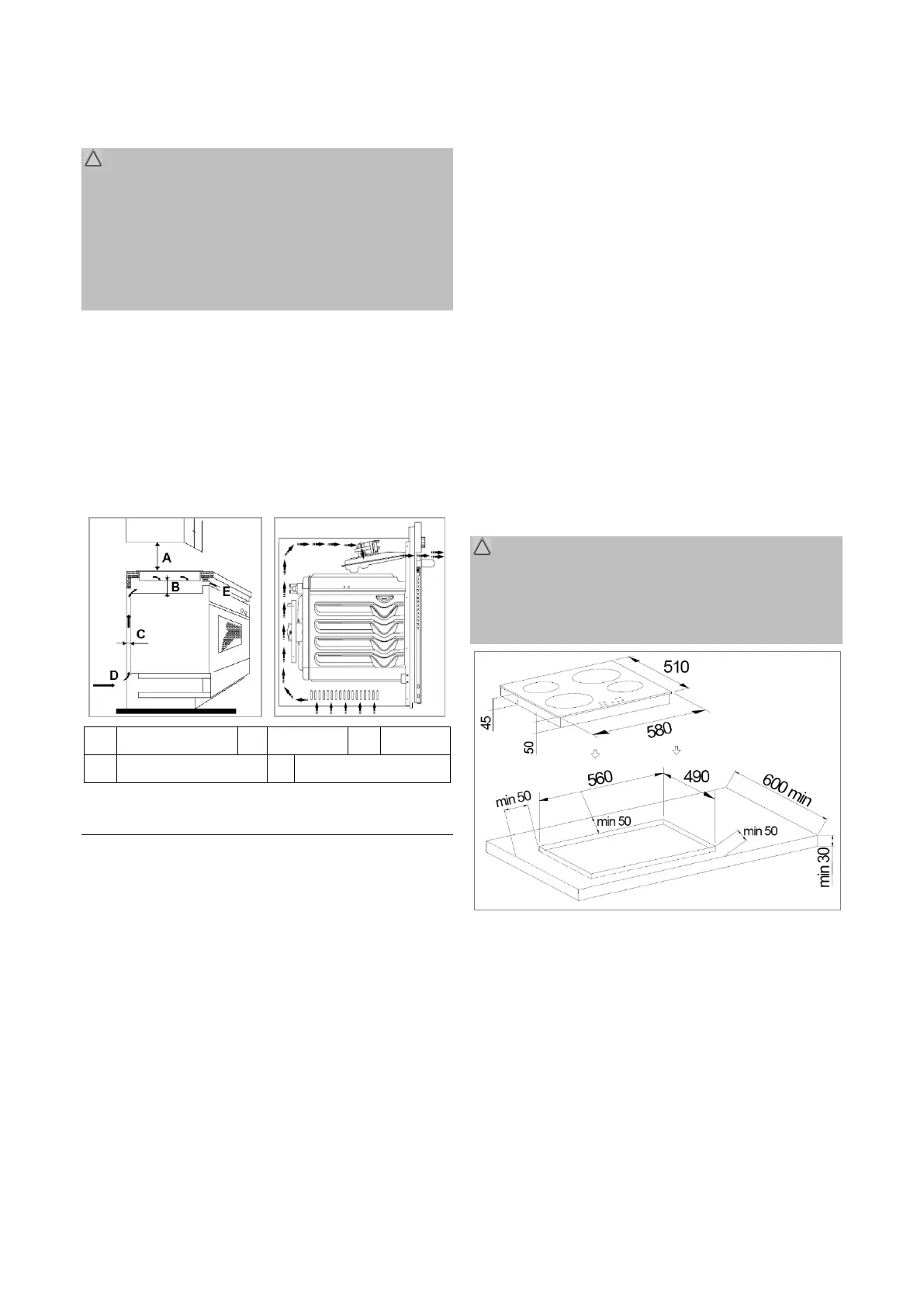

Safety distances
CAUTION:
Always ensure that there is sufficient air circulation
and that the ventilation openings remain unob-
structed. Prevent insulation of material, drawer back
panels or other components from restricting the air
flow to avoid damage to the electronics.
• There must be sufficient clearance behind the ap-
pliance to allow warm air to escape freely. The
rear panel of the cabinet should be fitted with ven-
tilation slots, if necessary.
• The distance between the hob and any overhead
range hood must meet or exceed the minimum
specified in the range hood’s installation manual.
A
min. 760 mm
B
50 mm
C
35 mm
D
Air intake 30 mm
E
Air outlet 5 mm
Installation of the hob
The hob measures 580 mm × 510 mm with a total
height of 50 mm (incl. 5 mm glass-ceramic surface).
The
installation height is 45 mm. It is mounted di-
rectly into the worktop and is powered and controlled
via the oven installed below it.
Requirements for the worktop
• The worktop must comply with the dimensions
shown in the drawing and be level and stable.
A
minimum thickness of 30 mm is required and
ideally be slightly thicker to ensure a stable and
secure base for the hob.
• The hob must have at least 50 mm clearance on
all sides of the cut-out, so it is surrounded by the
worktop. Avoid mounting directly next to tall cabi-
nets or walls and make sure there is sufficient
clearance so that e.g. pan handles can be moved
freely.
• A moisture barrier is required along the wall-fac-
ing edge, and all cut surfaces must be sealed with
special lacquer, silicone rubber, or resin to pre-
vent moisture damage.
• Ensure the area around the cut-out is clean and
completely dry before installing the hob.
Preparing the worktop
Prepare the opening in the worktop according to the
millimeter specifications provided in the drawing.
CAUTION:
Before sawing the cut-out, cover the outer edge gen-
erously with wide masking tape. This helps to pre-
vent scratches or marks caused by the jigsaw.
• Transfer the measurement to the center of the
worktop.
• Drill holes (approx. 10 mm diameter) in all four
corners to allow you to insert the jigsaw blade.
• Carefully cut out the opening. The previously ap-
plied adhesive tape will help to protect the surface
during sawing.
• Smooth the cut edges and apply a sealing agent –
especially important for coated chipboard or wood
surfaces.
