Set UP

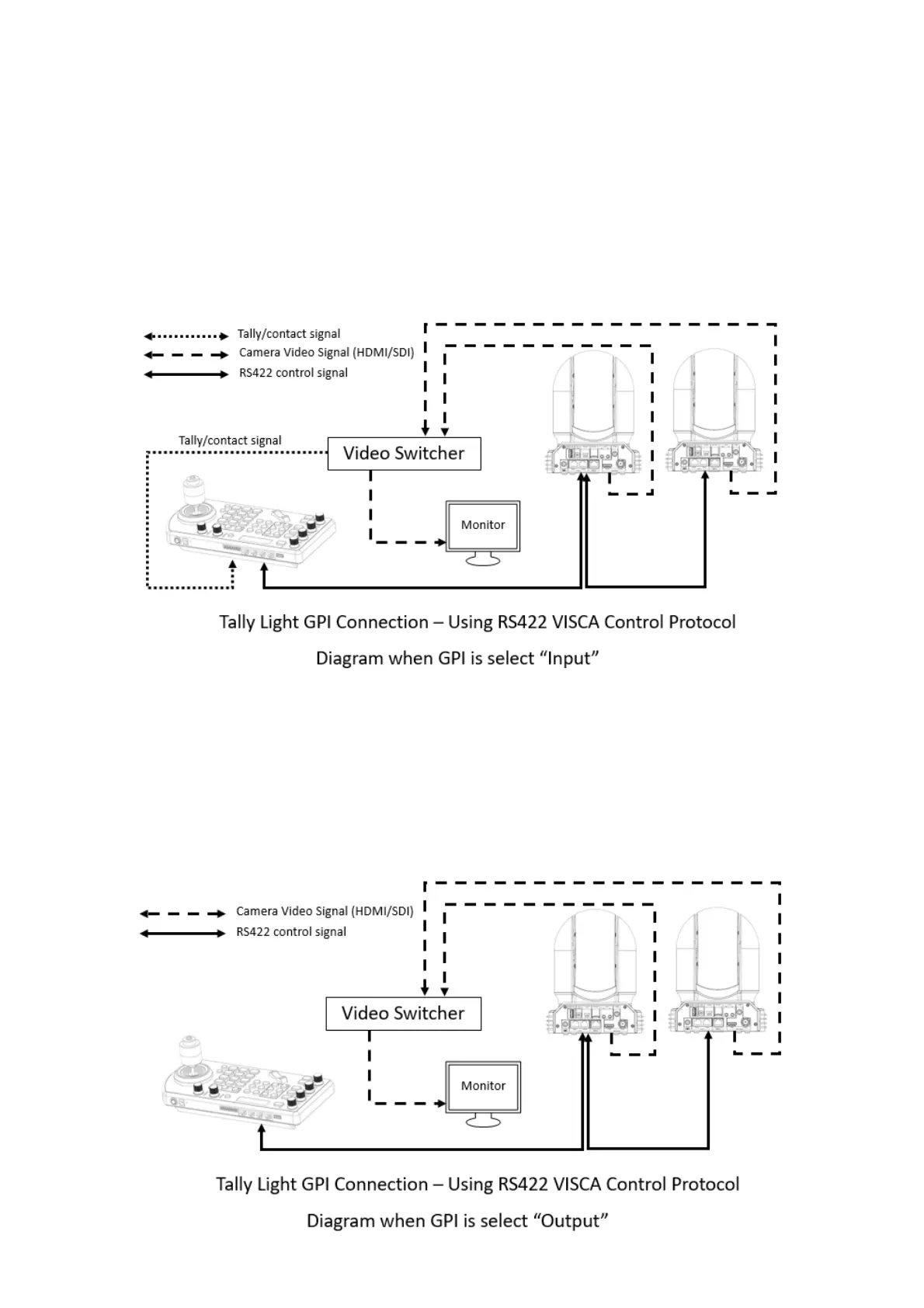

1. GPI I/O Input mode - Tally signal is sent by Video Switch
a. Connect camera with keyboard by standard RS-422 control cable.
b. Connect keyboard with video switch by tally function cable.
c. Access to KEYBOARD SETTING > GPI I/O > Setting, and change it to Input mode, then Exit to
home directory.
d. After done above operations, we can switch to different camera by video switch, for example, if
we switch to camera 1 on video switch, it will send tally signal to keyboard via the tally function
cable, and keyboard will transmit this tally signal to camera 1 via standard RS-422 control cable,
so camera 1 tally light will turn on, and keyboard can control camera 1 pan and zoom;
e. If switch to camera 2 on video switch, then camera 2 tally light will on and camera 1 tally light will
off.
2. GPI I/O Output mode -Tally signal is sent by Keyboard Controller
a. Connect camera with keyboard by standard RS-422 control cable;
b. Access to KEYBOARD SETTING > GPI I/O > Setting, and change it to Output mode, then Exit to
home directly;
c. After done above operation, we can switch to different camera by keyboard, for example, if we
switch to camera 1 on keyboard, it will send tally signal to camera 1 via standard RS-422 control
cable, so camera 1 tally light will turn on, and keyboard can control camera 1 pan and zoom;
d. If switch to camera 2 on keyboard, then camera 2 tally light will on and camera 1 tally light will off;
