NOTE: Use RS422 ports for RS485 connection. Only use TX+ and TX- for RS485 connection.
d) The RS232/RS422 serial port connection on controller side, please refer to the user guide of the
controller.
2. Use extension cables included to connect the RS232/RS422/RS485 control to the controller:

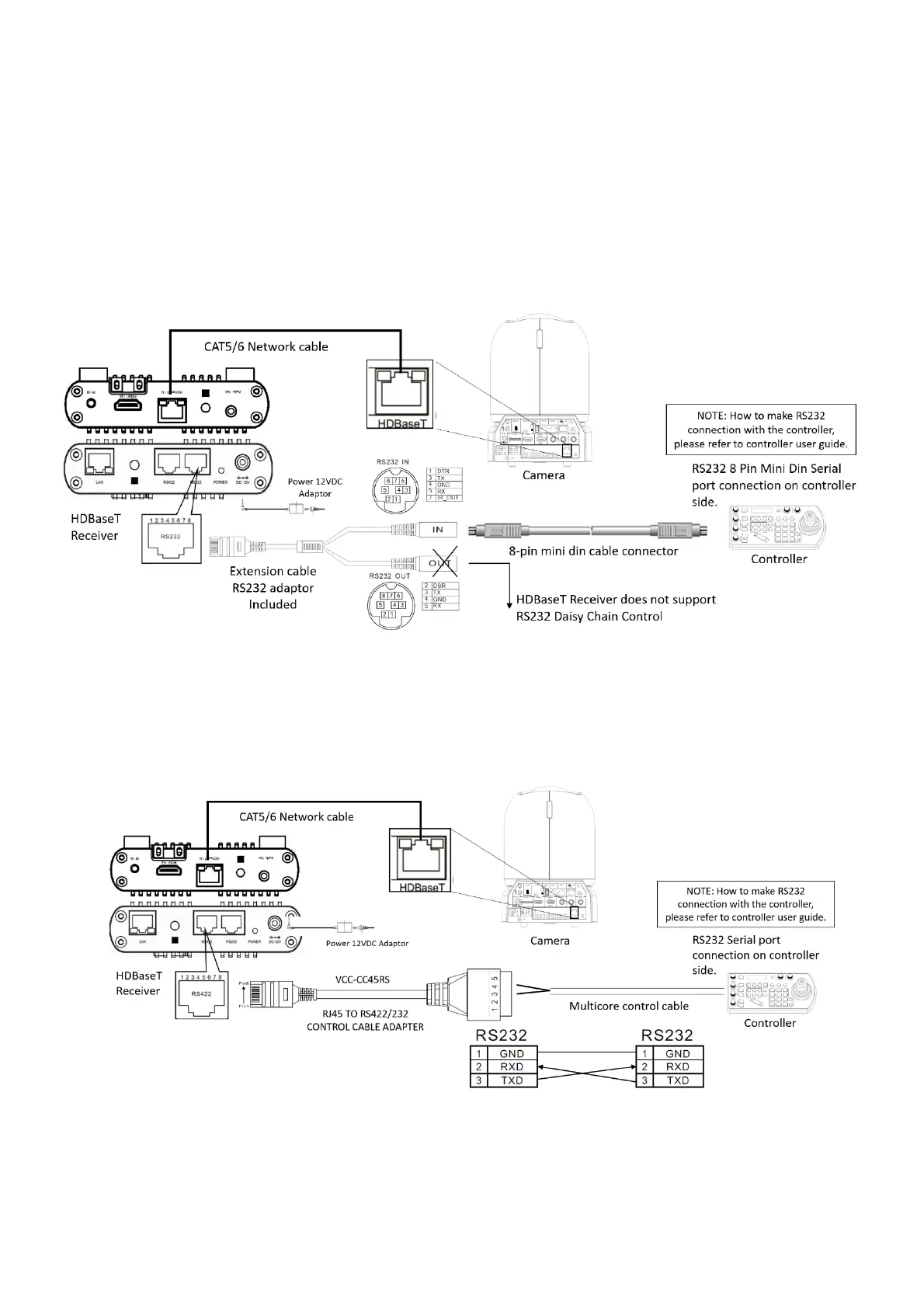

a) RS232 Connection: RJ45 to RS232 extension adapter cable. Use extension cables included to
make RS232 connection for your control device.
• You have to use 8-Pin Mini Din Serial RS232 Cable
• HDBaseT does not support RS232 daisy chain control. So only plug in to “IN” 8-pin Mini Din port
for RS232 control.
b) RS232 Connection: RJ45 to RS422/232 Phoenix terminal contact adaptor: Use extension
cables included to make RS232 connection for your control device.
