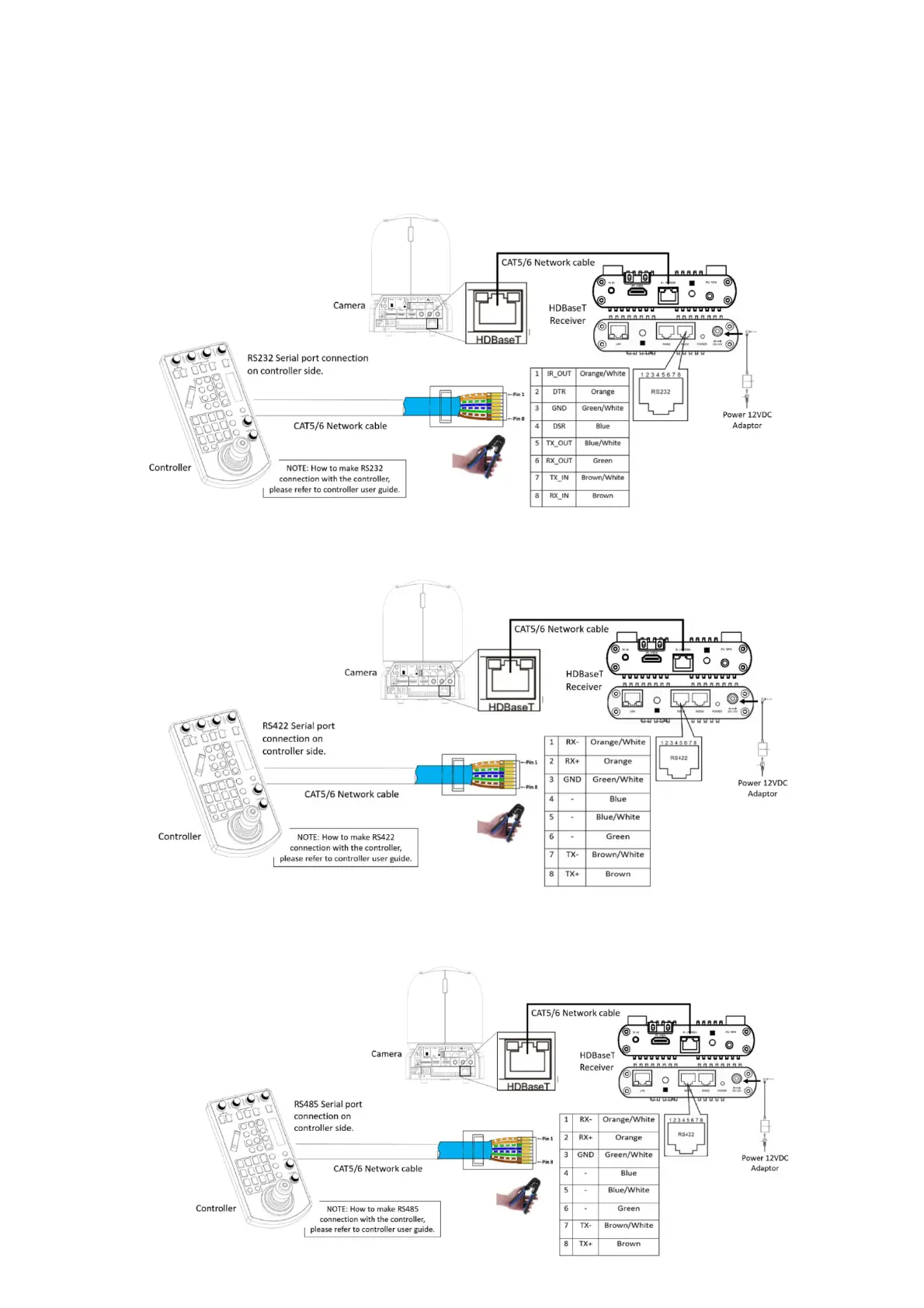

RS232/422 Connection between the HDBaseT receiver and the controller:

To make the RS232/RS422/RS485 control cable connection between the HDBaseT receiver and the controller:

1. Use CAT5/6 T-568B Standard Ethernet cable direct connect between the camera/HDBaseT Receiver

and the controller to make RS232/RS422/485 connection by following the pin definition below:

a) RS232: Make RJ45 connector for HDBaseT Receiver RS232 port as following:

b) RS422: Make RJ45 connector for HDBaseT Receiver RS422 port as following:

c) RS485: Make RJ45 connector for HDBaseT Receiver RS485 port as following:
